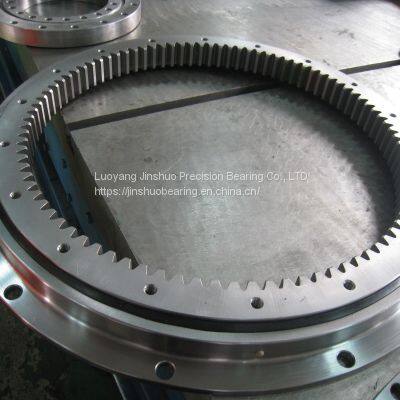

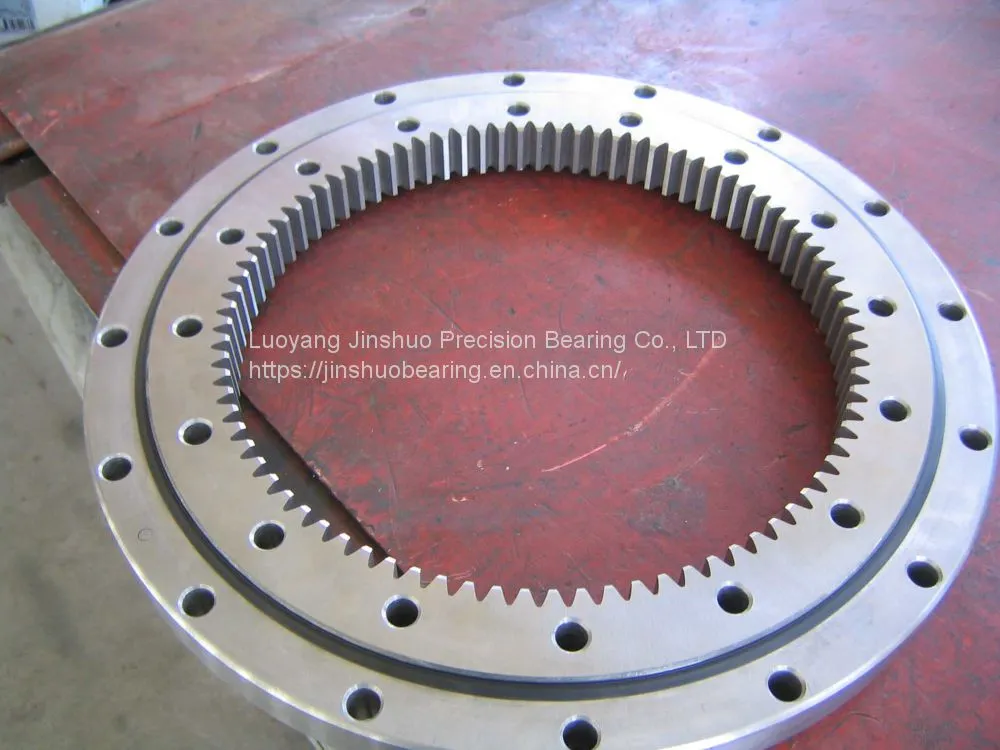

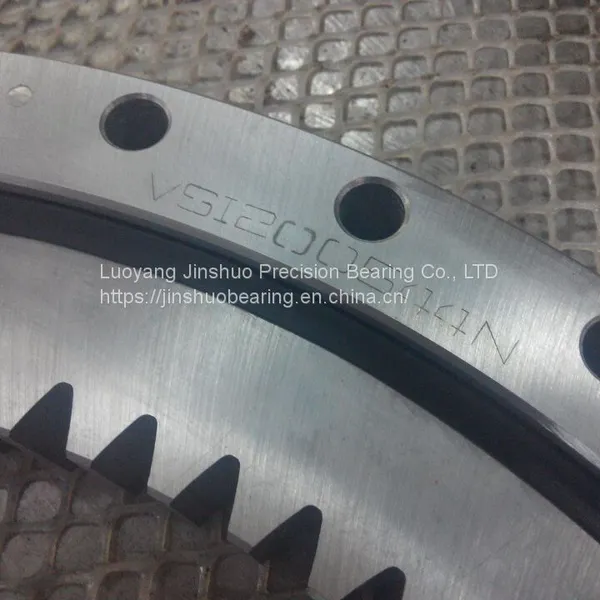

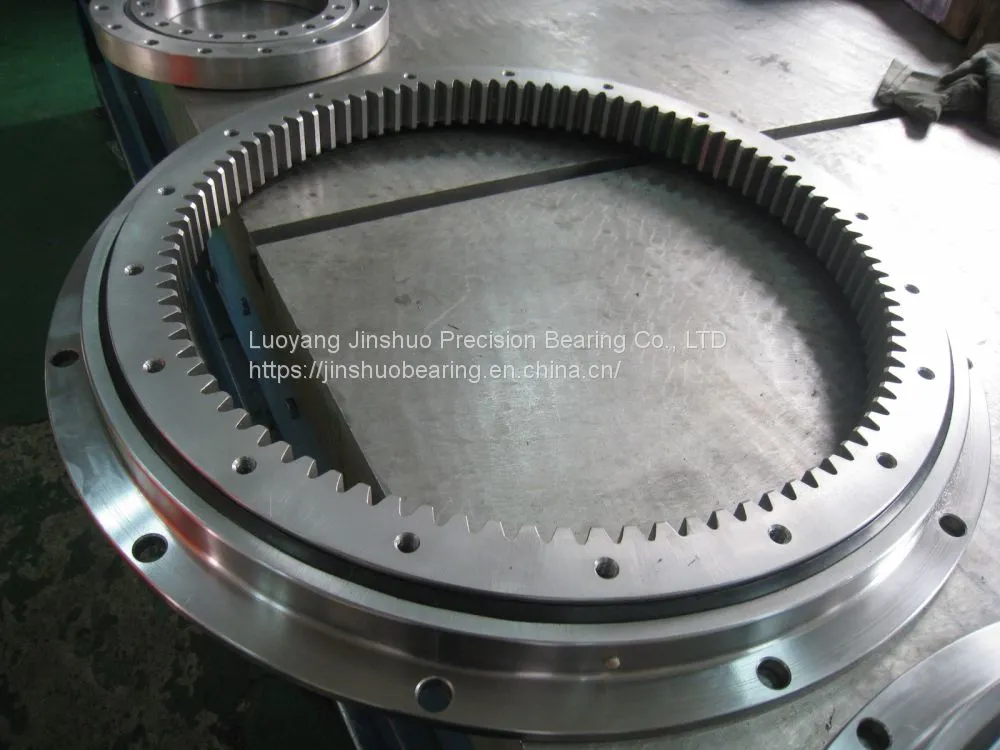

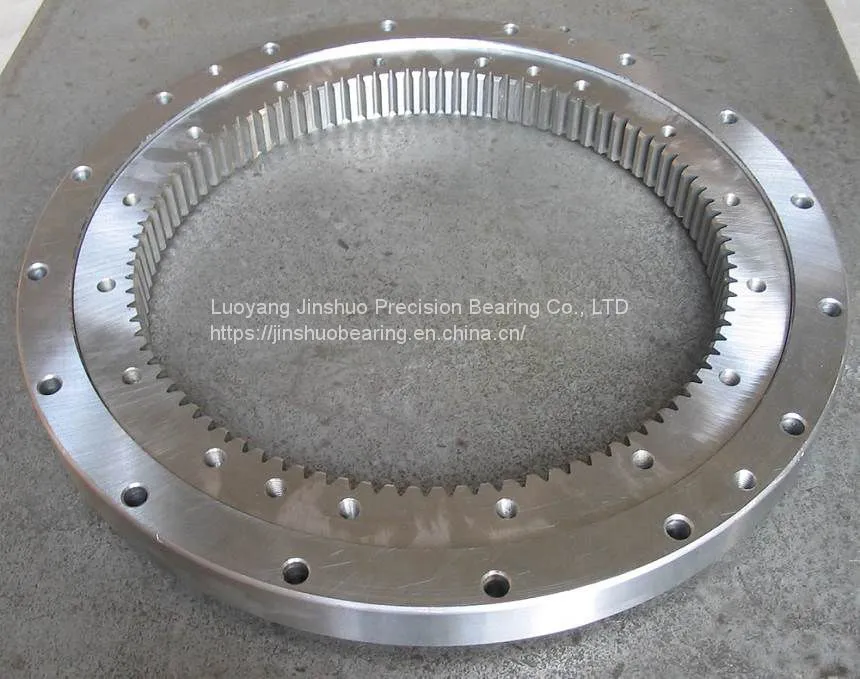

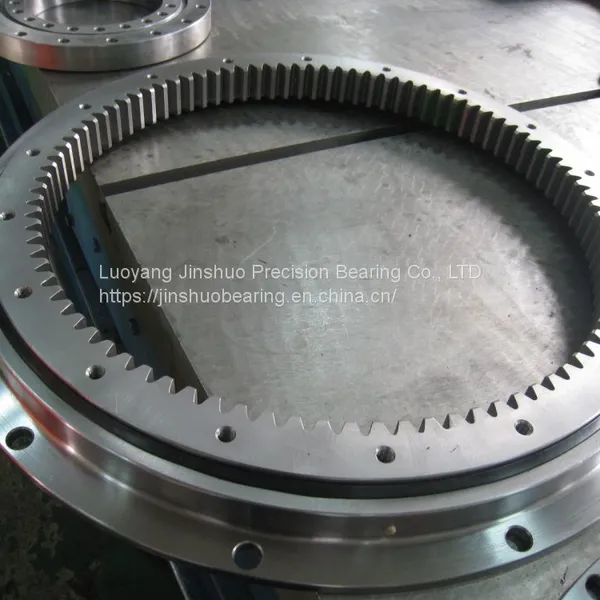

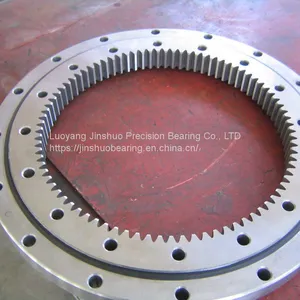

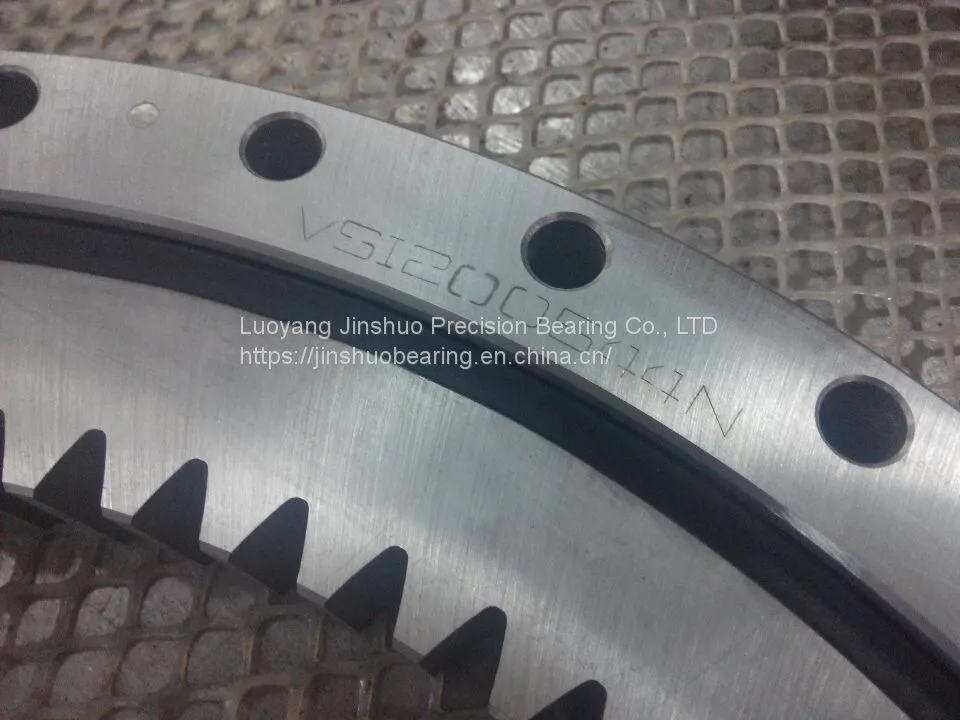

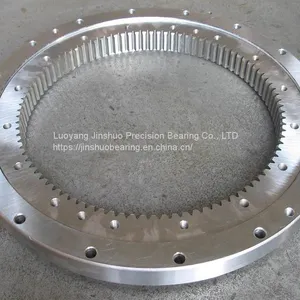

Band Conveyor use slewing bearing RKS.22 0741 848*649*56 MM with internal teeth
Bearing factory model:RKS.220741
China Bearing old type:RKS.22 0741
Bearing description:four-point contact ball slewing bearing
Original:Made in China
Bearing boundary Dimension:848X649X56 MM
ID(inner diameter)/:649 MM
OD(outer diameter):848 MM
Width/Height/thickness:56 MM
Weight:55 KGS
Quality standard:GB307 Rolling bearing technical requirement
Service:We can provide technology consultation and products selection for customers in many ways.
Precision grade:P5 P6 grade
Material 42CrMo, 50Mn
Rolling ball brand LYC ball
Teeth parameter
d0=660mm
m=6
z=110
Basic load rating C :(KN) 211
Basic load rating Co:(KN) 524
The delivery time:20-30 days
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
The seaport name:Shanghai or Tianjin or qingdao seaport
Outer Ring and Inner Ring heat treatment:HRC55-62
Bearing boundary inch size:33.38x25.55x2.20
Bearing outer diameter inch:33.38 inch size
Bearing inner diameter inch size:25.55 inch size
Bearing height inch:2.20 inch size
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
The bearing working speed:900rpm
HS code:8482100090
Payment term:T/T or L/C at sight
Shipping term:by sea or by air
Package: strong wooden case
