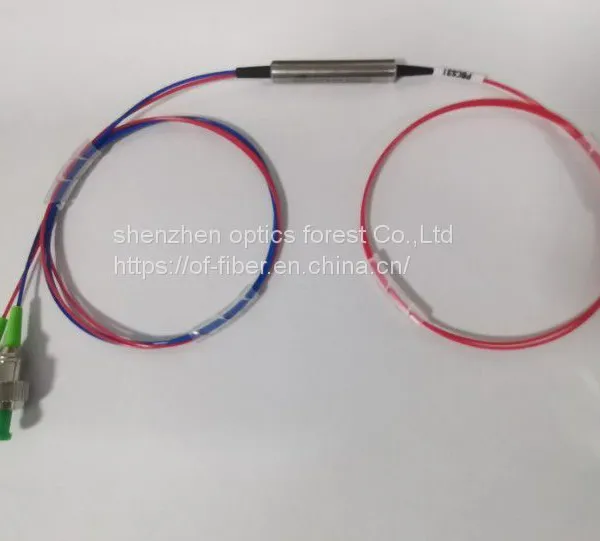

Multimode Fiber Filter Coupler 62.5/125
US$ 100 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OF
Place of Origin:
China
Model Number:
0014
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
1060nm Fiber Inline PolarizerUS$ 50 - 300MOQ: 1 Piece -
Filter Type WDM (1310/1550, 1480/1550, 850/1310 FWDM)US$ 1 - 500MOQ: 1 Piece
-
750/780/850/890nm Single Mode Standard CouplersUS$ 150 - 1000MOQ: 1 Piece
-
Single Window Standard Monolithic 2X4 Fiber Coupler 1310nm Or1550nmUS$ 20 - 2000MOQ: 1 Piece
-
1000W High Power FBG for Fiber Laser 1018/1064/1070/1080nmUS$ 300 - 1500MOQ: 1 Pair
Brand Name
OF
Place of Origin
China
Model Number
0014
Specifications
Parameter Unit Value
Center Wavelength (λc) nm 1550
Operating Wavelength Range nm λc ± 20
Configuration 1 × 2 or 2X2
Max. Excess Loss dB 0.8
Max. Uniformity (only for 50%) dB 0.6
Tap Ratio % 1 ± 0.5, 5 ± 1.5, 10 ± 2.0, 20 and 50
Min. Return Loss dB 30
Max. Polarization Dependent Loss dB 0.15
Max. Average Optical Power W 3
Operating Temperature ℃ -5 to +70
Storage Temperature ℃ -40 to +85
