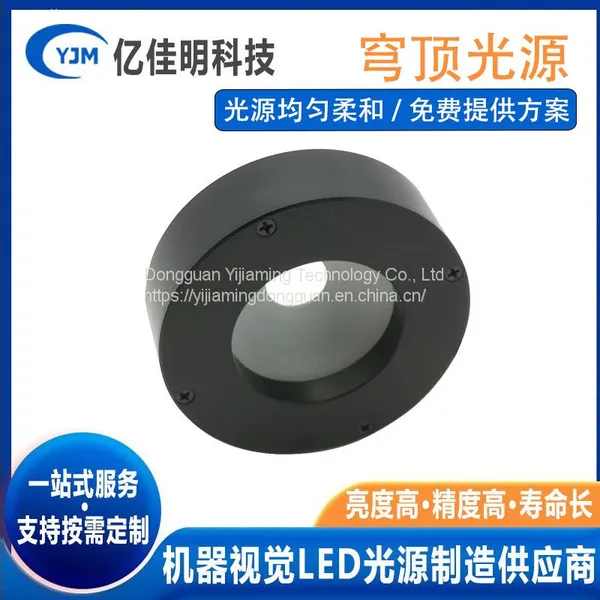

Help CenterMachine Vision LED Dome Diffuse Reflection Bowl Shaped Sphere Integral Dome Shadowless CCD Detection of Highly Uniform 24V Light Source
Related Products
-
Machine Vision Dome Light Source Dome Light Source Bowl Shaped Shadowless Light Source Automatic Detection Light Source CCD Light SourceUS$ 60 - 180MOQ: 1 Bag -
Machine Vision Dome Light Source Dome Bowl Shape Detection Metal Glass Curved Sphere Reading CodeUS$ 60 - 180MOQ: 1 Bag
-
Machine Vision Ball Integral Light Source Bowl Light Source Dome High Uniform Diffuse Reflection Eliminates Surface UnevennessUS$ 60 - 180MOQ: 1 Bag
-
Bowl Shaped Light Source Machine Vision Industrial Inspection Dome Diffuse Reflection High Uniform Curved Surface Anti Reflective Dome Light SourceUS$ 60 - 180MOQ: 1 Bag
-
Machine Vision LED Bowl Light Source Dome Dome Shadowless Light Source Automated Curved High Reflective Detection Light SourceUS$ 60 - 180MOQ: 1 Bag
Dongguan yijiaming Technology Co., Ltd., founded in June 2020, is a manufacturer specializing in the research, development, design and production of machine vision light sources. In machine vision, the company has completed visual defect services for many large-scale projects. The company mainly produces ring light sources, shadowless light sources, AOI light sources, spherical integral light sources, strip light sources, strip combined light sources, coaxial light sources, side light sources, area light sources, backlights, point light sources, prisms Linear light source, analog controller, digital controller, linear light controller and other products can be customized according to the situation.
Application scope:
1. Detection of defects such as scratches and bubbles on the surface of highly reflective objects
2. Mark point positioning
3. QR code recognition
4. Dimensional measurement
5. Character, QR code, pattern recognition
Product Features
1. Adopting an integrated shell for more efficient heat dissipation
2. Special coated optical spectroscope without ghosting
3. High density LED arrangement with uniform brightness
4. Flexible adjustment of brightness and color temperature for the same size
The circular light source is composed of a high brightness LED array designed through structural optimization, with stable performance and convenient installation. Directly applying different illumination angles and color combinations to the tested object can avoid the phenomenon of shadow exposure,
Detailed description: This product has the advantages of low heat generation, soft and natural lighting without flicker, no distortion of light color, long service life, energy conservation, compact and beautiful appearance, easy installation, etc. It uses a new imported plastic injection molded power shell, which is aging resistant, flame retardant, and has anti-static treatment for the lampshade. This product has a total of 96 LEDs evenly distributed on three circles
Product parameters:
Ring light power supply housing size: (length 110 X width 60 X height 32) mm
Outer diameter size of circular lamp cover: Φ 68mm
Inner diameter size of circular lamp cover: Φ 50mm
Thickness dimension of circular lamp cover: 35mm
Ring lamp power: 4W
Input voltage: 90V-264V
Output voltage: DC12V
Brightness adjustment: 0-100
Brightness: 100mm
Above 15000LUX in height
Working distance: 30-250mm
LED light emitting tubes: 96 pieces
Luminous color: determined according to user needs, conventional white light 6400K
Application scope:
● Detect printed characters on the IC chip;
● Detect components on the circuit board;
● Check the bottom of the pigment container;
● Detection labels;
● Detection of markings on liquid crystal glass substrates;
● Detection of missing tablets and particle damage in board loading;
● Detection of bearing surface damage, etc;
We can customize circular light sources with different specifications, sizes, and colors according to customer requirements.
