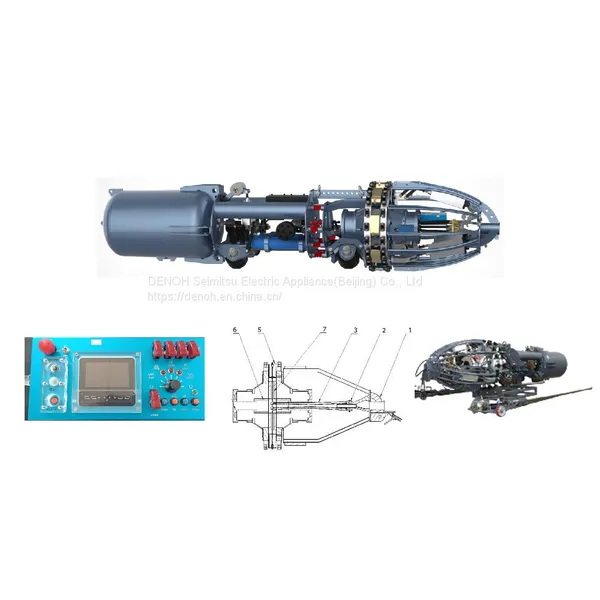

Help CenterDENOH Oil and Gas Pipeline Full Automatic Welding Machine,DW48/56-8H Internal Welding Equipment, Pneumatic Torch Lifting Suitable for Pipe Diameters 1219-1422mm (48-56 Inches)
Related Products
-
DENOH Oil and Gas Pipeline Automatic Internal Welding Machine,Mountain Flexible Internal Welding Machine DW28-4H Internal Welding Equipment, Suitable for Pipe Diameter of 711mm (28 Inches)NegotiableMOQ: 1 Unit -
DENOH Mountain Flexible Internal Welding Machine DW32/36-6H Oil and Gas Pipeline Mountain Internal Welding Equipment, Suitable for Pipe Diameter Ranging From 813mm to 914mm (32 to 36 Inches)NegotiableMOQ: 1 Unit
-
DENOH Oil and Gas Pipeline Mountain Flexible Internal Welding Machine DW48/56-8H Internal Welding Equipment, Suitable for Pipeline Diameters of 1219-1422mm (48-56 Inches)Electro Hydraulic DriveNegotiableMOQ: 1 Unit
-
DENOH Oil and Gas Mountain Flexible Internal Welding Machine DW36/40-6H Mountain Internal Welding Equipment Suitable for Pipe Diameter Ranging From 914mm to 1016mm (36 to 42 Inches)NegotiableMOQ: 1 Unit
-
Denoh Piple Line Automatic External Welding Machine,Welding Robot,Gas and Oil Pipe Automatic WelderNegotiableMOQ: 1 Set
1.Multi-purpose technology for one machine
One model can be used for two pipeline diameters.
2.Bottom four wheels
Taking full advantage of the high stability and maximum power of the high-torque motor, which can reach up to 16 horsepower.
3.Compressed air lift torch technology for welding unit
The technology saves shielding gas, reduces the consumption of shielding gas, and prolongs the replacement period of shielding gas cylinders, making maintenance more convenient.
4.Transmission within pneumatic and electric Cables
The pneumatic and electric cables are laid and transmitted inside the hollow core expansion reel, simplifying external wiring, facilitating maintenance, and reducing cable wear.
5.Electrical control unit of intelligent controller
High-speed transmission in a bus format, with a multifunctional human-machine interface for convenient data detection and diagnosis. Special functions can be upgraded through Bluetooth.
Parameters:
1. Power Type: Pneumatic
2. Applicable Pipeline Diameter: φ1219～φ1422
3. Number of Welding Units: 8
4. Travel Speed: 0～70m/min
5. Climbing Ability: ≤20°
6. Maximum Bend Angle: 15°(40D)
7. Welding Time: ≤90S
8. Rated Working Pressure: 0.8～1.2MPa
9. Weight: 2300kg
10. Overall Dimensions: 5500×1250×1300mm
11. Applicable Wall Thickness: 10～35mm
12. Applicable Altitude: ≤4000m
13. Applicable Temperature: -40℃～65℃
14. Main Air Tank Capacity: 0.9m³
15. Protection Gas Tank Capacity: 20L
16. Expansion Boot Quantity: 20×2 groups.
