Product Introduction

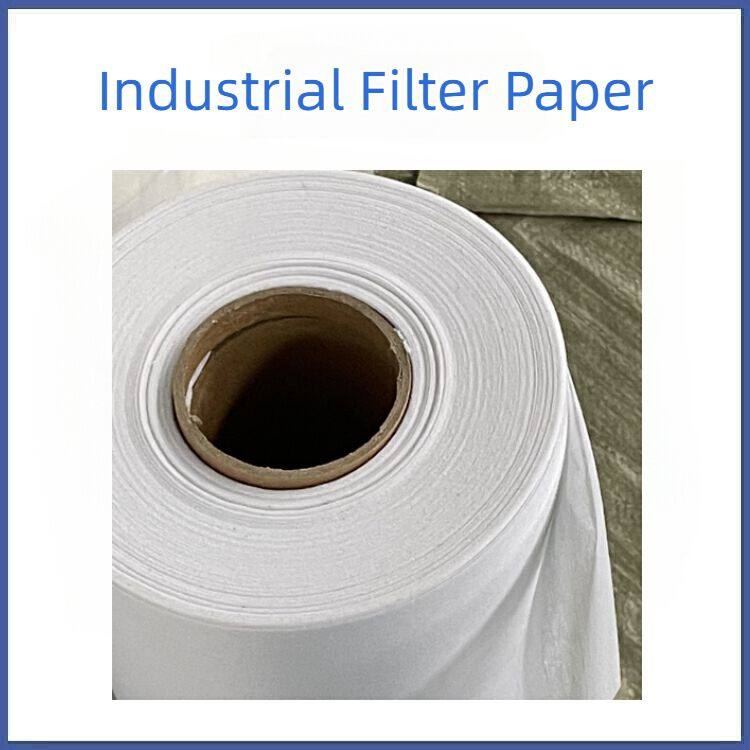

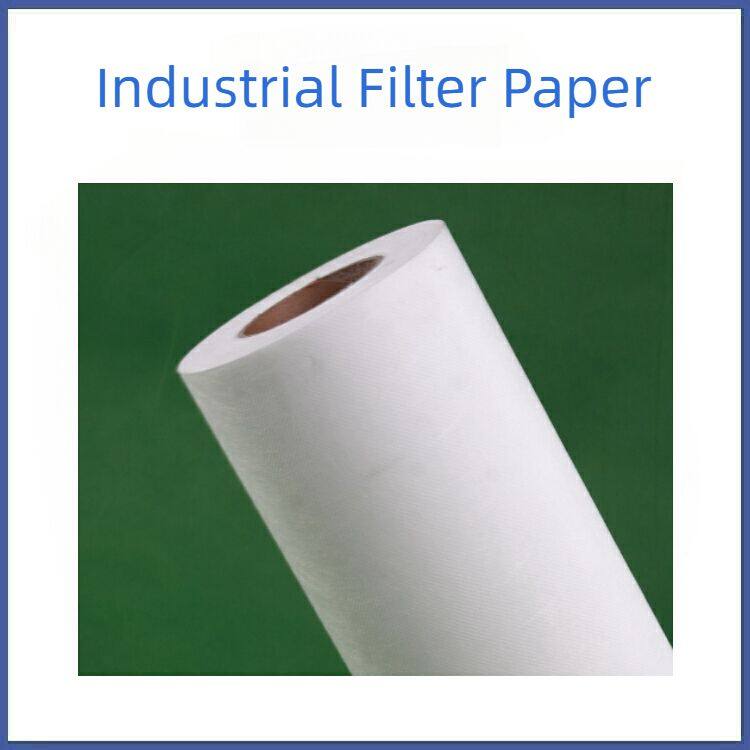

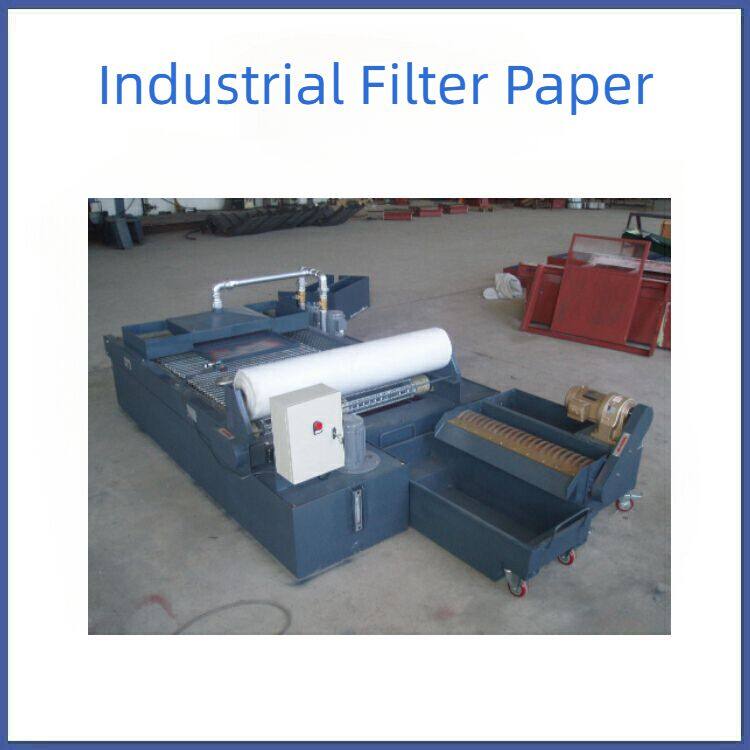

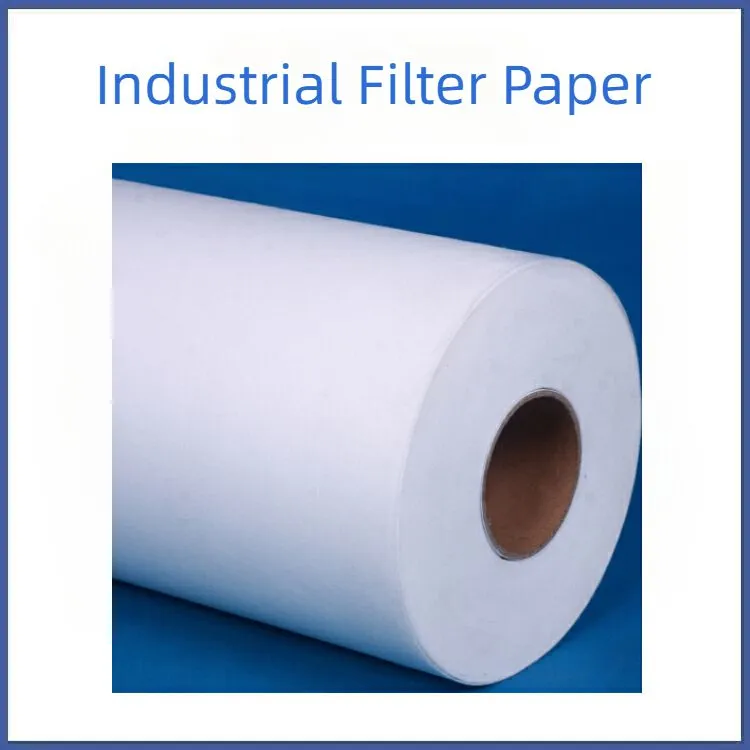

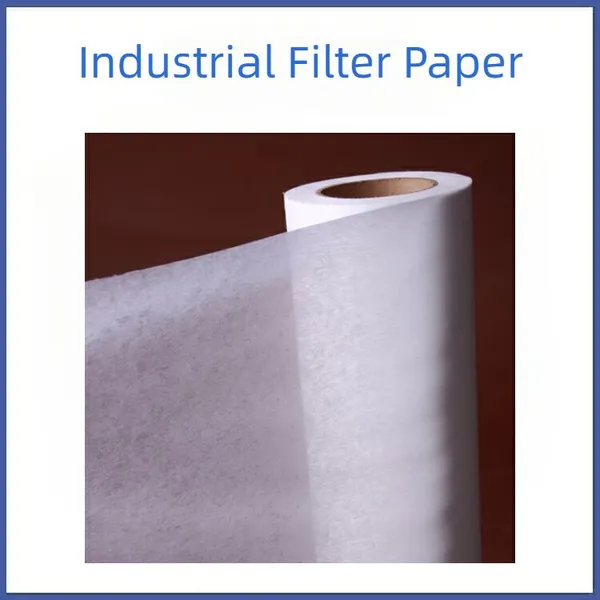

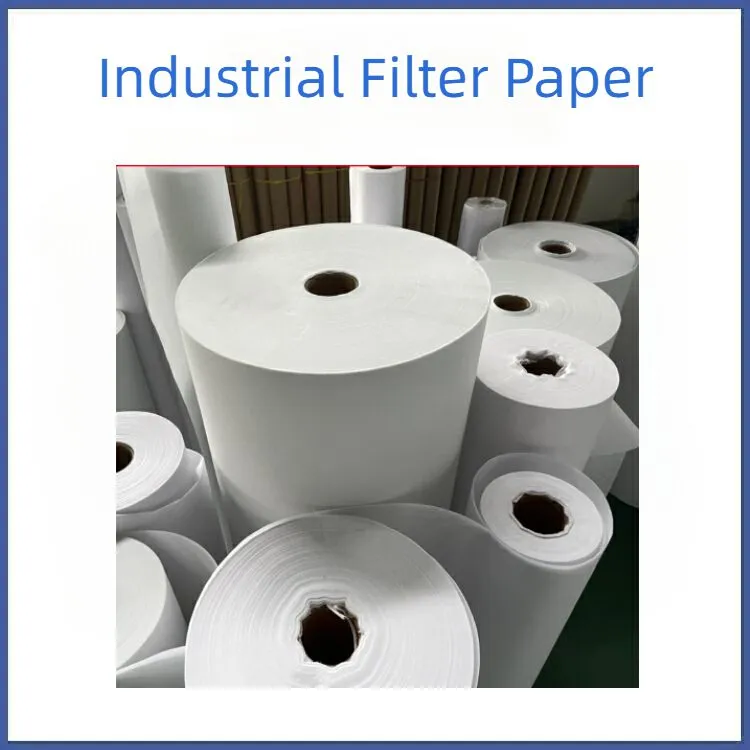

Polishing machine filter paper, also known as filter paper tape, is suitable for various machine tool coolant filtration systems such as gravity type, pressure type, vacuum negative pressure type, etc., specifically for gravity type flat bed paper tape filter, drum type paper tape filter, deep bed paper tape filter, positive pressure filter, vacuum negative pressure paper tape filter, etc. It can also be used in drilling, turning, milling and other processing processes. The use of filter paper varies depending on the type of filter used. Filter paper varies depending on thickness, weight, material, breathability, filtration accuracy, etc. We usually recommend accurate and suitable cutting fluid filter paper models based on the customer's on-site situation.
Polishing machine filter paper is suitable for filtering industrial oils such as metal cutting fluid, grinding fluid, drawing oil, rolling oil, grinding fluid, lubricating oil, insulation oil, etc
Characteristics of Polishing machine filter paper:
High tensile strength and low coefficient of variation. Advanced mesh forming technology and molding reinforcement are used to enhance and stabilize the tensile strength, maintaining the consistency between the initial strength and the strength used.
The combination of polyester fiber and polymer membrane is used for high filtration accuracy and efficiency, and the selected filtration material can meet the precision requirements specified by the user.
The filter material is not corroded by cutting fluid, does not change the chemical properties of the cutting fluid, and can be used normally within the range of -40 ºC to 120 ºC.
The selected filtering material can withstand the mechanical forces and temperature effects of the filtering equipment, and the wet fracture strength of the filtering material used for cutting fluid will not decrease.
It is required that the filtration material has a high porosity, low filtration resistance, and a large throughput. At the same time, it requires a strong pollutant capacity, which can improve filtration efficiency, extend service life, reduce filter material consumption, and reduce filtration costs
The technical parameters of Polishing machine filter paper are as follows
| thickness(mm) | Qiangli Zong(N/5cm) | Strong horizontal(N/5cm) | Breathability(L/m2S) | Filtration(um) |
| 0.17-0.20 | 60 | 15 | 3400 | 50-60 |
| 0.20-0.23 | 58 | 15 | 3200 | 40-50 |
| 0.25-0.27 | 100 | 20 | 3000 | 35-48 |
| 0.26-0.28 | 85 | 22 | 2700 | 34-45 |
| 0.26-0.30 | 130 | 40 | 2300 | 22-33 |
| 0.30-0.35 | 110 | 33 | 1900 | 15-25 |
| 0.39-0.41 | 190 | 55 | 1800 | 10-18 |
