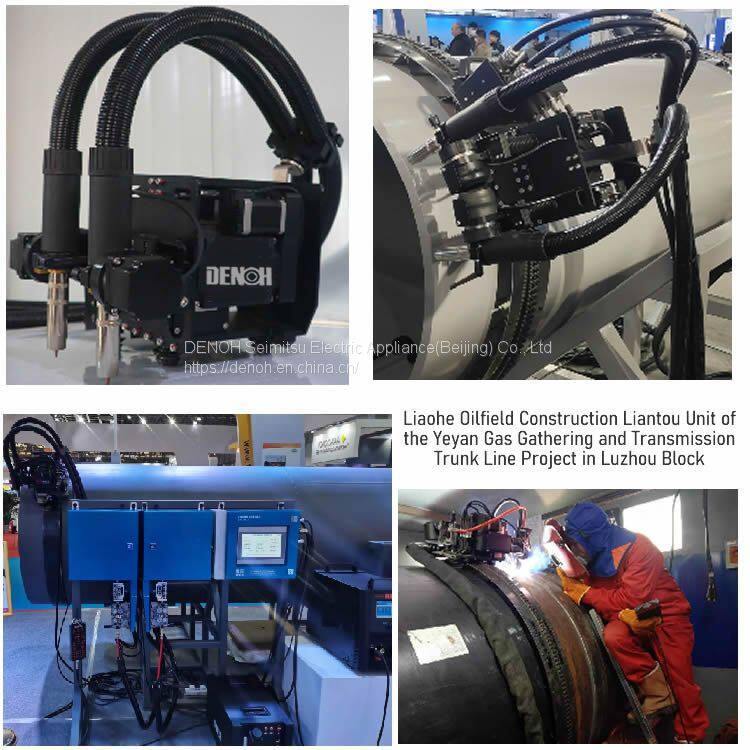

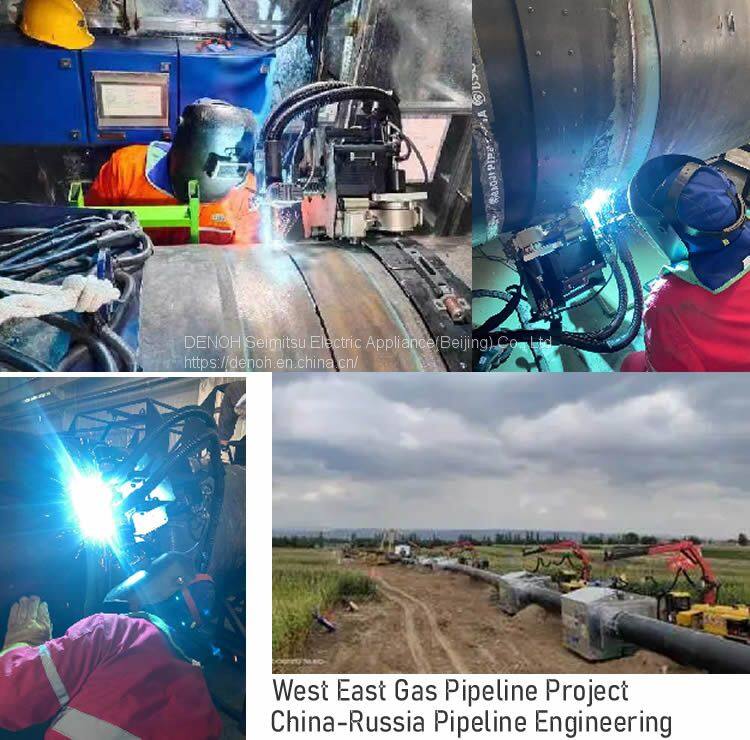

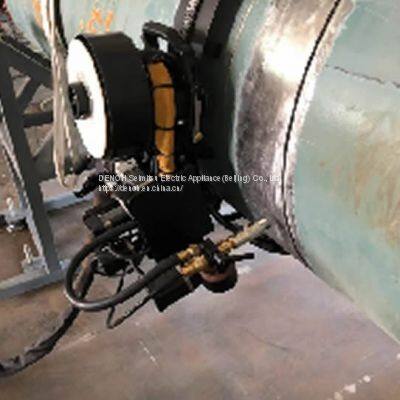

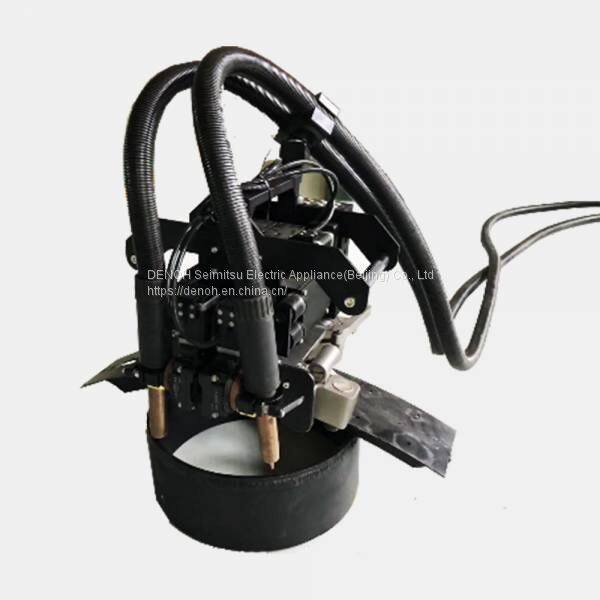

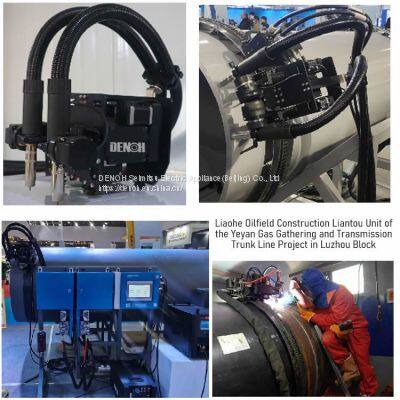

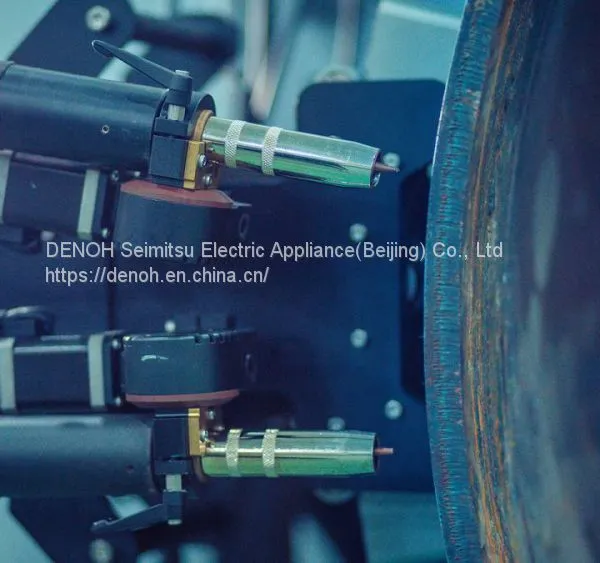

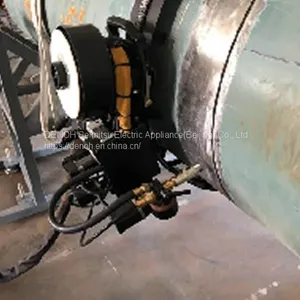

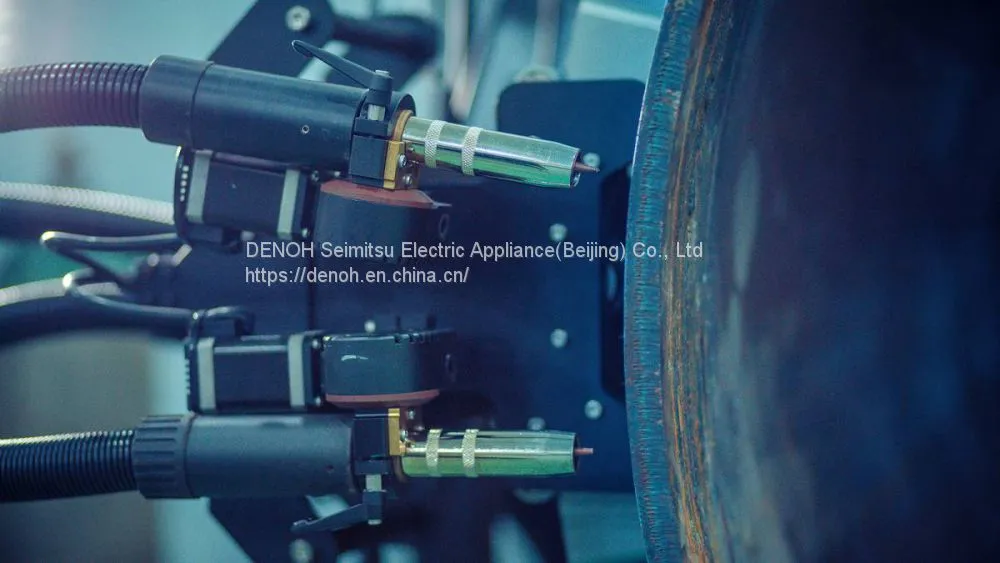

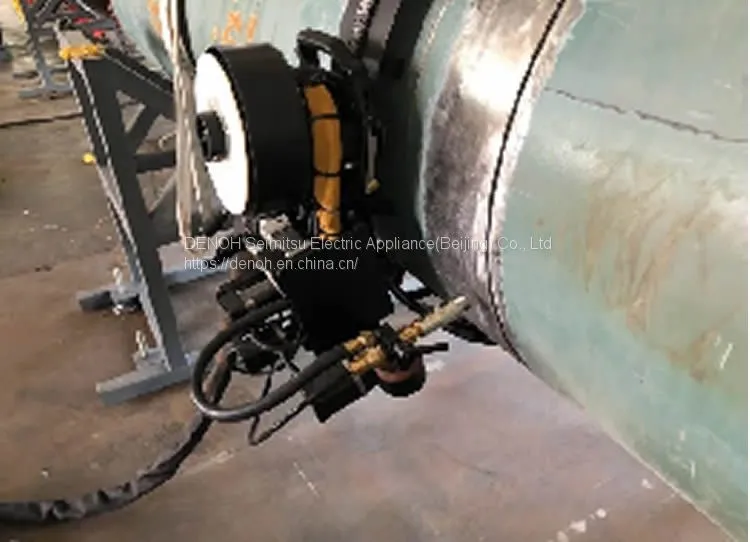

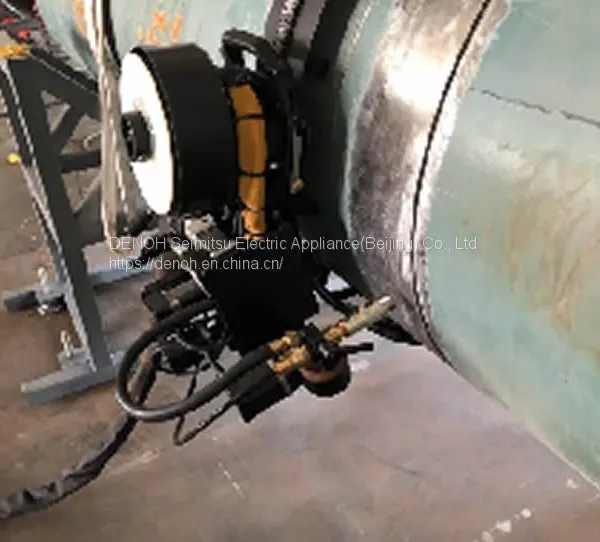

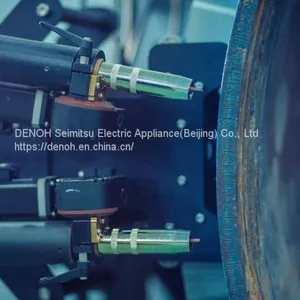

DW-EW-II Dual Torch Full Automatic Pipeline External Welding Machine.Welding Robot.Long Pipe Line Welder

1.Adopting visual touch screen for the welding parameter setup,display,revise and storage.Support data upload and download.The system can do storage and calling for multi-kinds of process parameter.The adjusting interface is humanized and convenient.

2.Welding consume meterials and accessories designed as unified standard,has extrem generality.

3.Convex and concavie hierarchical design of handle box,the button press function is independently,It’s easy to operate and quick for workers to get started.

4.Pipeline Dual torch automatic welding machine control box and welding power supply adopts digital signal controlling.The control is more accurate,Powerful anti-interference ability,It is more stable.

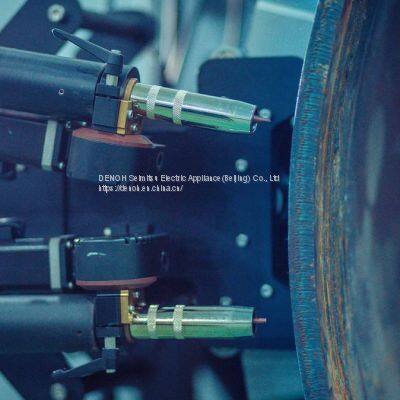

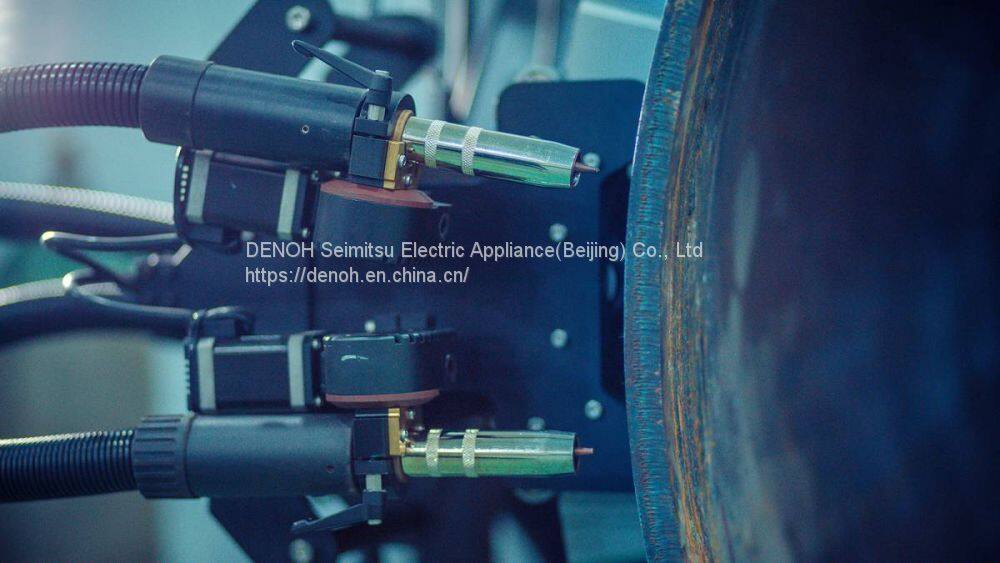

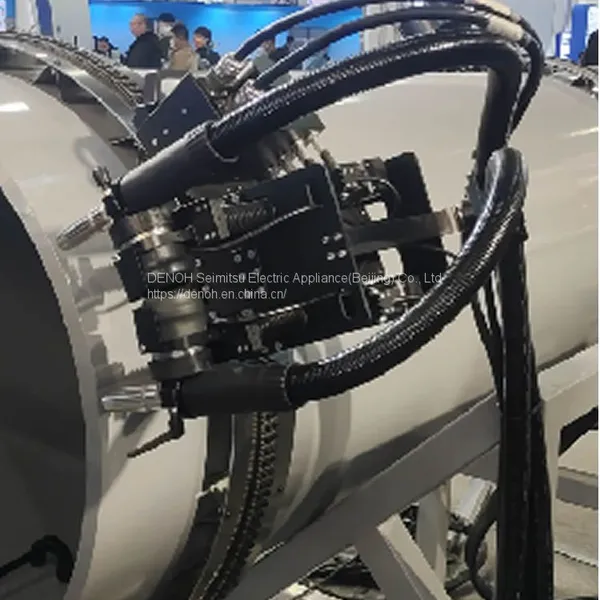

5.The straight swing and angle swing of the welding torch could be switched freely.It can achieve one machine multi-kind welding form.Improving welding pass rate among different welding process.And single trolley could smartly switch left and right position on small pipeline.

6.The rail is made of flexible steel.It has feature of strong rigidity,light weight,convenient transportation.Welding trolley gear and rack meshing running,the moving accurancy is higher.And the rack could be exchanged separatedly.The service time is longer,and using spliting type circular fast installation structure.It is easier to installation.

7.Equipped with an arc tracking system,Non-need human intervention.Automatically finishing full position welding width and height control of pipeline.

Parameter

1.Walking Speed:                              0-1100mm/min

2.Wire Feeding Speed:                      0-12000mm/min

3.Left-Right Travel of Welding Gun: 0-50mm

4.Up-Down Travel of Welding Gun: 0-40mm

5.Swing Adjustment Angle:              ±60°

6.Swing Mode: Straight swing/Angle swing

7.Swing Speed:                                0-4000mm/min

8.Dimensions (mm):                      490*380*320

9.Weight:                                       13.5kg

10.Drive Mode:                             Gear meshing transmission

11.Adaptation Temperature:         - 40℃～65℃

12.Adaptation Pipe Diameter:        Above φ168mm

13.Adaptation Air Humidity:          ≤90%

14.Adaptation Altitude:                   ≤4000m

15.Supported Welding Processes:   Upward welding, Downward welding MAG, MIG(Advanced technology.No other supplier can achieve )
