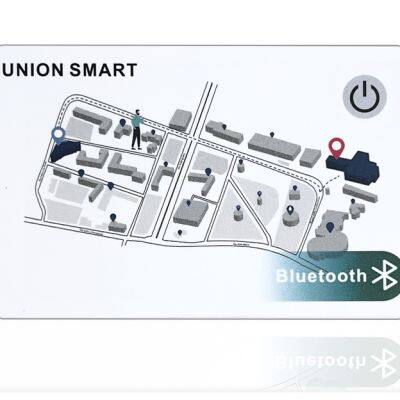

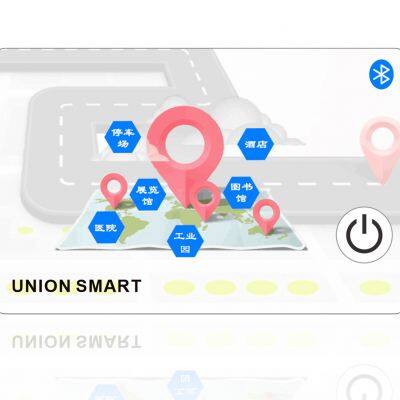

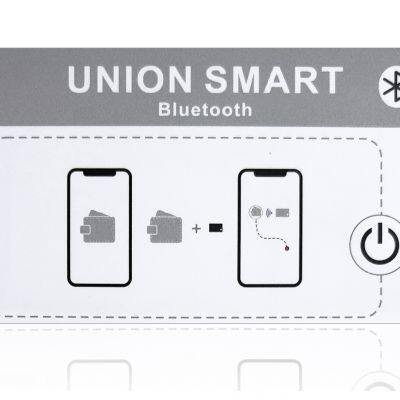

UWB Low Energy NRF52832 Bluetooth BLE iBeacon Card in Campus Nursing home and Hospital

Name: UWB Low Energy NRF52832 Bluetooth BLE iBeacon Card in Campus Nursing home and Hospital
Brand: Union smart
Price: USD $12 - 18 / Piece

FOB Price

USD $12 - $18 / Piece

100 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Payment Terms:T/T L/C PayPal Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

Union smart

Place of Origin:

China

Product Description

UWB Low Energy NRF52832 Bluetooth BLE iBeacon Card in Campus Nursing home and Hospital

Why choose us ?

1,OEM/ODM Manufacturer
2,National High-Tech Enterprise
3,Passed SQP,ISO9001,GRS RoHS Certification
4,Strong Supply Chain, Fast Delivery

5,Leading RFID Industry for 12 Years

6,More than 15 Items of Invention Patent

Product description

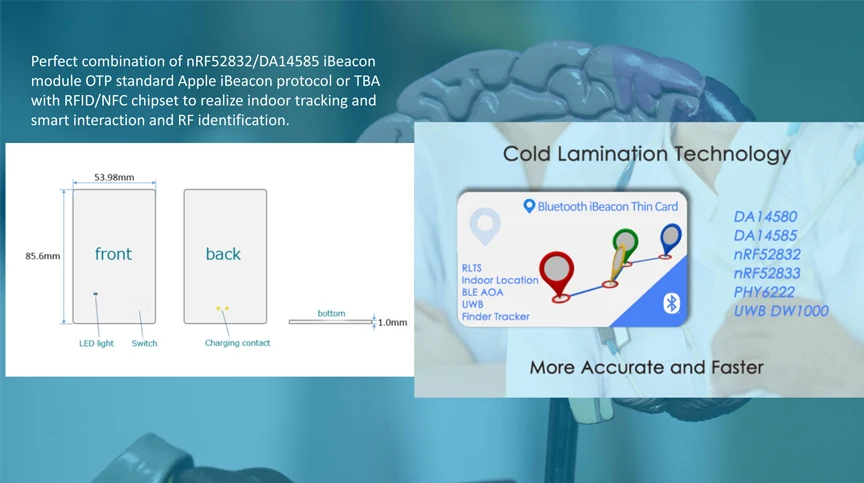

Perfect combination of DA14585 iBeacon module OTP standard Apple iBeacon protocol or TBA with RFID/NFC chipset to realize indoor tracking and smart interaction and RF identification

Advantages

1. The DA14585 SoC used in the rechargeable active BLE card has all the advantages of the industry-leading DA14580 and provides greater flexibility.

2. Ability to develop more advantageous products with minimum size and power.

3. At present, there are mainly wired charging / wireless charging methods, which support standard iBeacon protocol or private protocol customization.

Technical Parameter
BLE protocol	BLE5.0
Transmit power	4dBm (-20--4dBm)
Broadcast time	500ms (default) can be set
Transmission distance	25m
Button function	Press the button once to wake up the BLE card Press again, switch off the BLE card;
LED light	Charging process: LED red light is switch on Full charge: LED green light switch on BLE card wake up: LED blue light flashes once; BLE card sleep: LED blue light flashes twice;
Sound (buzzer)	greater than 70dB
Battery capacity	100mAh
Low battery switch off	support
Low battery LED reminder	support
Charging mode	wireless charging (support Qi1.2.3 and above wireless charging standard protocol), wired charging
Battery detection	support
Use time on one charge	above 90 days (0dBm, 500ms)
