Product Description

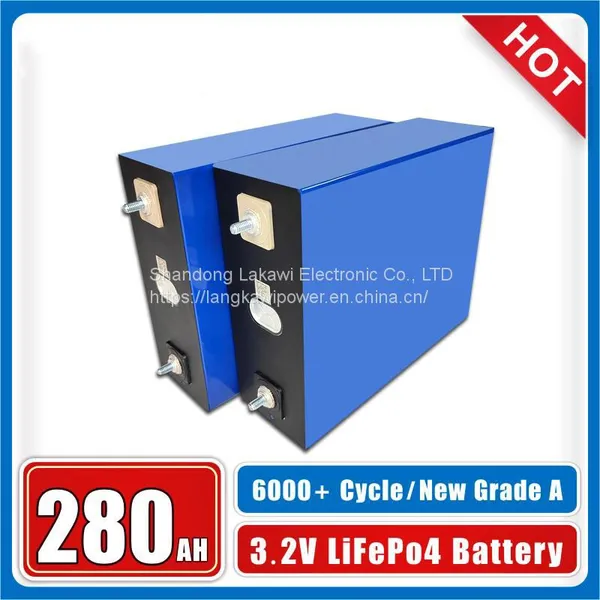

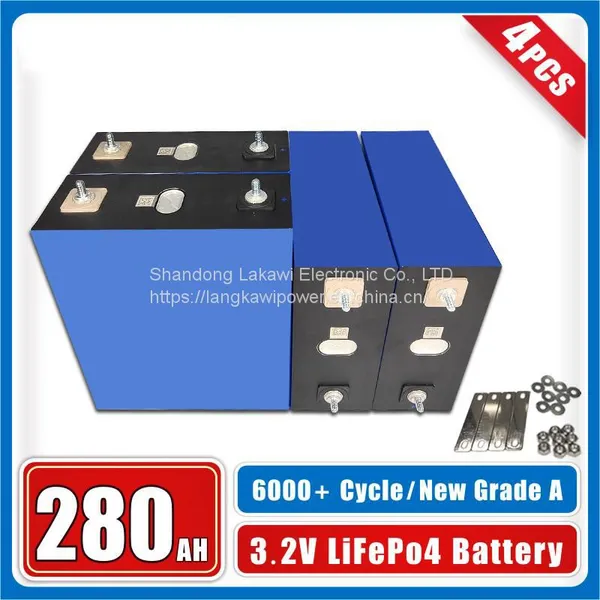

EVE LF280K 3.2V 280Ah LiFePO4 Battery for RV solar system storage
Nominal Voltage:3.2V
Nominal capacity:280Ah
Working voltage:2.5V~3.65V
AC impedance resistance(1khz):≤0.25mΩ
Max. pulse charge / discharge current: 2C (30S)
Dimension: 207(H)*72(T)*173.7(W)mm
Weight: 5.42±0.3kg
LF280K with m6 threaded hole
Welding Parameter of Al Busbar
Laser Welding Depth: ≤2.5 mm
Max Pressure Force on Terminals: 700 N
Max Torque Force on Terminals: 6 N m
Max Temperature on Terminals: 130℃
Parameters：
Item |
Parameter |
Nominal Capacity |
280ah |
Typical Voltage |
3.2V |
AC Impedance Resistance (1KHz) |
≤0.25mΩ |
Standard charge / discharge Current |
0.5C |
Cut off voltage of charge / discharge |
3.65V / 2.5V |
Max. continuous charge / discharge current |
1C |
Max. pulse charge / discharge current(30S) |
2C |
Recommended scope of SOC |
10%~90% |
Charging temperature |
0~55℃ |
Discharging temperature |
-20~55℃ |
Storage temperature Short-term (within 1 month) |
-20~45℃ |
Storage temperature Long-term (within 1 year) |
0~35℃ |
Storage humidity range |
＜90% |
Self-Discharge rate per month |
≤3%/month |
Dimension |
207*72*173.7mm |
Weight |
5.42±0.3kg |
Cycle life at 25℃ |
≥6000 cycles @0.5C |
Electric Performance Curve
Cycle curve(charge/discharge: 0.5C/0.5C, 3.65V-2.5V)
EVE LiFePO4 Battery Cell Models
Model |
Capacity |
Internal Resistance |
Weight |
Dimension |
LF32 |
32Ah |
1.5mΩ |
725±50g |
148.3*26.7*94.3±0.5mm |
LF50K |
50Ah |
0.7mΩ |
1.4kg |
185.3*135.3*29.3mm |
50Ah |
0.5mΩ |
1.05kg |
148.3*26.7*129.8mm |
|
LF80 |
80Ah |
0.7mΩ |
1.395kg |
135*29.3*185mm |
LF90K |
90Ah |
0.5mΩ |
2.0kg |
200.5*130.3*36.7mm |
LF100MA |
100Ah |
0.5mΩ |
1.92kg |
118.5*115.7*97.0mm |
LF100LA |
100Ah |
0.5mΩ |
1.98kg |
118.5*160*50mm |
LF105 |
105Ah |
0.5mΩ |
2.0kg |
200.5*130.3*36.7mm |
LF230 |
230AH |
0.5mΩ |
4.14kg |
207.2*53.85*173.93mm |
LF280K |
280Ah |
0.25mΩ |
5.42kg |
207.5*173.7*72mm |
LF304 |
304Ah |
0.5mΩ |
5.49kg |
208.8*173.5*72mm |
