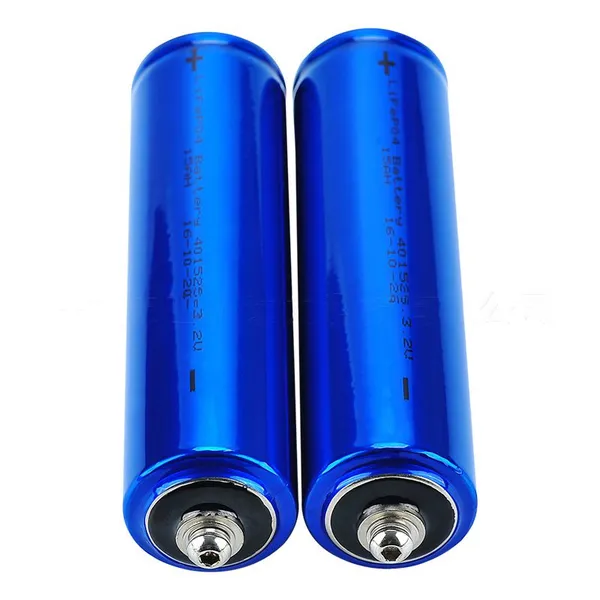

Help CenterHeadway 40152S 3.2V 17Ah LiFePO4 Battery Cell
Related Products
-
Headway 38120HP 8Ah LiFePO4 Battery CellNegotiableMOQ: 10 Pieces -
Headway 48V 100Ah LiFePO4 Battery NE-48D100-NP Wall Mounted Battery PackNegotiableMOQ: 1 Set
-
Ganfeng 3.2V 314Ah Lithium GFB Prismatic Lifepo4 Battery CellNegotiableMOQ: 10 Pieces
-
3.2 V 100ah LiFePO4 Battery Cell Rechargeable Prismatic Lithium BatteryUS$ 90 - 100MOQ: 100 Pieces
-
CATL 3.2V 280Ah LiFePO4 Battery CellNegotiableMOQ: 1 Piece
Headway LiFePO4 Battery is a kind of high power lithium iron phosphate LiFePO4 cylindrical battery cell. Here are the models of 8Ah 38120Hp, 10Ah 38120, 15Ah/17Ah 40152S, 16Ah 40160 Headway LiFePO4 Battery Cells

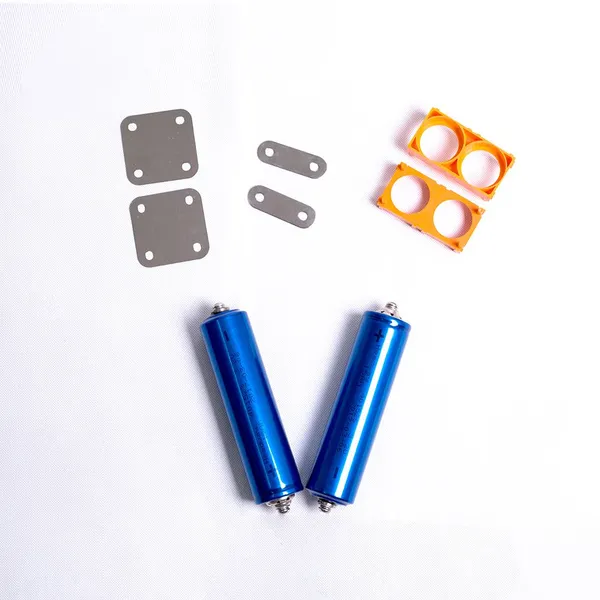

Headway 40152S has a very low resistance, high capacity, and with screw terminals which makes it much easierto be connected in series and/or parallel into larger packs.
1. Nominal Voltage:3.2Volts.
2. Dimension:Diameter(mm) X High(mm) = 40±1mm X 165±1mm(with screw)
3. Capacity: >17Ah.
4. Maximal Charge Current: 17A
5. Maximal Continuous Discharge C-Rate: 34A
6. Maximal Discharge C-Rate: 102A
7. Overvoltage Protection: 3.65±0.05Volts.
8. Undervoltage Protection: 2.0Volts.
9. Lifecycle: 2000Cycles.
10. Weight: 485Grams.
11. Impedance: ≤4mΩ.
12. Chemical: LiFePO4
Item name |
Technology parameter |
Nominal capacity |
17Ah(0.5c) |
Nominal voltage |
3.2v |
Internal resistance |
≤4mΩ |
Max.Charge Current |
17A(1C) |
Max.Charge voltage |
3.65±0.05V |
Max.discharge current(continuous) |
34A(2C) |
Max.Discharge current(pulse) |
170A(10C) |
End-off discharge voltage |
2.0V |
Dimension |
Φ40±1mm*H152±1mm（H165±1mm） |
Weight |
appro*.485g |
Cycle life |
>2000times |
Operating temperature |
-20~60℃ |
Storage temperature |
One month: -20~40℃ |
Six months: -20~35℃ |
