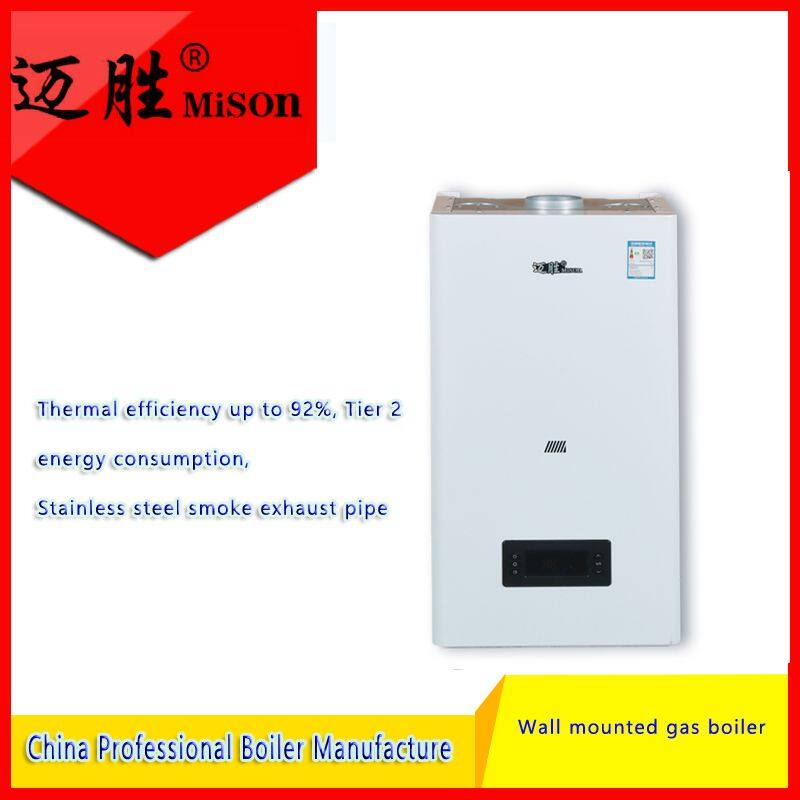

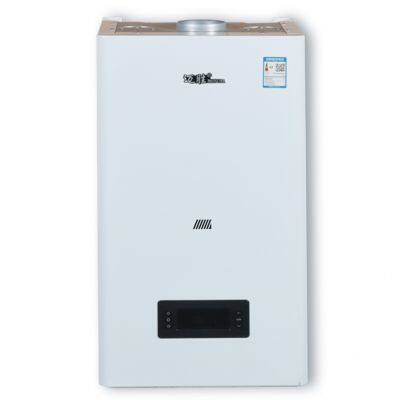

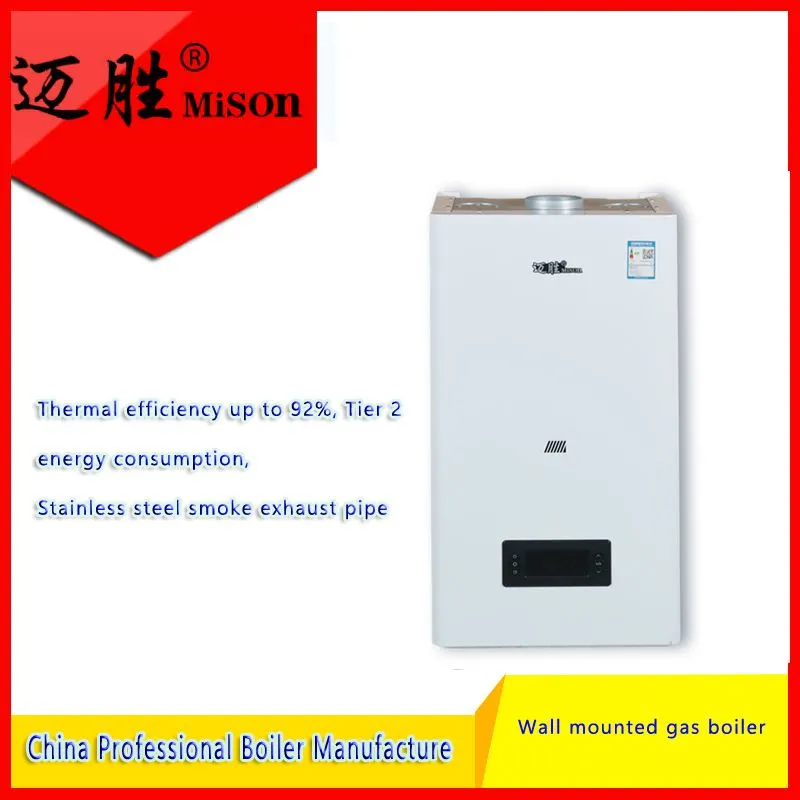

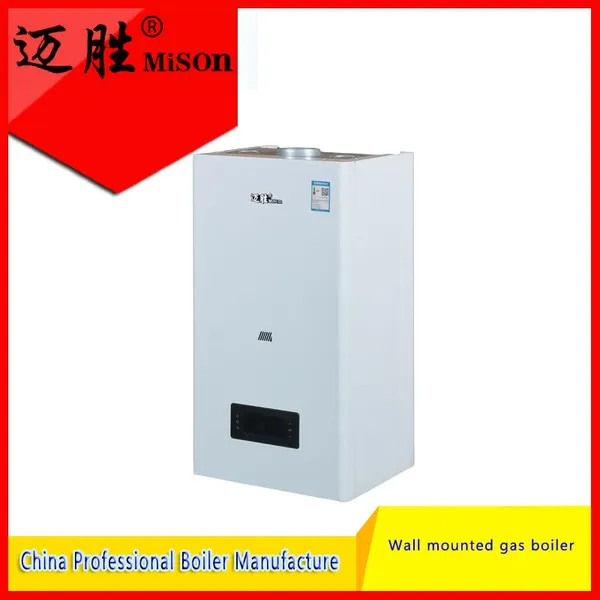

WALL MOUNTED GAS BOILER
MS-1 series :L1PB18, L1PB20, L1PB24, L1PB28
MS-1 Features

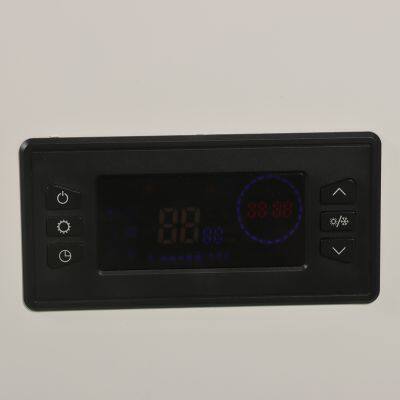

●Samrt controller

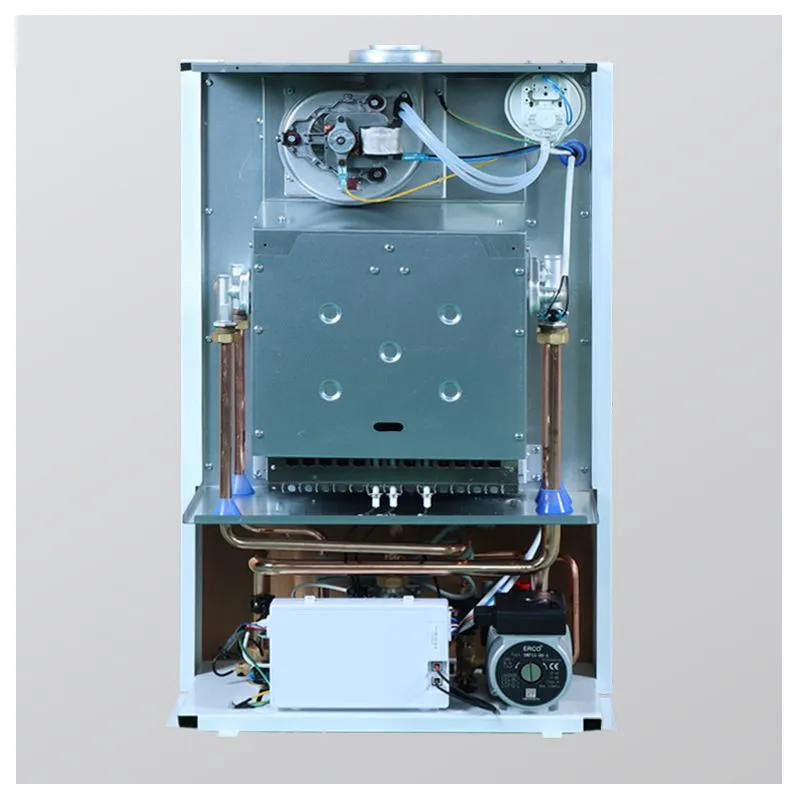

●China famous brand heat exchangers, burners and gas proportional valve
●Stainless steel smoke exhaust pipe
●Thermal efficiency up to 92%, Tier 2 energy consumption
Name | Technical Parameters | |||
Standard | GB25034-2010 GB20665-2015 | |||
Model | L1PB20 | L1PB24 | L1PB28 | |
Gas Type | NG | |||
Rated Gas Pressure | 2000Pa | |||
Working Gas Pressure | 1500-3000Pa | |||
Gas flow(m³/h) | 2 | 2.4 | 2.8 | |
Rated Max.Heat Input(KW) | 20 | 24 | 28 | |
Rated Max.Heat Output(KW) | 18 | 21 | 25.2 | |
Min. Heat Input(KW) | 8 | 9.6 | 11.2 | |
Min. Heat Output(KW) | 7.2 | 8.6 | 10 | |
Rated Power(W) | 120 | 120 | 140 | |
Voltage/Frequency | 220v/50hz | |||
Heating reference area(㎡) | 100 | 130 | 160 | |
Heating | Working Water Pressure | 0.3Mpa | ||
Max Temperature | 80℃ | |||
Systerm temperature range | 30℃-80℃ | |||
Expansion tank (L) | 6 | 6 | 8 | |
Heating temperature setting range | 30℃-50℃ | |||
Hot water | Setting Temperature Range | 30℃-65℃ | ||
output rate of hot water | (△t=30k) | (△t=30k) | (△t=30k) | |
Min. start-up flow | 3L/Min | |||
Working Water Pressure | 0.05-0.8Mpa | |||
Heating Input/Output | G3/4” | |||
Hot water Input/Output | G1/2” | |||
Gas Input | G3/4” | |||
Product Dimensions(mm) | 740x400x310 | 740x400x310 | 740x460x310 | |
Weight(kg) | 33 | 34 | 36 | |
Exhaust pipe(mm) | ⊘60mmx100mm | |||
Appliance and Water protection grade | IPx4 | |||
Dezhou Mison Cooling and Heating technology Co., LTD. is a company adopts German technology, research and development, production, sales and after sales in a body's comprehensive high and new technology enterprise. Company is located in shandong province dezhou NingJin development zone, covers an area of more than 20000 square meters, as a wall-mounted boiler manufacturers, the company in 2017, officially entered the wall-mounted gas stoves, electric wall hanging furnace, electric cainuanlu pre-mixed low nitrogen condensing boiler, electric boiler, and the whole industry. Based on "customer on" the tenet of "scientific and technological innovation", according to the different needs of the masses, design and provide solutions to individual heating system.Company has strong technical force, advanced production testing equipment and excellent service team, independent research and development of double heating, constant temperature electric cainuanlu has access to patents, adhering to the "scientific and technological innovation, integrity services, and social responsibility" principle, for the society and provide energy conservation and environmental protection products and first-class service.Company has always been to quality and safety for the mission, combining science and technology innovation, energy conservation, environmental protection, carefully build each product user satisfaction. From raw materials, demanding the quality of raw materials, the use of domestic and foreign well-known brand accessories, configuration of domestic perfect testing and assessment center, a comprehensive build Michael wins the superiority of product performance, security and stability, with the power of the science and technology improve the quality of life, with sincere dedication to give back to society.Company's main products: wall hanging furnace, wall-mounted gas stove, electric cainuanlu, fully premixed gas boiler and electric boiler...
QU1. Are you the manufacturer or trading company?
We are the manufacturer specializing in wall hanging furnace, wall-mounted gas stove, electric cainuanlu, fully premixed gas boiler and electric boiler...established in 2017.
QU2. Can we have our logo or company name to be printed on your products or the package?
Yes, we can accept the customization according your requirment.
QU3. How long you can offer a sample for my inspection?
Depends on models, Sample 5-20days.
QU4. What is your MOQ?
10pcs/per model. We can discuss it .
QU5. What is your payment term?
T/T30% deposit in advance or negotiate.
QU6. Can I visit your factory?
Welcom you to visit us at both convenient time.
