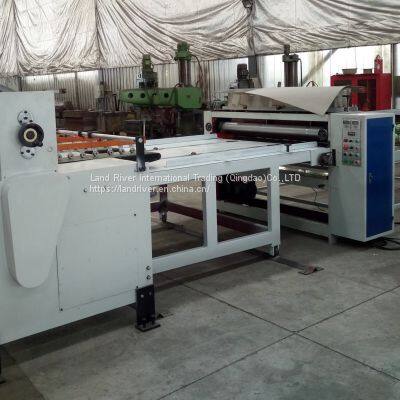

1400mm Automatic Feeding Corrugated Paperboard Wax Coating Machine for Paraffin Wax Coating
US$ 13500 - 18500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Land River
Place of Origin:
China
Model Number:
TLJ Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
25 days
Related Products
-
Automatic/Manual Operation Coating Lamination Machine With Customized Wax ContentUS$ 13500 - 18500MOQ: 1 Set -
Efficient Operation Paperboard Wax Coating Machine With Customized Wax ContentUS$ 13500 - 18500MOQ: 1 Set
-
Efficient Operation Paperboard Wax Coating Machine With Customized Wax ContentUS$ 13500 - 18500MOQ: 1 Set
-
Efficient Operation Paperboard Wax Coating Machine With Customized Wax ContentUS$ 13500 - 18500MOQ: 1 Set
-
Automatic/Manual Operation Coating Lamination Machine With Customized Wax ContentUS$ 13500 - 18500MOQ: 1 Set
Brand Name
Land River
Place of Origin
China
Model Number
TLJ Series
Certification
ISO9001
Type
Other, Coating Machine
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
One Year
Weight
Customized
Dimension(L*W*H)
Customized
Condition
New
Voltage
Customized
Power(W)
Customized
Computerized
Yes
1.Function Description:
TLJ series waxing machine is a special equipment for double-sided waxing corrugated board in the production of carton.It is an indispensable equipment in the production process of corrugated carton. The machine has stable working performance, flexible rotation, exquisite materials, uniform wax coating, simple structure, beautiful appearance and convenient operation.
2.Equipment Parameters:
2.Equipment Parameters:
| No. | Machine Model | TLJ-1400 |
| 1 | Max. Paperboard Width | 1500 mm |
| 2 | Max. Waxing Width | 1400 mm |
| 3 | Max. Paperboard Thickness | 8 mm |
| 4 | Max. Waxing Speed | 60 m/min |
| 5 | Power Supply | 380V/50 HZ |
| 6 | Total Power | 19.5 KW |
| 7 | Machine size (L×W×H) | 14000mm×1800mm×1300mm |
| 8 | Total weight | 2.9 T |
3.Main Unit Description:

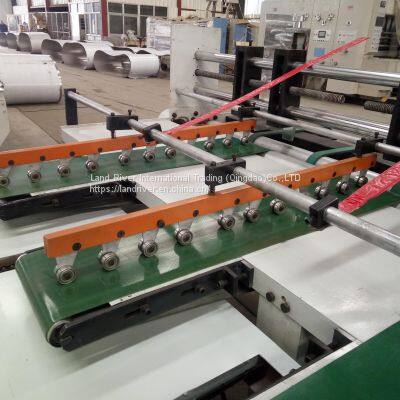

Auto Feeder
(1)The size of the board is adjusted by the screw adjusting mechanism. One person to operate. Simple and quick.
(2)Convenient Adjustable Code Paper table. Better adapted to a variety of cardboard. and send paper stable and accurate.
(3)The paper feed belt uses the high quality rubber seamless belt. The friction is big. Long life. Low noise, easy maintenance. High economic benefits.
(4)Double tension control. Convenient and reliable.
(5)The drive shaft adopts pattern roller. Increase the friction with the paper belt. Ensure smooth and high-speed cardboard delivery.
Paperboard Waxing Unit
(1)Powered by the variable frequency motor, driven by the motor sprocket to the lower waxing roller sprocket, the waxing roller sprocket is equipped with a transmission large sprocket, and the transmission large sprocket transmits the power to the lower wax roller and the upper wax roller. The waxing roller is removed to complete the waxing work.
(2)Can wax both sides of the paperboard at the same time.
(3)Equipped with an automatic heating box to keep the wax at the optimum working temperature.
(4)The upper waxing roller can move up and down, which makes the machine can be suitable for 3/5ply paperboard.
(5)The wax roller can move back and forth, which acts as a wax and keeps the wax liquid.

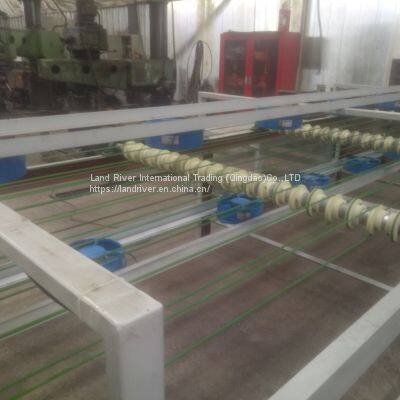

Paperboard Air Dried Unit
The extended air-drying section is equipped with 40 high-efficiency axial fans, which facilitates rapid and even cooling of the wax liquid and ensures wax quality.
4.Use and Maintenance:
(1)When using, first inject the wax liquid into the wax bucket, the liquid level is higher than the bottom end of the waxing roller by 20-30mm. Start the mainframe and let the machine run at low speed. The upper and lower heating buttons and the wax roller heating button are activated in sequence. When the temperature reaches the proper temperature, put in the cardboard, start the fan, adjust the speed control knob, and start working; after the work is finished, turn off the fan and the upper and lower heating buttons, and away from the wax roller heating button. Reduce the idle speed of the machine and turn off the main unit after the wax has solidified.
(2)When adjusting the upper ends of the waxing roller in parallel, the adjustment range must be between 2-4mm.
(3)When adjusting the ends of the wax-off roller, the thickness of the wax coating layer should not exceed 0.5-2mm.
(4)Lubricate the parts, use regular oil to refuel.
(5)Regularly clean the wax roller to keep the machine clean.
(6)At the end of the work, the handwheel is loosened to prevent the wax from solidifying between the waxing rolls and between the waxing roller and the waxing roller.
5.Transportation& Installation & Testing:
(1)The machine needs to be transported to the designated place by crane or roller. When transporting the machine, pay attention to balance lifting.
(2)In order to make the machine work smoothly, it is best to tamper the bottom surface beforehand or directly on the horizontal floor. In short, the bottom surface must be flat before installation.
(3)Carefully wipe off the anti-rust oil of each part before the test (Note: Do not use oil to scratch the surface of the machine), then lubricate, let the machine idle for 30 minutes during the test, check whether the fastening parts are loose, the running parts Whether there is a blockage, if everything is normal, it can be put into production.
