Best Price Double Screw Puff Extruder Machine Food Leisure Snack Production Line

FOB Price

USD $7500 - $8000 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port jingdao
Payment Terms:T/T
Delivery Detail:40 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Mingde	Place of Origin:	China	Model Number:	MD-65, MD-70, MD-85, MD-100
After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	1 Year	Weight:	7000KG
Dimension(LWH):	2400016003000mm	Condition:	New	Voltage:	380v/50hz(customized)
Application:	Other	Power(W):	68kw

Product Description

Product description

Inflating Snack Food Making Machine
Inflating snack food making machine refers to the equipment used to produce puffed food, such as corn rolls, cheese balls, stuffed rice nuts, etc. The machine usually includes a series of components, including a mixer for mixing the ingredients, a conveyor system for transporting the mixture to the extruder, and an extruder that uses high pressure and heat to shape the the mixture into the desired shape.

Product Line

Flow Chart

①Mixer---② Screw Conveyor---③Double Screw Extruder---④Air Blower---⑤ Dryer---⑥Hoister---⑦Oil Spraying Machine---⑧Flavoring Line

Technical parameter

Model	MD-65	MD-70	MD-85
Capacity	120-150kg/hr	150-300kg/hr	300-500kg/hr
Power	70KW	90KW	120KW
Dimension	15 x 5 x 3m	18 x 5 x 3m	22 x 5 x 3m

Main equipment

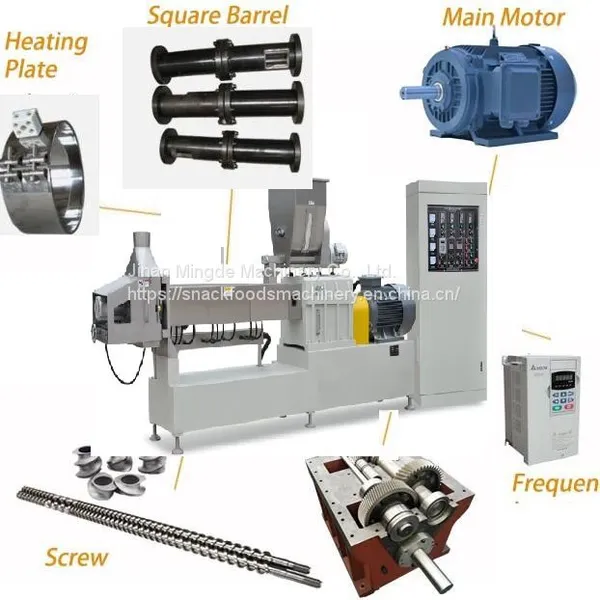

Double screw extruder

Series of twin screw extruders are consisting of feeding system, extruding system, cutting system, heating system, Gearing system and controlling system.
• Consists of feeding system, extruding system and cutting system, adopts frequency speed controlling with high automation and stable performance.
• Automatic lubricating, cooling, to guarantee the extruder running safely.
• According to different material, to choose the relative single or double screw feeding system, the material should be uniformity and stable.
• Unique technique is able to bear grinding, steady and rellable, longer using life.

Mixer	Function: to mix the raw materials evenly, fast speed, no leakage. Power:3kw, 4kw Output: 30kgs/batch, 50kgs/batch, 1batch/5min Material: stainless steel, carbon steel
Dryer	Consisting of transmission electrical motor, stainless steel carrying belt, infrared heating pipes and supporting frame. Type: electrical, steam, gas fired, diesel fired heating type Technical parameter: three layers of five meters, five layers of five meters, five layers of eight meters, seven layers of ten meters
Double roller flavoring	Function: to sprayer the oil as well as the other flavour on the dog food in order to make special smell to make the dog food like to eat as well as make taste delicious. Power:1.5kw Capacity: >=80kg/h Dimension: 34008002300mm

Advantages

Puffed food has become increasingly popular due to its delicious taste, unique texture, and wide range of flavors. The puffed food machine has several advantages, which are outlined below:
1. Versatility: This line can produce expanded snacks (cheese balls, or curls) with corn flour, breakfast cereals (balls, rings,etc), co extruded, snacks (core filled tubes with cream / fat based filling) and cereal Pillow. The shapes can be hundreds of shapes via changing the dies in front of extruder.
2. Energy efficiency: Puffed food machines are highly energy efficient, reducing energy consumption and production costs. Also,the machines are highly automated, reducing labor costs and increasing efficiency in the production process.
3. Easy to operate: Puffed food machines are easy to operate, making it easy for workers to learn and handle the machines.Additionally, the machines require little maintenance, reducing downtime during production and maintenance costs.
4. High productivity: Puffed food machines are capable of producing large quantities of puffed food products in a short time, increasing production efficiency and the ability of manufacturers to meet market demand.
In conclusion, puffed food machines are a valuable investment for food manufacturers. They are highly versatile, energy-efficient,safe, easy to operate, and highly productive. By investing in a puffed food machine, manufacturers can improve production efficiency and meet the varied demands of the modern consumer.
Packing&Shipping
