Dung Briquette Machine(0086-15978436639)
- 20 Set / Sets per Month
- Qingdao, Shanghai, Shenzhen, or specified pot by customers.
- T/T L/C Cash
- 25 days
Product Details
Brand Name: | Shisheng Machinery | Place of Origin: | China | Model Number: | XM430 |
Certification: | ISO, CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Dimension(L*W*H): | 1740*1820*1890mm | Production Capacity: | 3-4t/h | Condition: | New |
Power(W): | 15kw | Motor Type: | AC Motor |
Packaging Details
Seaworthy packing as per export container rules, bigger items loose stuff in container and small parts will be tied up in a bundle put into steel boxes or plywood boxes. Delivery will be arranged based on busy or low producing season in our factory, single set machine is normally not more than 25 days, production line is in one month.
Product Description

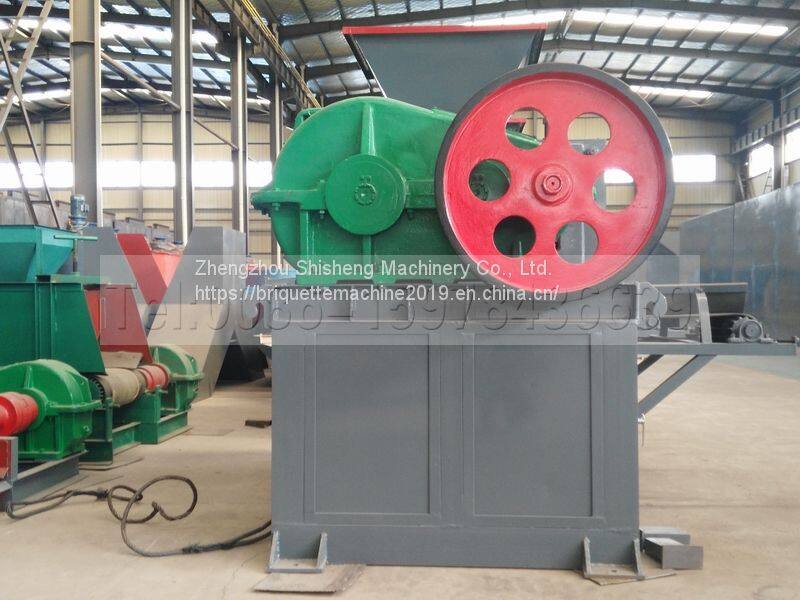

Dung Briquette Machine Introduction:
(1) Briquette making machine can mold a variety of mineral powder, metal powder, coal powder, coke powder and other materials.
(2) Due to forced squeeze by roller, the products have high density, high strength and high hardness.
(3) The press roller uses 65Mn rigid material is in good abrasion resistance, effectively prolong service life.
(1) Main motor transmit power to speed reducer.
(2) The coupling between reducer and rollers start to run.
(3) The exposed gear impel drive and driven shaft to rotate synchronize
(4) The pressure in two rollers increase gradually, from small to large.
(5) Pressure reaches top, the briquettes is molded successfully.
XM Series Coal Briquetting Machine
Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||
Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
According to different material adjust machine parameter to meet customer production |
KF Series Mineral Powder Briquetting Machine
Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
According to different material adjust machine parameter to mmet customer production |
