Mini Pleat Medium Filter Plastic Frame V Cell Air Filter

Mini Pleat Medium Filter Plastic Frame V Cell Air Filter thumbnail-1
Mini Pleat Medium Filter Plastic Frame V Cell Air Filter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SNYLI
Place of Origin:
China
Dimension(L*W*H):
610×610×292×5v
Contact Supplier Request Quote Chat Now
Snyli Environmental Technology (Shandong) Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SNYLI
Place of Origin China
Dimension(L*W*H) 610×610×292×5v
Condition New
Efficiency M6,F7,F8,F9
Medium Material Fiberglass
Filtration Grade Medium Filter
Construction Box Filter

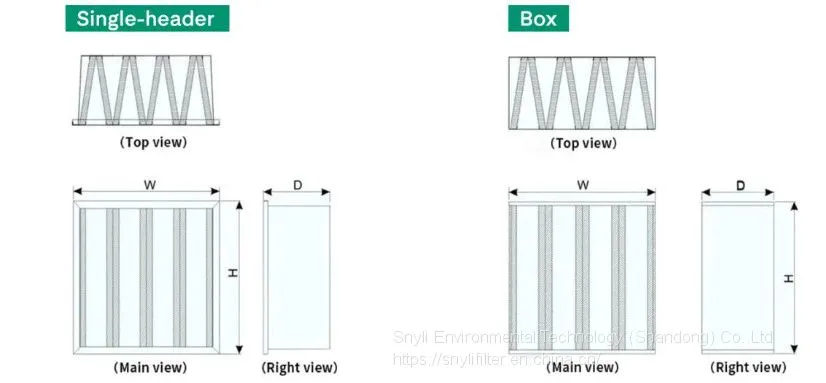

The unique V-bank design enables more area of mini-pleated filtration media being assembled and lower pressuredrop, which results in higher dust holding capacity and longer service life.
Frame:

Frame: ABS,Galvanized, Aluminum

V Number: 2V、3V、4V、5V

Media: Synthetic fiber & glass fiber

Efficiency:

M6 (EN 779), 60~80% / MERV 11~12 (ASHRAE 52.2)

F7 (EN 779), 80~90% / MERV 13 (ASHRAE 52.2)

F8 (EN 779), 90~95% / MERV 14 (ASHRAE 52.2)

Separator: Hot melt

Sealant: EPDM

Max. Temperature: 70°C

Max. Humidity: 100% RH

Application:
V-bank filters are designed for high volume airflow requested  facilities. They are mainly used as secondary filters for  facilities with HEPA/ULPA requirements, for instance office  building, clean room and breeding plants, etc.

4V Medium V bank

Dimensions Width (mm) Height (mm) Depth (mm) Media Area (m2) Airflow / Pressure Drop (m3/h / Pa) Efficiency EN779 Volume (m3) Weight (kg)
4V-24x24x12 592 592 292 14.3 3600 / 80 F6 0.1 5.0
4V-24x20x12 592 490 292 11.3 2900 / 80 F6 0.08 4.0
4V-24x12x12 592 287 292 6.8 1800 / 85 F6 0.05 3.0
4V-24x24x12 592 592 292 14.3 3600 / 100 F7 0.1 5.0
4V-24x20x12 592 490 292 11.3 2900 / 100 F7 0.08 4.0
4V-24x12x12 592 287 292 6.8 1800 / 105 F7 0.05 3.0
4V-24x24x12 592 592 292 14.3 3600 / 125 F8 0.1 5.0
4V-24x20x12 592 490 292 11.3 2900 / 130 F8 0.08 4.0
4V-24x12x12 592 287 292 6.8 1800 / 135 F8 0.05 3.0
4V-24x24x12 592 592 292 14.3 3600 / 155 F9 0.1 5.0
4V-24x20x12 592 490 292 11.3 2900 / 165 F9 0.08 4.0
4V-24x12x12 592 287 292 6.8 1800 / 170 F9 0.05 3.0


2V Medium V bank

Dimension Width (mm) Height (mm) Depth (mm) Media Area (m2) Airflow / Pressure Drop (m3/h / Pa) Efficiency EN779 Volume (m3) Weight (kg)
2V-24x24x12 592 592 292 9.6 3400 / 65 F6 0.1 3.3
2V-24x20x12 592 490 292




2V-24x12x12 592 287 292 4.2 1700 / 80 F6 0.05 2.1
2V-24x24x12 592 592 292 9.6 3400 / 100 F7 0.1 3.3
2V-24x20x12 592 490 292




2V-24x12x12 592 287 292 4.2 1700 / 120 F7 0.05 2.1
2V-24x24x12 592 592 292 9.6 3400 / 130 F8 0.1 3.3
2V-24x20x12 592 490 292




2V-24x12x12 592 287 292 4.2 1700 / 150 F8 0.05 2.1
2V-24x24x12 592 592 292 9.6 3400 / 160 F9 0.1 3.3
2V-24x20x12 592 490 292




2V-24x12x12 592 287 292 4.2 1700 / 180 F9 0.05 2.1


4V HEPA V bank

Dimension Width (mm) Height (mm) Depth (mm) Media Area (m2) Airflow / Pressure Drop (m3/h / Pa) Efficiency EN1822 Volume (m3) Weight
(kg)
4V-24x24x12 592 592 292 18.5 3400 / 230 E10 0.1 5.0
4V-24x20x12 592 490 292 15.2 2650 / 230 E10 0.08 4.0
4V-24x12x12 592 287 292 8.4 1700 / 230 E10 0.05 3.0
4V-24x24x12-0P 592 592 292 31.6 3000 / 250 E12 0.1 5.0
4V-24x20x12-0P 592 490 292 26.7 2400 / 250 E12 0.08 4.0
4V-24x12x12-0P 592 287 292 14.7 1350 / 250 E12 0.05 3.0


4V HEPA V bank

Dimension Width (mm) Height (mm) Depth (mm) Media Area (m2) Airflow / Pressure Drop (m3/h / Pa) Efficiency EN1822 Volume (m3) Weight (kg)
4V-24x24x12-0P 592 592 292 29.7 3000 / 250 H13 0.1 5.0
4V-24x20x12-0P 592 490 292 24.3 2450 / 250 H13 0.08 4.0
4V-24x12x12-0P 592 287 292 13.7 1350 / 250 H13 0.05 3.0



Various V-section HEPA V bank

Dimension Width (mm) Height (mm) Depth (mm) Media Area (m2) Airflow / Pressure Drop (m3/h / Pa) Efficiency EN1822 Volume (m3) Weight (kg)
5V-24x24x12-0P 610 610 292 45.0 3400 / 250 H13 0.11 20.0
2V-12x24x12-0P 305 610 292 18.0 1700 / 250 H13 0.05 13.0
5V-24x24x12-0P 610 610 292 46.0 3000 / 250 H14 0.11 23.0
2V-12x24x12-0P 305 610 292 18.0 1500 / 250 H14 0.11 20.0
