Specification
Dimension: |
89x89x127cm |
Material: |
Polypropylene raw material |
Feature: |
Recyclable at Industrial Standard |
Top option: |
Filling Spout: Dia40x45cm |
Bottom option: |
Discharge spout: Dia40x45cm |
Fabric: |
180gsm fabric with UV treatment |
Lifting loops: |
Cross corner lifting loops, 7cm width and loop height 25cm |
Safety Loading: |
1000kgs at Safety factor 5:1 |
Sewing Thread |
1000Dx 2plys high tenacity polyester |
Design: |
Tubular (Circular) shape |
Inner liner： |
Form fit inner liner inserted |
Usage: |
Chemical materials or Fertilizers |
Sewing: |
Standard Flat stitches sewing length of stitch |
Printing: |
2-side, 3-color (Black, Red and Green) |
Packing： |
On bales or Pallets according to customer’s require |
Bag’s feature and application:
1. Top filling spout: Also named an inlet spout , used as the inlet for filling. It is designed to fit the customer’s filling chute during loading.

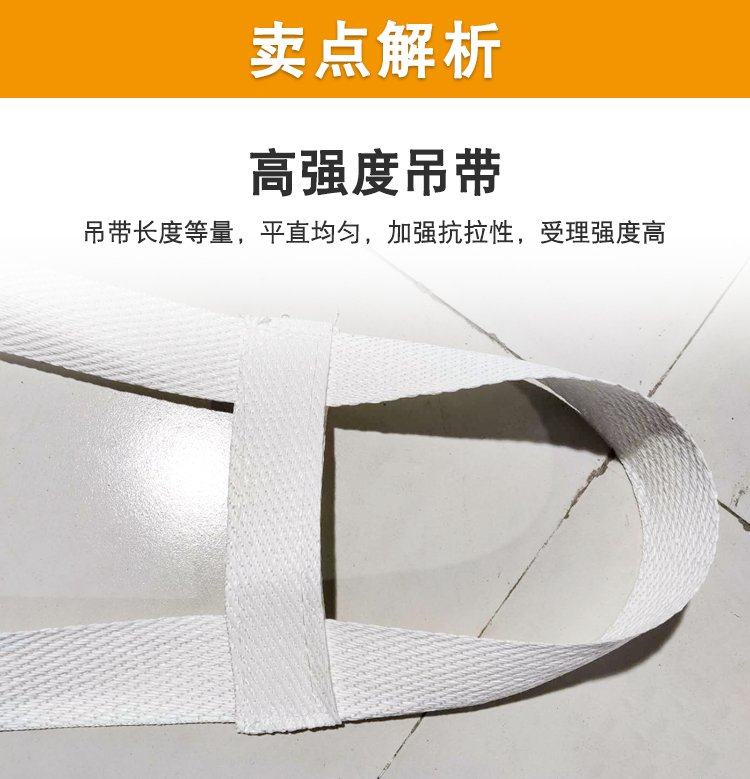

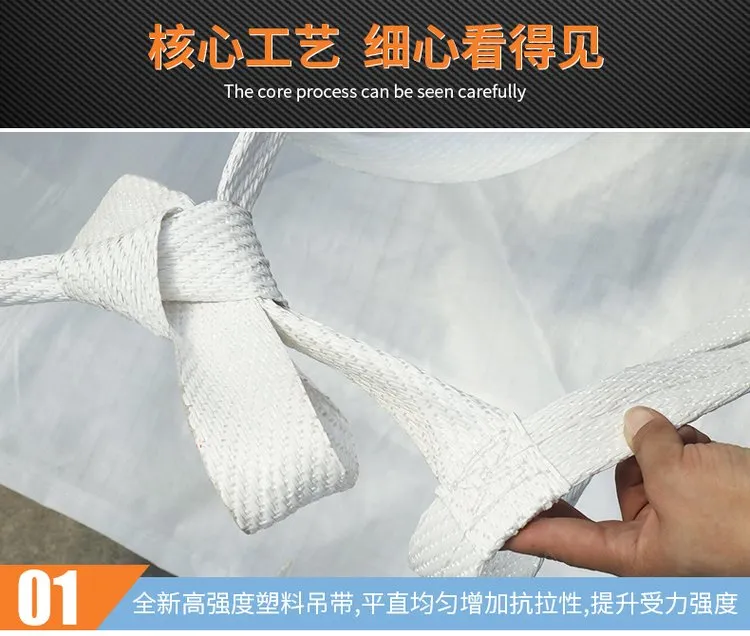

2. Lifting straps and lock stitch sewing:
Side seam lifting belt supports the overall
Safe Working Load (SWL), of a filled bag during handing & transport. It may be made of either a stiff strap or a soft one. It using various widths and strengths regarding to each bag’s specification. Typically lift loops have a tensile strength between 3000 to 5000 pounds.
Lock stitch sewing: It refers to customer’s require as this
Type of sewing is only need sewing one line.
3. Form fit inner liner
Designed to form fit the exact shape of the outer jumbo bag. Form-Fit Liners will improved filling and complete discharging of product.
4. Discharge spout
Also called a bottom spout, used as an outlet to empty the products from the jumbo bag.
Jumbo big bag’s Application
The Builder Big Bag specially developed for storage and transport of sand, gravel and garden materials. This bag can be supplied with standing loops (Cross Corner) for easy handling.
We can supply most types of liner Big Bags to protect the content from moisture and other external influences. Regarding to the type of protection needed, the inner liner is made from either PE or higher barrier materials like EVOH and Aluminium.

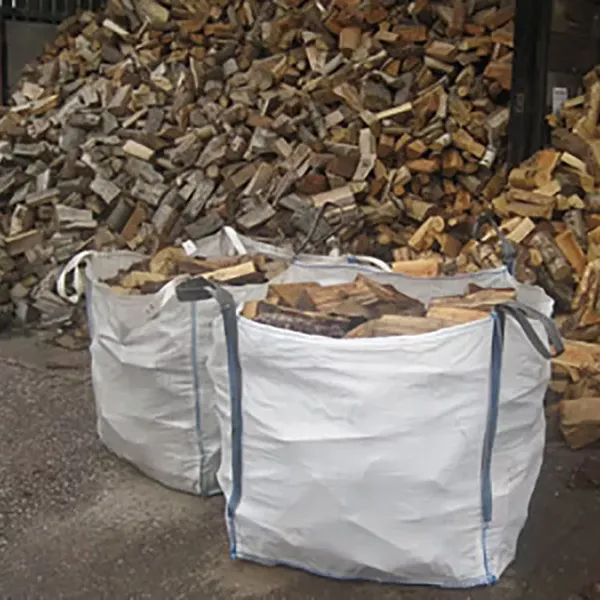

The big bag for firewood is especially designed for transportation, storage and drying of wood logs. Due to its breathing and ventilated features, the wood logs can dry optimally in these bulk bags while being stored in a limited space.
Conductive big bags that comply with the relevant EN-IEC-norm 61340-4 latest version. Our conductive bags can be safely used in ATEX environments.
Big Bag for industrial usage is available for loading weights from 500 kg to 2,000 kg.
These bags are tested by independent test institutes in accordance with international quality requirements.
For transportation and storage of hazardous materials, we supplies the UN-class approved FIBC. Which kind of UN bag is appropriate for use depends upon the hazard qualification of the product to be packed. Please be invited to contact us for professional technical advice.
Hygiene requirements has become even more stringent in the field of food and pharmaceutical industries. So the production environment has to be operated under strict hygiene conditions according to BRC-IOP, AIB, ISO-22000 or equal hygiene management systems.
The food grade big bags are produced in conformity with the European and American Directives that apply to packaging materials to come into contact with foodstuffs.
Production Process
● Raw materials polypropylene, we use 100% virgin material which 50% imported from abroad and balance purchased from China’s Sinopec.
● Draw bench yarn, which are subjected to strength and quality tests are wound directly to the
weaving loom Machine.
● The fabric weaved on according to customer’s require and weaved out circular shape or divided into one layer flat fabric. This depends on the style of the big bag ( U panel or Circular or 4 panel)
● The fabric lamination, Our lamination machine can do maximum 250cm width fabric and up to 40gsm one or 2 side lamination. We can also provide BOPP lamination.
● QA & QC for weaving fabric and Yarn testing.
● Bag sewing: After lamination and cut into suitable size of woven fabric, the fabric transferred to the sewing department for sewing. The bag sewing strictly under the technique sheet of the sample confirmed before mass production.
● Inspection: After sewing, the bags will do quality inspection piece by piece and then Dust -proof treatment to make sure the bags clean with good quality.
● The prepared bags are packaged on bales or pallets according to the demands of customers and
ready to delivery.
● Shipping and delivery: For Sample orders, it normally ship by Express or by Air as it’s fastest way to collect and the freight will be higher. And shipment by sea and by train (Truck) are both available. It’s according to client’s require. We can provide any type of Certificate of Origin.
Circular big bag also known as tubular big bag, it is another style of according to the construction division compared to U-panel or 4-panel bag. This tubular shape fabric stands for the bag body, and only need sewing the top panel and bottom panel to form a standard circular big bag.
