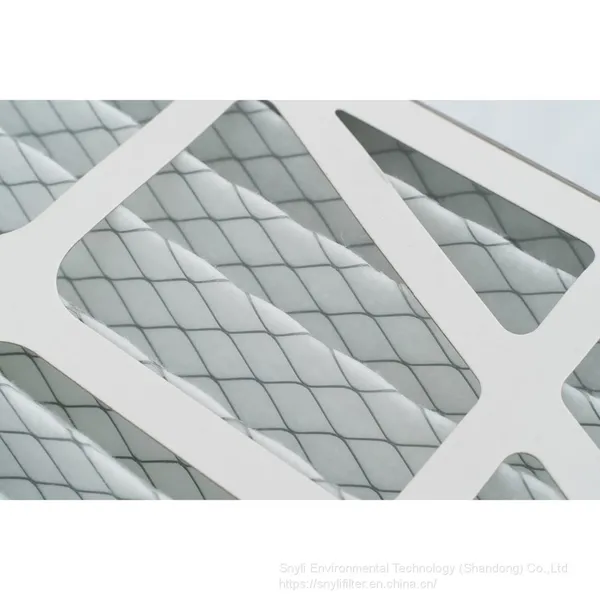

Help CenterPaper Frame Pleated Panel Air Filter for HVAC System
Related Products
-
Washable Pre-Filter Aluminium Plank Pleated Filter for Air Conditioning SystemNegotiableMOQ: 1 Piece -
Panel Pleated Pre Carbon Air Filter Cardboard FrameNegotiableMOQ: 1 Piece
-
Aluminum Panel Metal Mesh Air FilterNegotiableMOQ: 1 Piece
-
Pre Filter Aluminum Panel Metal Frame Nylon Mesh Air FilterNegotiableMOQ: 1 Piece
-
Cardboard Frame Primary HVAC Panel Pleated Pre Air Filter With Mesh GridNegotiableMOQ: 1 Piece
G1-G4 Primary Efficiency Paper Frame Pleated Air Filter is used for the primary filtration of air conditioning and ventilation system. The filter material is non-woven fabrics, which can stop the particles at the size above 5 micron. It has the advantage of high flow rate, great dirt holding capacity and low flow resistance. It is economic because of its low price, and suitable for pre-filtration of the ventilation system.
Products Features
1.The outer frame is firm and detachable, which is convenient to replace the filter element.
2.The filter material is made of high-quality polyester synthetic fiber, which makes it can be cleaned repeatedly and gives it a longer life span.
3.Frame Thickness 45/95mm Primary Air Filter
4.High dust collection rate and high dust capacity.
Products Parameter
| Frame: | Cardboard |
| Frame thickness: | 45mm/95mm(can be customized) |
| Media: | Pleated Polyester synthetic fiber |
| Grille: | None / Metal mesh |
| Design: | Panel |
| Std. EN779: | 2012: G3,G4,F5 |
| Std. ASHRAE 52.2-2007: | MERV5-MERV10 |
| Maximum temperature: | 80ºC |
| Maximum relative humidity: | 99% |
| Customized size: | Available |
| Application: | Suitable as pre-filter used to protect high-performance filters and filtration of fresh air in clean room ventilation system.G1-G4 Primary Efficiency Paper Frame Pleated Air Filter Applied to airport,subway, shopping mails and other places of public services.Such as HVAC,AHU system, |
Application
G1-G4 Primary Efficiency Paper Frame Pleated Air Filter It can be applied in the pre-filtration of the air conditioning, ventilation system, and secondary return air systems.
