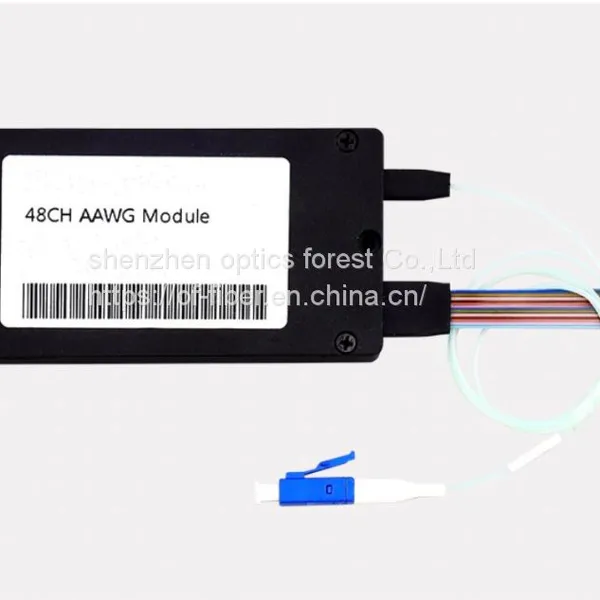

100GHz 48CH Athermal AWG Module
US$ 55 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OF
Place of Origin:
China
Model Number:
OF-AAWG-4813AG04C1-01
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
7 days
Related Products
-
Multimode Fiber Filter Coupler 62.5/125US$ 100 - 200MOQ: 1 Piece -
1060nm Fiber Inline PolarizerUS$ 50 - 300MOQ: 1 Piece
-
Filter Type WDM (1310/1550, 1480/1550, 850/1310 FWDM)US$ 1 - 500MOQ: 1 Piece
-
750/780/850/890nm Single Mode Standard CouplersUS$ 150 - 1000MOQ: 1 Piece
-
Single Window Standard Monolithic 2X4 Fiber Coupler 1310nm Or1550nmUS$ 20 - 2000MOQ: 1 Piece
Brand Name
OF
Place of Origin
China
Model Number
OF-AAWG-4813AG04C1-01
Performance |
Unit |
Specifications |
|
Operation Wavelength |
nm |
1520~1570 |
|
Center Wavelength |
nm |
ITU C13~C60 |
|
Channel Frequency Interval |
GHz |
100 |
|
Center Wavelength Bandwidth |
nm |
±0.1 |
|
Center Wavelength Accuracy |
nm |
±0.05 |
|
1dB Bandwidth |
nm |
≥0.22 |
|
3dB Bandwidth |
nm |
≥0.42 |
|
20dB Bandwidth |
nm |
≤1.2 |
|
Insertion Loss |
dB |
≤4.0 |
|
Isolation |
Adjacent Channel |
dB |
≥25 |
Non-Adjacent Channel |
dB |
≥30 |
|
Total Cross Talk |
dB |
≥22 |
|
Insertion Loss Uniformity at ITU |
dB |
≤1.5 |
|
Polarization-related losses |
dB |
≤0.5 |
|
Polarization Mode Dispersion |
ps |
≤0.5 |
|
Direction |
dB |
≥50 |
|
Return Loss |
dB |
≥45 |
|
Passband Ripple @±0.1nm |
dB |
≤1.5 |
|
Chromatic Dispersion |
ps/nm |
-20~+20 |
|
Power Handling |
mW |
250 |
|
Operating Temperature |
℃ |
-40~+85 |
|
Storage Temperature |
℃ |
-40~+85 |
|
Operating Humidity |
%RH |
0~95 |
|
Fiber Type |
/ |
G657A1 |
|
Connector Type |
/ |
FC/APC |
|
Package size |
mm |
120 x 70 x 11 |
|
Rohs Requirement |
/ |
Rohs Compliant |
|
