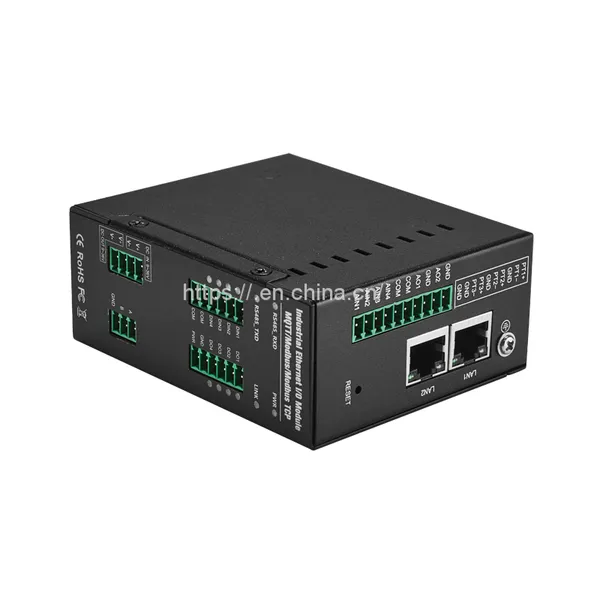

BLIIOT Master-slave Station 4-way Analog Digital Input Factory Building Smoke Counting, Temperature And Pressure Acquisition Data Module
US$ 92 - 117
/ Pack
1 Pack(Min. Order)
- shenzhen
- T/T Escrow
- 15 days
You May Like
-
BLIIoT 4DIN+4DO+2RJ45+1RS485 Computer Room Factory Building Smoke Remote Temperature And Pressure Acquisition Data Module
-
4DIN+4AIN+2AO+4DO+1RS485 Smart City Factory, Traffic Machine Room, Water Room, Industrial Dual Network Port Remote Data Collection Module
-
BLIIoT 8DIN8DO Data Dual Network Port Input And Output Rail Type Reverse Polarity Protection Function, Remote Ethernet Data Module
-
BLIIOT Modbus Industrial Protocol Wet And Dry Contact Cascaded Charging Pile Data Acquisition Module M150E
-
BLIIOT 8-way Input And Output Cold Storage Fruit And Vegetable Storage Room Temperature Monitoring And Acquisition Module
-
BLIIOT Modbus RTU2 Way DI to 1RS485 Function Custom Wet And Dry Contact DIN35 Rail Type Industrial Automation I/O Acquisition Module
Product Details
| Brand Name | BLIIOT | Place of Origin | China | |
| Model Number | M100E |
Product Description

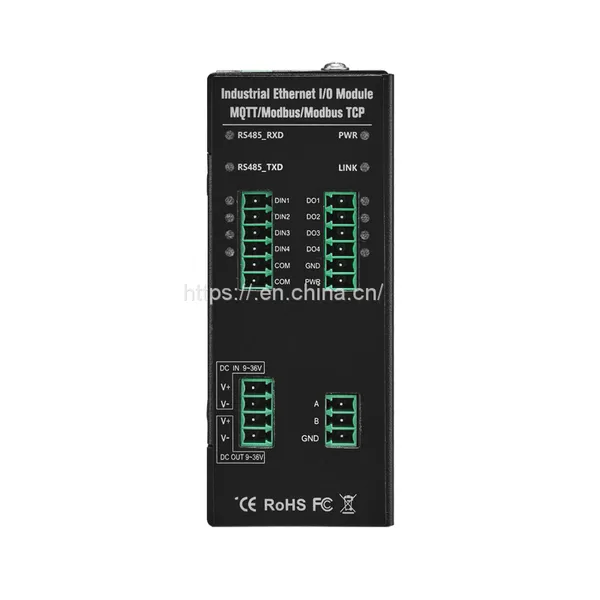

Industrial Remote IO Module M100 is designed for IIOT applications and Industrial Automation, it compatible with SNMP, MQTT Protocol, Modbus RTU Protocol, Modbus TCP Protocol, equip with 2DI, 2DO, 2AI.MXXXE Version: 2*RJ45+1RS485+2DI+2AI+2DO
Remote Input/Output (I/O) Modules M100 is designed for IIOT applications and Industrial Automation, the remote I/O comes with 2 digital inputs, 2 digital outputs, 2 analog inputs, compatible with SNMP V1/V2, MQTT Protocol, Modbus RTU Protocol, Modbus TCP Protocol.
Industrial Remote I/O Module M100 provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.
The Input/Output module also has Ethernet port.
Industrial Remote I/O Module M100 provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.
The Input/Output module also has Ethernet port.
2DI
Wet/Dry Contact
High speed pulse
counting
High speed pulse
counting
2DO
SINK
High speed pulse
output
High speed pulse
output
2AI
0-20mA/4-20mA
0-5V
0-10V
0-5V
0-10V
Protocol
SNMP V1/V2
Modbus RTU/Modbus TCP
MQTT
Modbus RTU/Modbus TCP
MQTT
