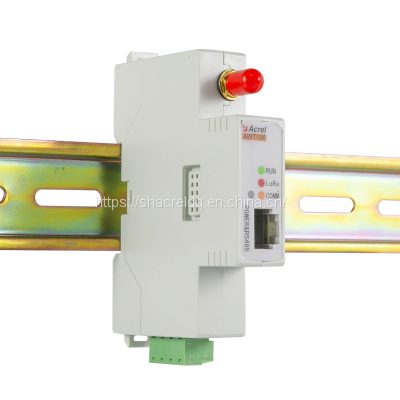

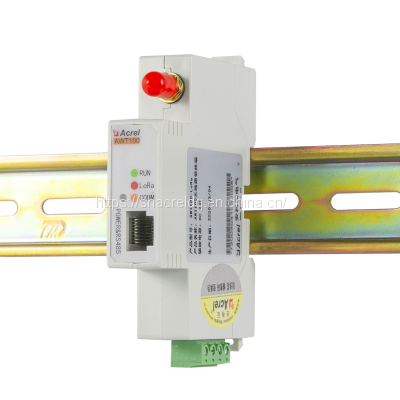

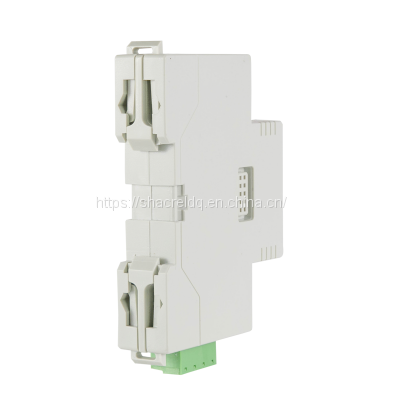

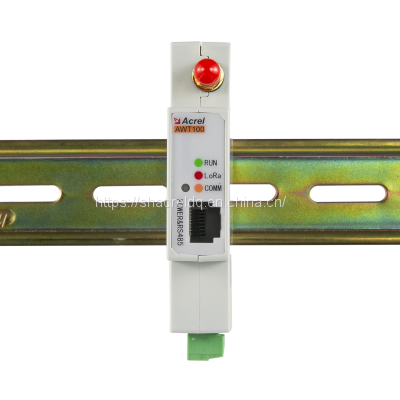

AWT100-LoRaHW IoT Smart LoRa Wireless Gateway RS485 24Vdc Default 85~265Vac Vdc via AWT100-POW Terminal Mode&Relay Mode
US$ 52 - 74
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AWT100-LoRaHW
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AWT100-LoRaHW IoT Smart LoRa Gateway RS485 24Vdc Default 85~265Vac Vdc via AWT100-POW ModuleUS$ 52 - 74MOQ: 1 Piece -
Acrel AWT100-4GHW Paired With AWT100-POW Terminal Smart Gateway RS485 Support Global Frequency Bands RS485US$ 40 - 120MOQ: 1 Piece
-
Acrel AWT100-4GHW Paired With AWT100-POW IoT Smart 4G Gateway Support Global Frequency Bands Smart GatewayUS$ 126 - 130MOQ: 1 Piece
-
Acrel AWT100-4GHW And AWT100-POW IoT Smart 4G Gateway MODBUS-TCP Support Up to 20~25 Acrel Devices With RS485US$ 126 - 130MOQ: 1 Piece
-
Acrel AWT100-4GHW Paired With AWT100-POW IoT Smart 4G Gateway Power Supply 24Vdc Default 85~265Vac/Vdc via AWT100-POW ModuleUS$ 126 - 130MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AWT100-LoRaHW
Solutions & Applications
Products Description
AWT100-LoRaHW IoT Smart LoRa Gateway

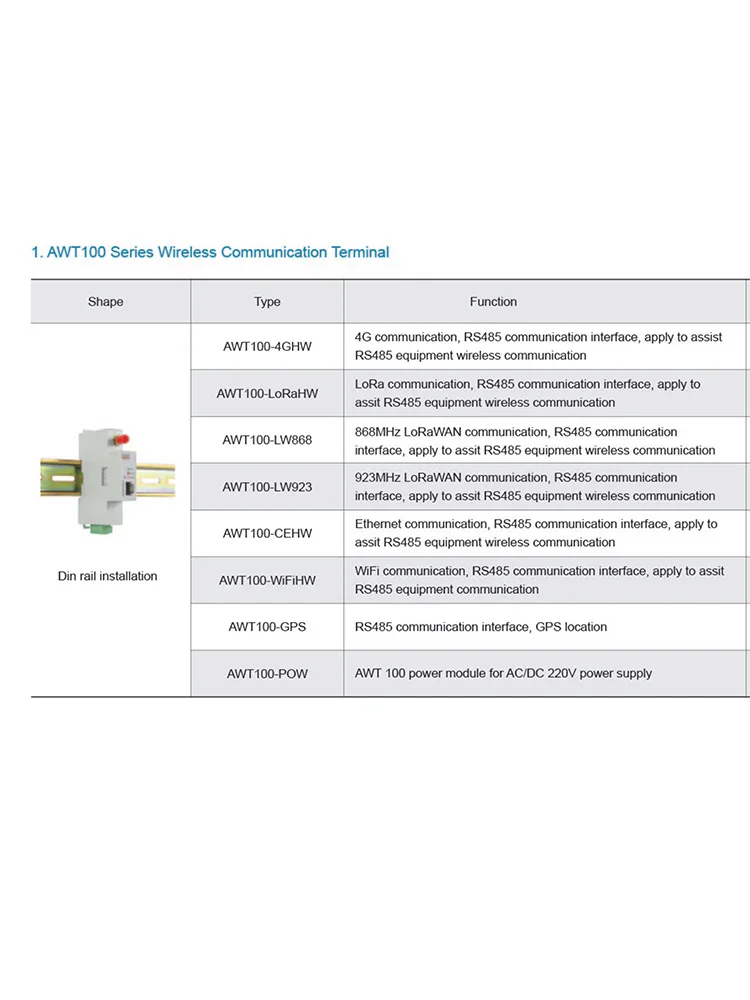

AWT100 wireless communication terminal is a new wireless data acquisition device launched by Acrel. The up link communication includes 2G, 4G, NB, LoRa, LoRaWAN and other communication modes. The down link interface provides a standard RS485 data interface,which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable.

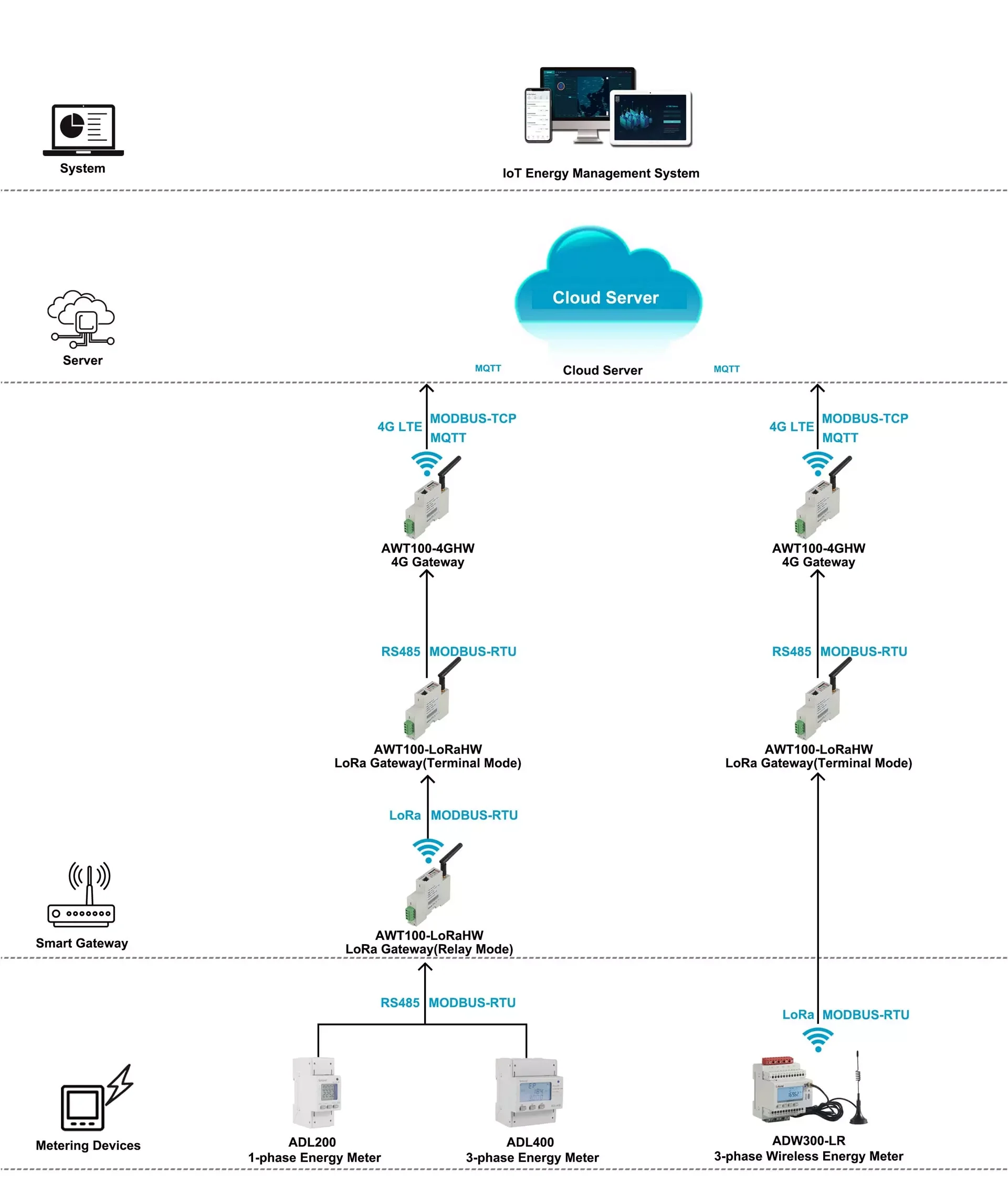

● LoRa Mode: Terminal Mode&Relay Mode ● Upstream (Terminal Mode): RS485 (MODBUS-RTU) ● Downstream (Terminal Mode): LoRa (MODBUS-RTU) ● Upstream (Relay Mode): LoRa (MODBUS-RTU) ● Downstream (Relay Mode): RS485 (MODBUS-RTU) ● Power Supply: 24Vdc (default); 85~265Vac/Vdc (via AWT100-POW Module) ● Standard&Certificate: CE-RED; IEC; EMC; LVD

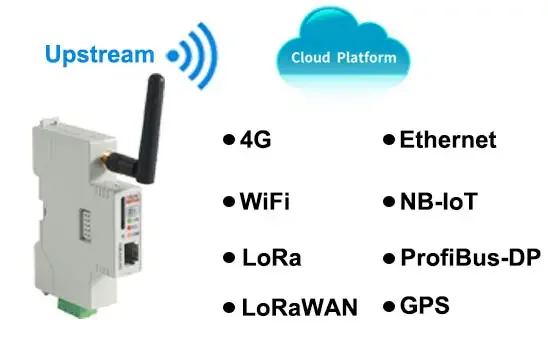

Various Upstream Communication Methods
● 4G (Support Global Frequency Bands) ● WiFi ● LoRa ● LoRaWAN ● Ethernet ● NB-IoT ● ProfiBus-DP ● GPS

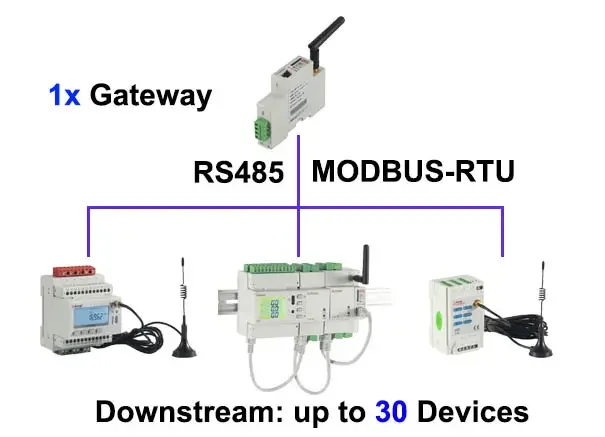

Collect Data from up to 30 Devices
● Downstream Communication: RS485 ● Downstream Protocol: MODBUS-RTU ● Data acquisition of 5 register address fields each device

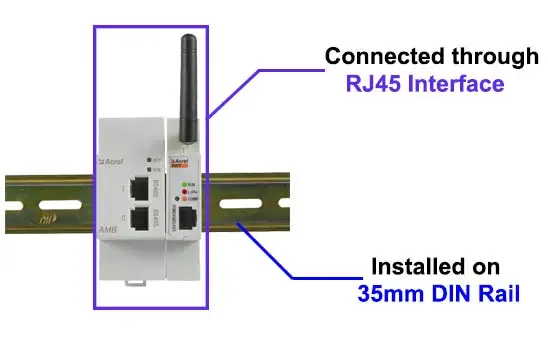

Easy Installation
● RJ45 Interface ● 35mm standard DIN Rail

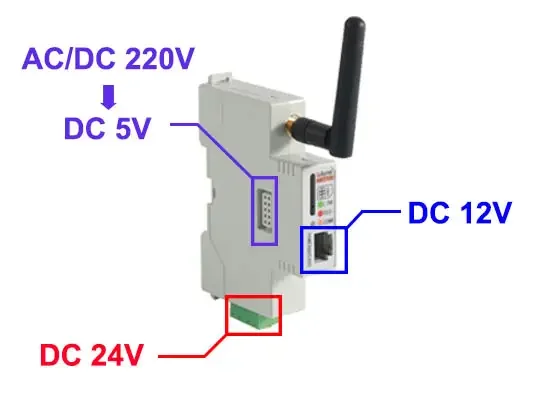

Three Optional Power Supply
● DC 12V
● DC 24V
● AC/DC 220V→DC 5V (paired with AWT100-POW)
● 3 types of Power Supply can’t co-exist
● DC 24V
● AC/DC 220V→DC 5V (paired with AWT100-POW)
● 3 types of Power Supply can’t co-exist
Function & Parameter

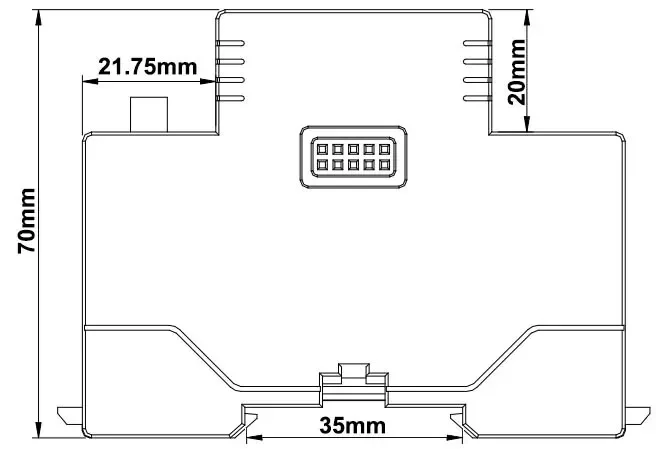

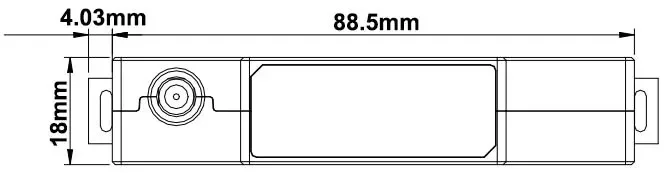

Dimension & Installation
Wiring Instruction

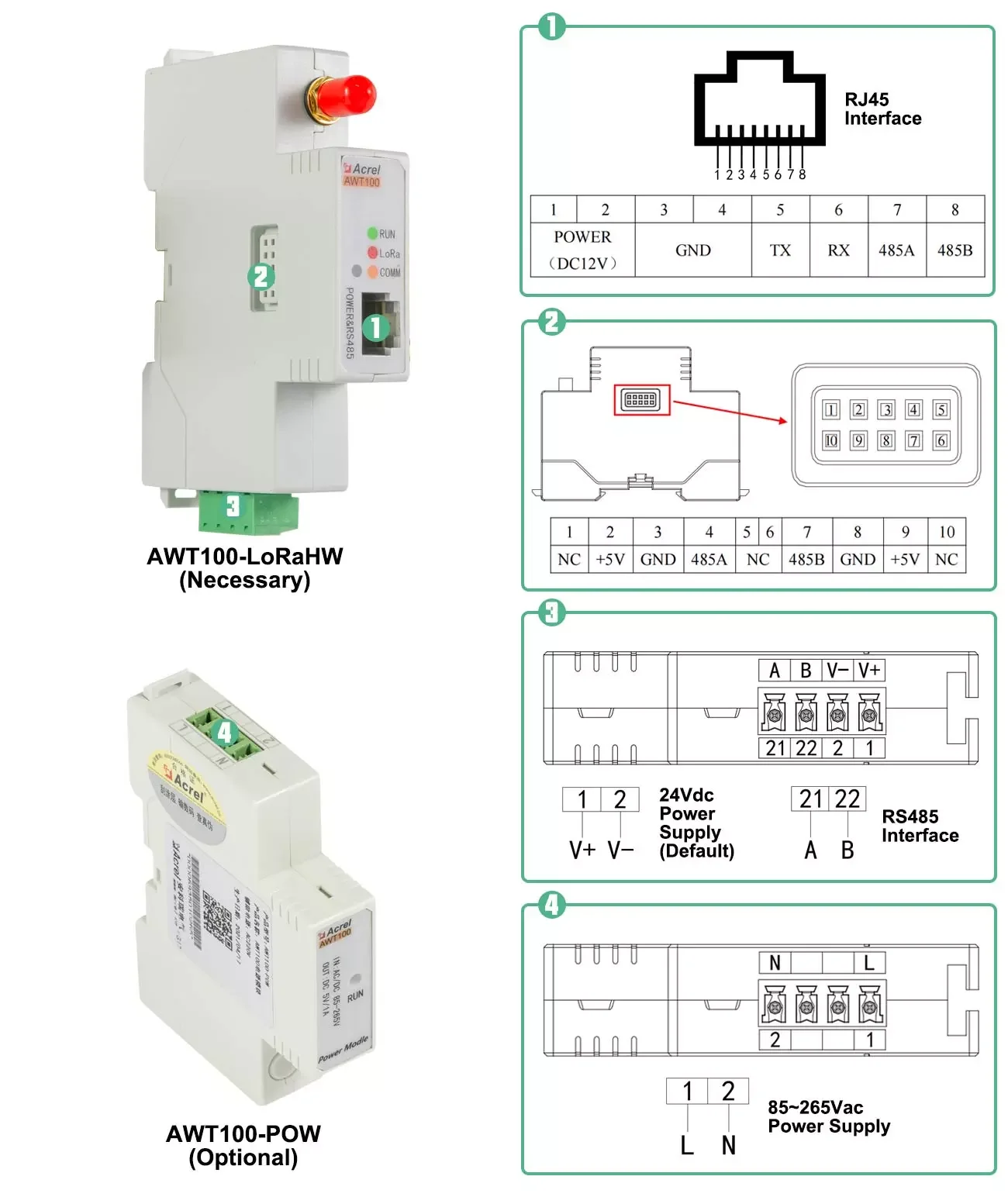

PIN/Terminal Overview of AWT100-4GHW Gateway and AWT100-POW Power Module

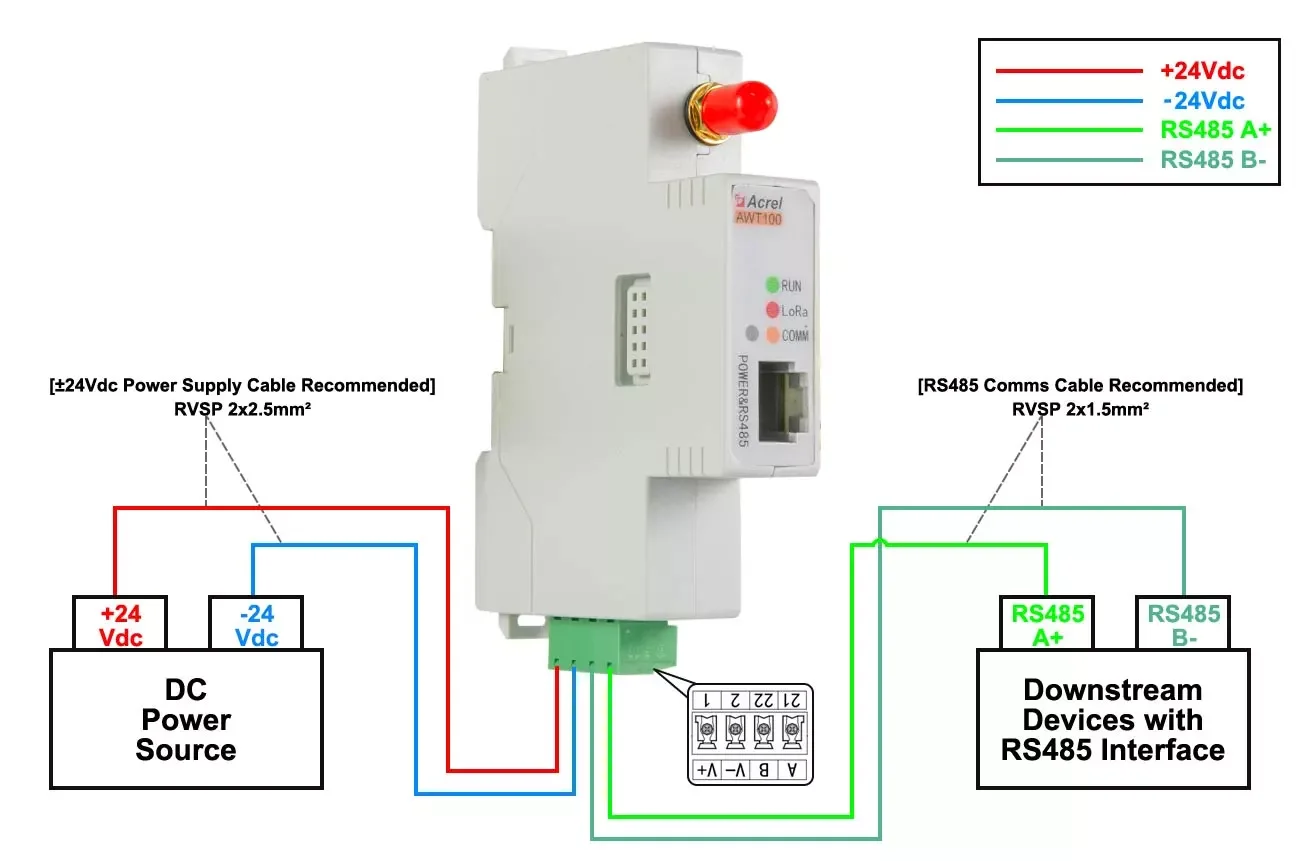

Wiring Diagram of AWT100-4GHW (24Vdc Power Supply via default Configuration)

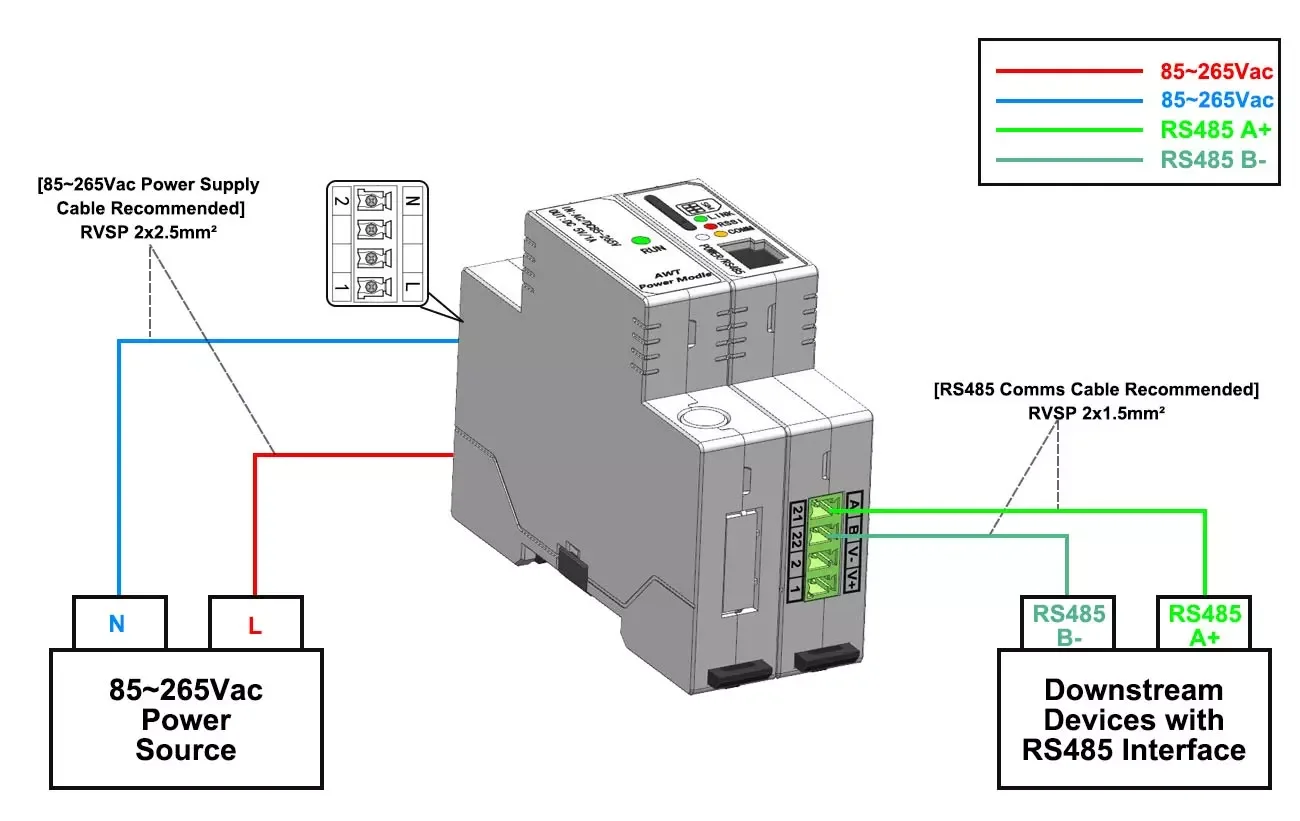

Wiring Diagram of AWT100-4GHW (85~265Vac Power Supply via AWT100-POW Power Moduel)
