Skl Rail Clip Skl 14 Rail Clip
- 2000000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Product Details
Application: | Railway Rail | Secondary Or Not: | Non-secondary |
Product Description

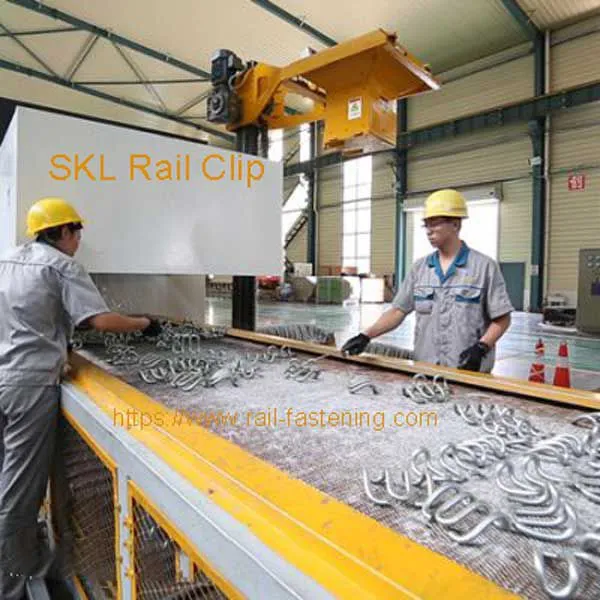

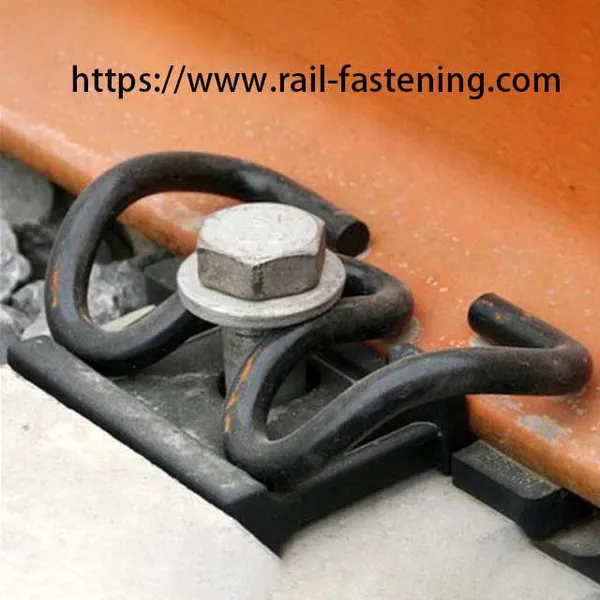

SKL Rail Clip are used with railway sleeper to fasten rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged rail clips are considered to be better than other metal forming process due to most uniform microstructure.
Technical Parameters of SKL Rail Clip
Name | SKL Rail Clip | |||
Type | Skl clip (SKL1,SKL3,SKL12,SKL14) | |||
E clip (e1809, e2006,e2007,e2009,etc) | ||||
Or the type by customers' drawings | ||||
Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
Hardness | For e clip: 44-48HRC For skl clip: 42-47HRC | |||
Fatigue life | for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking | |||
Surface | plain (oiled), Oxide black, color painting, HDG, Zinc Plating... | |||
Standard refers | DIN17221, BS970, GB/T1222 |
We can aslo produce other rail clip types:
E-type Clip: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.
SKL Tension clips: SKL1, SKL3, SKL12, SKL14, SKL75
PR Series Clips: PR85, PR309A, PR401, PR415, PR401A
Other Rail Clips: Nabla clips, D type rail clip, Fast clip, gauge lock clip, Deenik clip
Non standard rail clips: You provide Rail Clips drawings and we will produce for your customized requirements.
Raw Material for Elastic Rail Clip
Elastic rail clips are made of high quality spring steel bar. Spring steel is used in the manufacture of springs and other elastic parts prominently in automotive and industrial suspension applications. These steels are generally low-alloy Manganese, medium-carbon steel or high-carbon steel with a very high yield strength. Spring steel has excellent comprehensive performance like mechanical properties, performance by the bullet-proof, fatigue, hardenability, physical and chemical properties. The raw materials of elastic rail clip mostly include 55Si7, 60Si7, 65Si7, 55SiCr7, 60Si2Mn, 60Si2Cr, 55Si2Mn, and 38Si7 grade of spring steel.
COMPANY INFORMATION
Kunshan Signum Machinery Technology Co.,Ltd is a professional supplier of Din Steel Rail.
We can also provide railway fastening products according to customers' drawings and samples.Our main products are as following:
1. Screw spike, Coach screw, Drive screw, Sleeper screw, Dog spike, Railroad spike, Lock spike, Cut spike,etc.
2. Rail clip, Tension clamp,SKL clip, Pandrol clip, Deenik clip.
3. Swivel bolts, Track bolt, Special bolts, U bolts, J bolts, Anchor bolts, Foundation bolts, Stud bolts, Rod bolts, Curved bolts, Tunnel bolts.
4. Tie plate, Base plate, Rail plate, Rail fixing base, Rail Pads, Sole plate, Sole pad
5. Fish plate, Joint bar, Rail joint, Splice bar.
6. Track bolt, T bolt, Rail bolt, Clamp bolt, Inserted bolt, Clip bolt, Fish bolt, Square bolt, Rod bolt, rail joint bolt.
7. Clamp plate, Rail spring clamp, Anchor plate, Steel clip.
8. Rail Shoulder, Rail sleeper Inserts, Rail Anchors for rail sleepers.
9. Plastic dowel, Guide plate, Nylon insert.
10. Chinese Standard Steel Rail: GB/T11264-89 9kg 12kg 15kg 22kg 30kg steel light rail; Q/YYG001-2008 (formerly YB222-63) 4kg 8kg 18kg 24kg steel light rail. GB2585-2007 38kg 43kg 50kg 60kg 75kg steel heavy rail. YB/T5055/93 QU70 QU80 QU100 QU120 crane rail.
11. German Standard Steel Rail: DIN536 A45 A55 A65 A75 A100 A120 A150 Crane Rail.
12. American Standard Steel Rail: ASTM-A1 ASCE25, ASCE30, ASCE40, ASCE60,ASCE75,ASCE85,90RA,115RE,136RE,175LBs Steel Rail.
13. British Standard Steel Rail: BS11-1985 BS50O,BS60A,BS60R,BS70A,BS75A,BS75R, BS80A,BS80R,BS90A, BS100A, BS113A.
Please feel free to contact us for more information.
