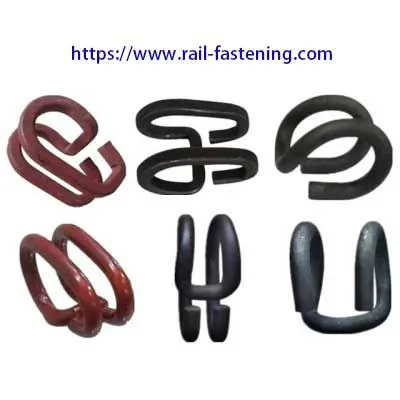

III Type Rail Clip E Rail Clip
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
You May Like
Product Details
| Application | Railway Rail | Secondary Or Not | Non-secondary |
Product Description
The rail elastic clips (also called rail clip, elastic rail clip )are used with railway sleeper to fasten rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged rail clips are considered to be better than other metal forming process due to most uniform micro-structure

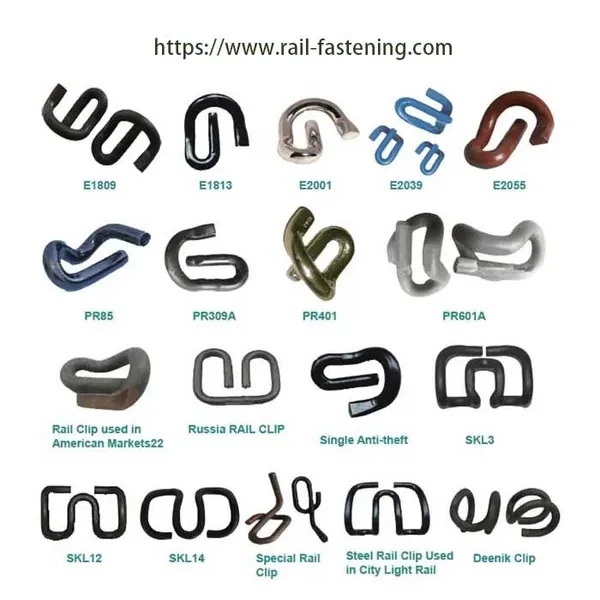

For meeting various needs of clients, Signum supplies E-clips, PR clip, SKL clips, Russia rail clip, Deenik clip, Nabla spring blade, KPO rail calmp, gantrex rail clips, fast clip, crane rail clip and other special clips for rails. We have proffesional production cline to design and manufacture standard rail clips or nonstandard clips.
Hot Rail clips from Kingrail | |||
Series | Model | Spec. | Hardness |
E rail clip | III type rail clip | ø18 | 44-48HRC |
E1609 rail clip | ø16 | ||
E1809 rail clip | ø20 | ||
E1804 rail clip | ø18 | ||
E1806 rail clip | ø18 | ||
E1813 rail clip | ø18 | ||
E2001 rail clip | ø20 | ||
E2007 rail clip | ø20 | ||
E2009 rail clip | ø20 | ||
E2039 rail clip | ø20 | ||
E2055 rail clip | ø20 | ||
E2056 rail clip | ø20 | ||
E2063 Rail Clip | ø20 | ||
E2091 Rail Clip | ø20 | ||
PR rail clip | PR85 Rail Clip | ø13 | 44-48HRC |
PR309A Rail Clip | ø19 | ||
PR401 Rail Clip | ø20 | ||
PR415 Rail Clip | ø20 | ||
PR601A Rail Clip | ø22 | ||
Vossloh clip& Forged rail clip | SKL 1 Rail Clip | ø13 | 42-47HRC |
SKL 3 Rail Clip | ø13 | ||
SKL 12 Rail Clip | ø13 | ||
SKL 14 Rail Clip | ø14 | ||
Special rail clip | Special rail clip | ø13 | |
Russia rail clip | Russia rail clip | ø18 | |
Deenik clip | Deenik clip | ø25 | |
Anti-vandal clip | Anti-vandal clip | ø18 | |
Fast clip | Fast clip | ø15 | |
GL1419 | GL1419 | ø14 | |
Nabla Spring blade | Nabla Spring blade | ||
KPO/rail clamp | KPO/rail clamp | ||
RAIL CLIP GANTREX | RAIL CLIP GANTREX | ||
We can also produce customized rail clips according to your drawings or samples. | |||
