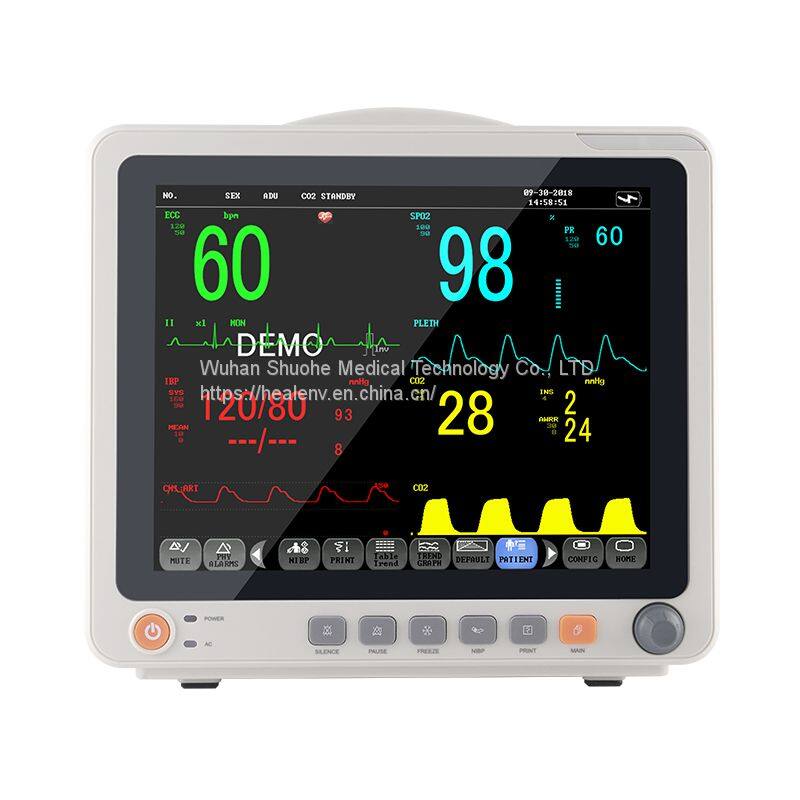

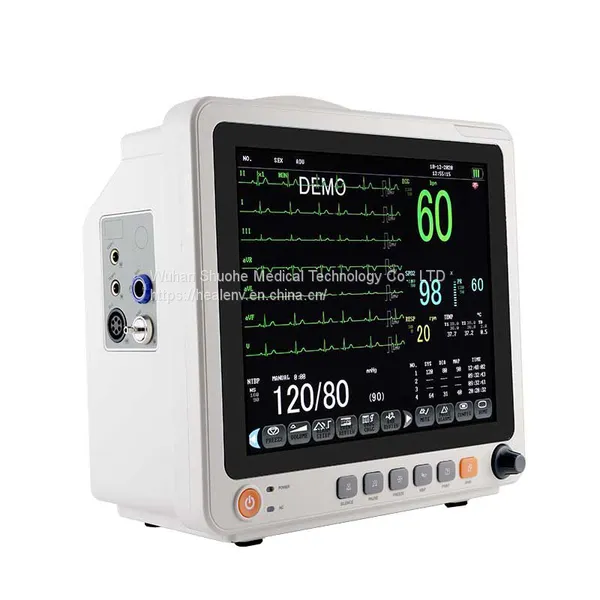

PM12B Multi-Parameter Patient Monitor

Features

v  High-resolution touch-screen for easy operation

v  12.1 inch color display with 800*600 resolution.

v  USB interfaces support easy software upgrade

v  Three Working Modes: Monitoring, Surgery and Diagnosis.

v  Multi-display modes suitable for different applications:

Standard Interface, Large font, ECG Standard Full Display, OXY , Trend Table, BP Trend.

v  Built-in high capacity battery up to 2 hours of continuous work

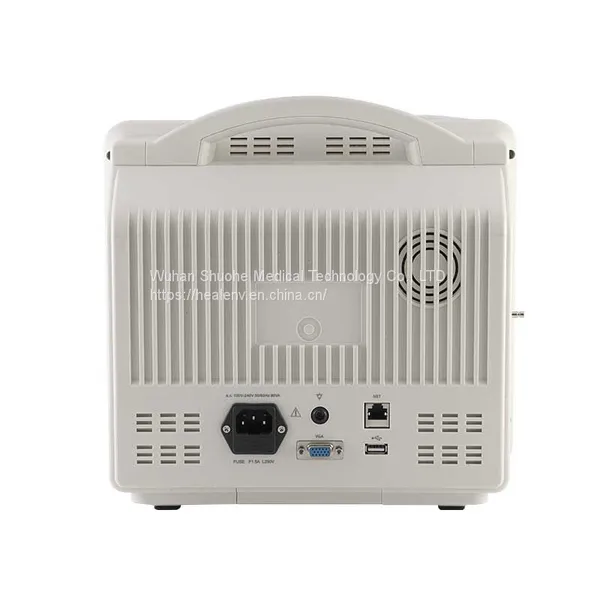

v  VGA output for external display

Technique Specification

ECG

v  Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)

v  Gain: ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV

v  Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)

Resolution: 1 BPM

Accuracy: ±1%

Sensitivity >200 uV(Peak to peak)

v  ST measurement range: -2.0 ~ +2.0 mV

Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater

Other Range: unspecified

v  Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s

v  Bandwidth:

n  Diagnostic: 0.05~130 Hz

n  Monitor: 0.5~40 Hz

n  Surgery: 1~20 Hz

SPO2

v  Measuring Range: 0 ~ 100 %

v  Resolution: 1%

v  Accuracy: 70% ~ 100% (±2 %)

v  Pulse Rate: 20-250 BPM

v  Resolution: 1 BPM

v  Accuracy: ±3 BPM

NIBP

v  Method: Oscillometry

v  Measure mode: Manual, Auto, STAT

v  Unit: mmHg, kPa

v  Measure and alarm range:

n  Adult Mode

n  SYS     40 ~ 280 mmHg

n  DIA       10 ~ 225 mmHg

n  MEAN 20 ~ 240 mmHg

n  Pediatric Mode

n  SYS  40 ~ 220 mmHg

n  DIA  10 ~ 160 mmHg

n  MEAN  20 ~ 170 mmHg

n  Neonatal Mode

n  SYS     40 ~ 135 mmHg

n  DIA       10 ~ 100 mmHg

n  MEAN  20 ~ 110 mmHg

v  Resolution: 1mmHg

v  Accuracy: ±5mmHg

RESP

v  Method: Impedance between RA-LL or RALA

v  Measurement Range:

Adult: 10 ~ 120 BrPM

Neonatal / Pediatric: 7 ~ 150 BrPM

v  Resolution: 1 BrPM

v  Accuracy: ±2 BrPM

TEMP

v  Measure and Alarm Range: 0 ~ 50 °C

v  Resolution: 0.1°C

v  Accuracy: ±0.1°C

Standard Parameters:

ECG, RESP, TEMP, NIBP, SPO2, PR

Optional Parameters:

1. Recorder ( Printer)

2. Central monitoring system

3. Dual IBP

4. Etco2

5. 12-lead ECG;

6. Nellcor SpO2;

7. Sun Tech NIBP.

Standard Configuration:

Packing:

v  Single package size: 37*28*35cm

v  Single gross weight: 4.5 KG

v  4 unit per carton, package size: 58*39*75cm, total gross weight 20 KG
