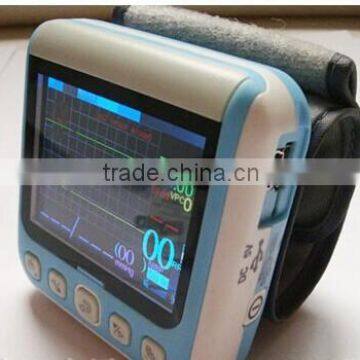

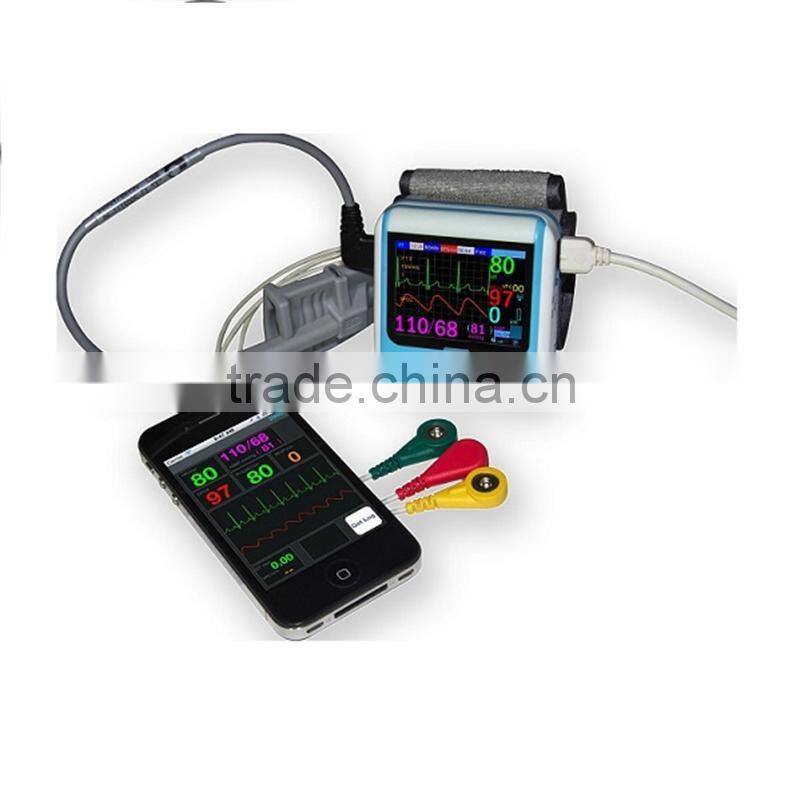

1. JP2011 Portable Multi-Parameters Monitor
T he JP2011 terminal devices include series products:
an intergraded multi-parameters monitor and individual parameter monitors. The intergraded multi-parameters monitor with a smart size can simultaneously measure the ECG, Heart rate, Respiration, Blood pressure, SpO2 and Pulse rate. The individual parameter monitor can respectively measure the Blood pressure, Sp02 or the both. All the devices can communicate with other mobile terminals by energy-saving wireless Bluetooth 4.0.
Portable monitor Display Size: 2.4 inch TFT colour displayer. Resolution: 320*240
Portable monitor Display waveforms: 2 channels waveforms of ECG, respiration, blood pressure and SpO2 can be both displayed
Portable monitor ECG: With the function of abnormal data store, daily data store and trend display
Portable monitor NIBP: Manual measurement. Automatically identify the adult and child. System can adjust the maximal pressure for adult and child. The blood pressure waveform can be displayed in real-time
Portable monitor SpO2: Anti-low perfusion and motion artifact
Portable monitor Trend display: Display the trend of ECG, blood pressure, SpO2, ST segments, premature and respirations in 96 hours
Portable monitor Alarm modes: Visible alarming reminder and speaking voice alarming reminder
Portable monitor Working duration: 8 hours continuing monitoring
Portable monitor Wireless: Bluetooth 4.0
Portable monitor E-Manual: Embedded e-manual for self reading
Portable monitor Size: 7cm*7cm*2.6cm
Portable monitor Weight: 150g
Portable monitor Available usages: Used for the monitoring and recording of the ECG, Heart rate, Respiration, blood pressure and SpO2.
Portable monitor This device is suitable for the general sickroom in the hospital and personal health care.
Portable monitor Can NOT used for intensive care and operation room. D
o NOT equip defibrillator proof function.
Portable monitor Opertional function: Portable printer

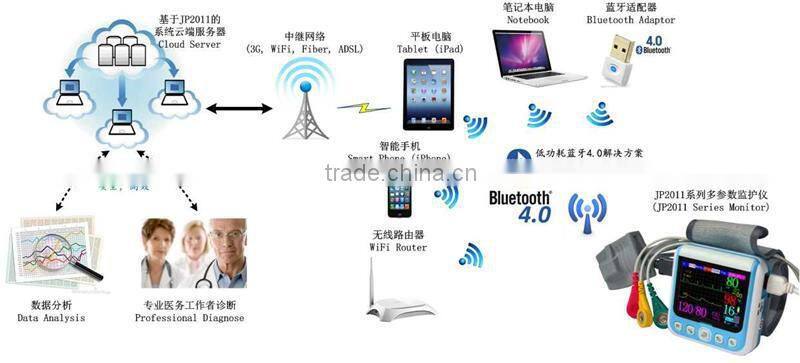

2. Mobile Hubs
3. Web cloud server

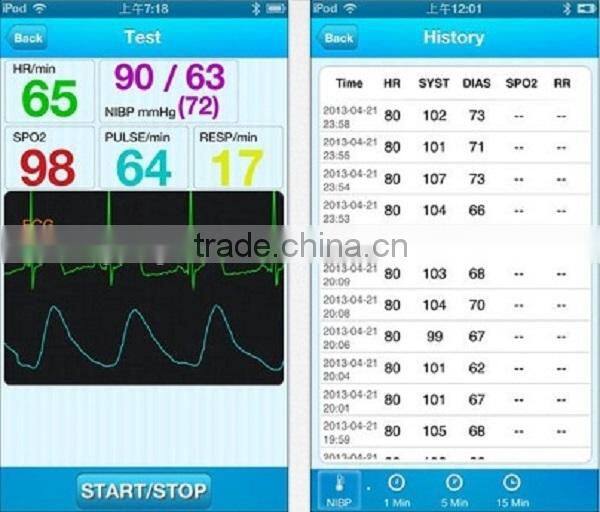

Each mobile device (Smart phone or tablet) with the Bluetooth 4.0 function can be used as the hub for our terminal JP2011 device. Via the application on the mobile device (‘ihealthmonitor’),
/app/id639073690
the mobile hubs can store and upload the measured results from JP2011 device. The mobile hubs can also control the blood pressure measurement. All the vital signs including ECG, blood pressure, SpO2, pulse rate and respiration can be transmitted to the hubs via Bluetooth 4.0 techniques. Meanwhile, the 2 waveforms of the measured results can be transmitted to the mobile hubs and displayed in real time. The mobile hubs can manage the received data and display the measured results The mobile hubs can also upload the measured results to the web “cloud” servers via le WiFi or 3G mobile networks. The mobile hubs can also download the feedback information from the web “cloud” servers.

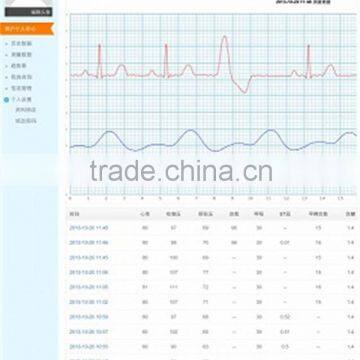

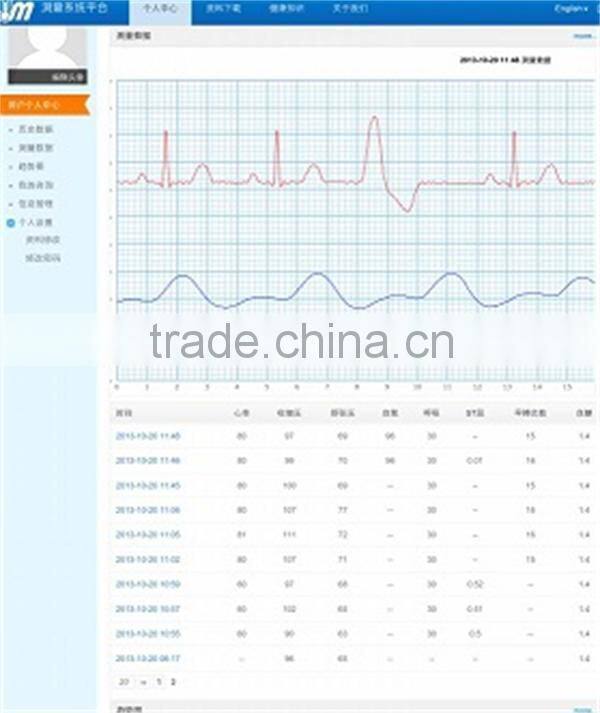

The web cloud sever is designed for cross operation systems. Both the computers and the smart phones can fast access the web cloud server. This web cloud server supports the Windows system, Linux system, MAC system, iOS system and andruid system. The measured results of ECG, blood pressure, SpO2, pulse rate and respiration can be displayed on the screen. The waveforms of the ECG can also be displayed on screen. Meanwhile, the web cloud server can also analysis the measured results and diagnose the ST segment offset, premature and other abnormal ECG results. The user can have the point-to-point medical service from the professional doctors and persons.
