Potentiometer: 8mm，Horizontal, 10K Ohm+/-10%, with Rotary Switch, Shaft Length 15mm, Used for Walkie Talkies, Radios and Other Instruments and Equipment

      We are Dongguan Asher Technology Co., Ltd. in Guangdong Province, China。mainly engaged in customization, production, and export of 8mm, 9mm, 11mm, 12mm and other series of rotary encoder switches and potentiometers.

      Covering types such as incremental encoder switches, absolute value encoder switches, logic encoder switches, Gray code encoder switches, linear potentiometers, etc.
      The product has the characteristics of miniaturization, precise coding and positioning, uniform feel, low noise, long service life, and good stability. There are corresponding IP67 and IP68 waterproof products available at the same time.
      Our company's products are currently widely used in fields such as home appliances, smart homes, mixing consoles, center consoles, relay stations, walkie talkies, radios, and automotive electronics.

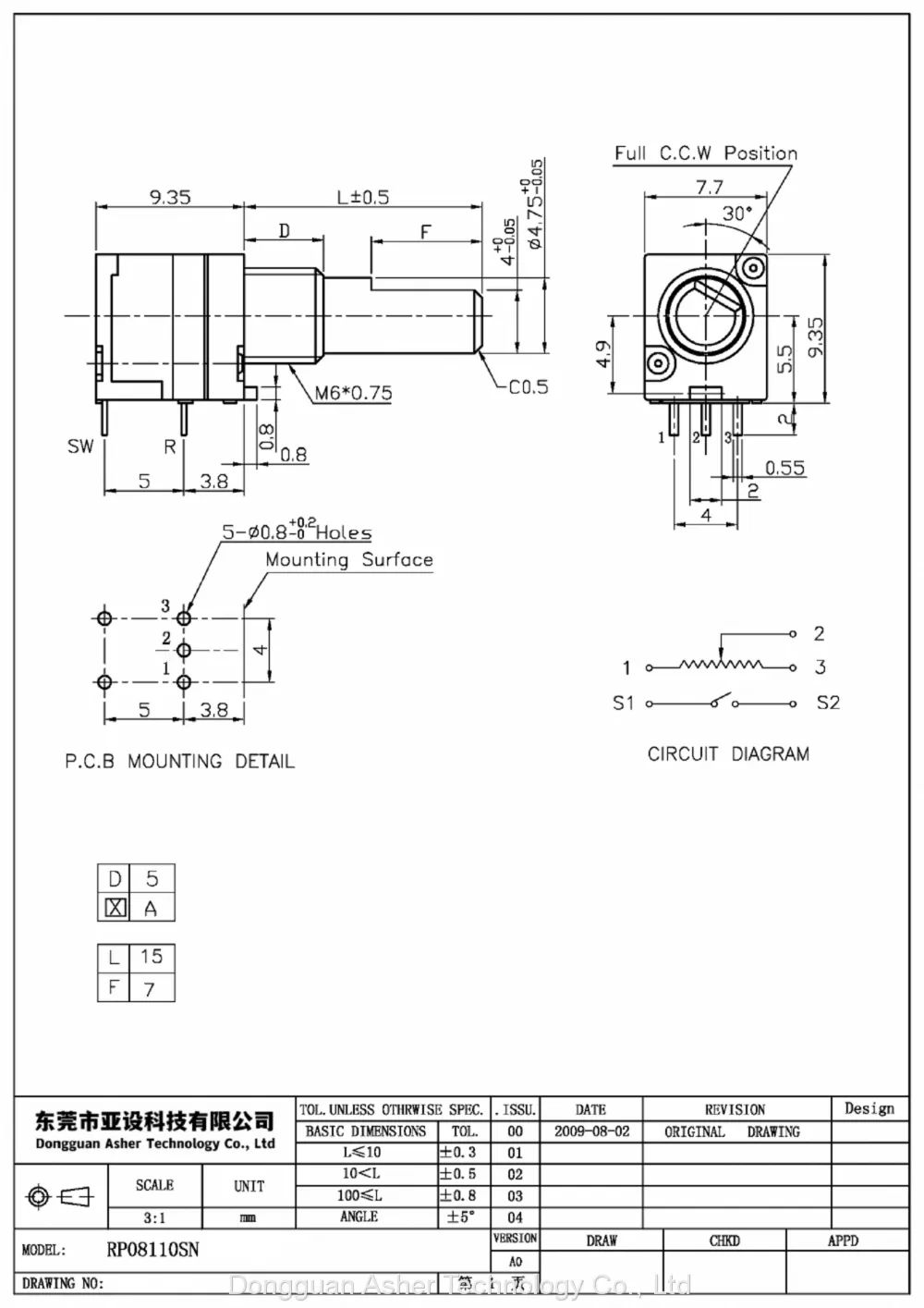

1.1 Body size: 7.7mm x 9.35mm x9.35mm
1.2 Total length of shaft: 15mm
1.3 Shaft sleeve length: 5mm
1.4 Mounting style: Horizontal
1.5 TotalRotational Angle: 300°+/-5°
1.6 Rotationai torque: 20-200gf.cm
1.7 Push-pull strength of shaft: 7Kgf Max
1.8 Shaft wobble:0.7*L/30mm P-P Max.
2. Electrical Characteristic:
2.1 Total resistance: 10K ohm
2.2 Total resistance tolerance: 10+/-%
2.3 Resistance law(Taper): A Taper
2.4 Power rating: 0.025W
2.5 Max operating voltage:AC 50V;DC 10V
2.6 Insulation resistance: 100 Mohm Min. at 300VDC
2.7 Withstand voltage:300V AC for 1 minute

3.Endurable Characteristic:
3.1 Rotational life : 30000cycles
3.2 Operating temperature range : -30ºC to +60ºC

4. Switch Characteristic:
4.1 Switch current: DC 5V 10mA
4.2 Switch Mode: rotary switch
4.3 Rotational torque: 80-300gf.cm
4.4 Rotational life: 30,000cycles
