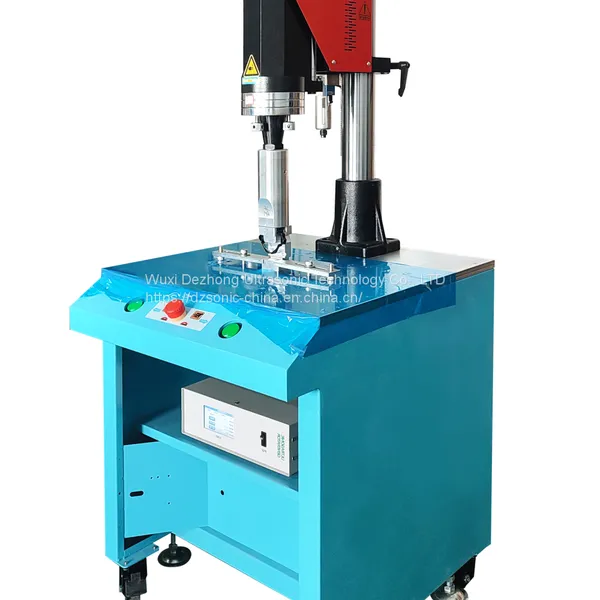

Help CenterDigital Ultrasonic Welding Machine 15K3200W
Related Products
-
Simulated Ultrasonic Welding Machine 15K3200WNegotiableMOQ: 180 Kilograms -
Simulated Ultrasonic Welding Machine 15K4200WNegotiableMOQ: 300 Kilograms
-
Digital High Power Ultrasonic Welding Machine 15K4200W/5000W/8000WNegotiableMOQ: 300 Kilograms
-
Simulated Ultrasonic Welding Machine 15K4200WNegotiableMOQ: 300 Kilograms
-
Digital Ultrasonic Welding Machine 15K4200WNegotiableMOQ: 300 Kilograms
• Frequency: 15KHz
• Power: 3200W
• 3200W power output, suitable for welding larger plastic products
• Floor type integral, with movable wheel for easy handling, can be fitted with soundproof housing
• Full touch human-machine interface, automatic monitoring of fault output, at a glance
• Visualization of welding parameters, which can store the welding condition and quality of each product
• The circuit automatically tracks the transducer frequency in real time, keeping the signal frequency consistent with the resonant frequency of the transducer and working for a long time
• Intelligent frequency control eliminates the inconvenience of manual frequency modulation
• Welding amplitude 10%-100% adjustable (1% accuracy) amplitude compensation
• Welding mode: time, energy, continuous power output
• 4-core 32-bit processor, 485 communication
• Full body CNC machining, heavy casting process, strong steel, beautiful precision
• Feedback spring compression mode, eliminating 20% friction resistance variable
• Imported piezoelectric ceramic transducer, high power, high conversion efficiency
• Horizontal four-point power adjustment, workpiece calibration is convenient
• Two-handed start, front with emergency brake button, can be controlled by external switch
• Hand wheel + rack are used for welding lifting and mold adjustment
• Powerful function, good quality, stable welding
