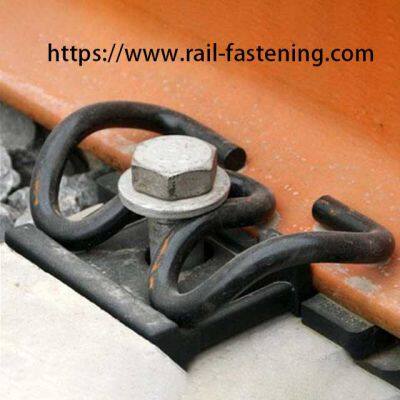

A rail fastening system is a set of fasteners that is used to connect steel rail and railway sleepers. Generally, the railway fastening system is required to have a reliable connection, simple structure, and features of elasticity, shock absorption, and insulation. SKL rail fastening system is one kind of hot rail fastening system in the railway materials market.

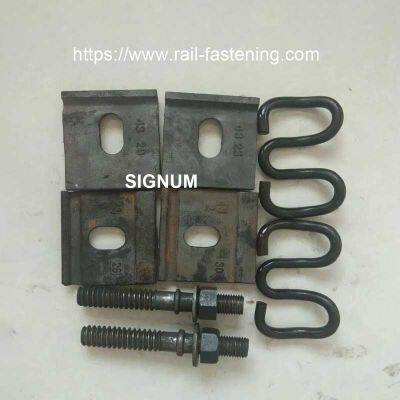

As for the components of the SKL railway fastening system, including SKL rail clips, rail pad, screw spike, tie plate, washer, plastic dowel, track bolt and nuts, etc. Signum Rail could supply customers with all these components, no matter whether the materials are steel, plastic, or rubber.
Specifications of SKL rail fastening system

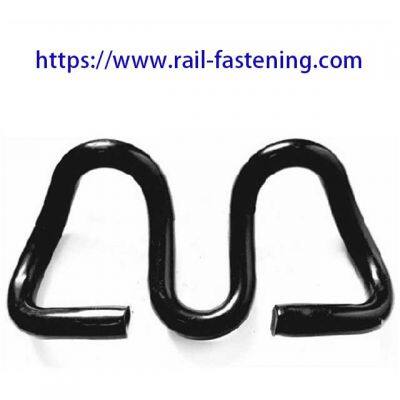

SKL tension clip |
Ss35 screw spike |
Flat washer |
Plastic dowel |
Guide plate |
Rail pad |
|
Pieces required |
2 |
2 |
2 |
2 |
2 |
1 |
Material |
60Si2CrA, 60Si2CrA, 38Si7 |
Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45# |
Q235 |
HDPE, Reinforced Nylon 66 (PA66) |
Reinforced Nylon 66 (PA66) |
EVA, or rubber |
Size |
skl1,skl3,skl12,skl14 |
M24×150mm |
Uls7 |
For different sizes of screw spike |
UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered |
|
NOTE |
Hardness: 42-47HRC 5 million cycles without breaking. Standard: DIN17221, GB/T1222 |
Standard: ISO898-1, UIC864-1, and NF F500-50 |
Standard: EN10025, EN10139 |
To insert into the concrete sleeper |
Customized products are available. |
|
