Home > Manufacturing & Processing Machinery > Mould > Plastic Mould > Steel Pipe Roll for High Frequency Welded Pipe Mill

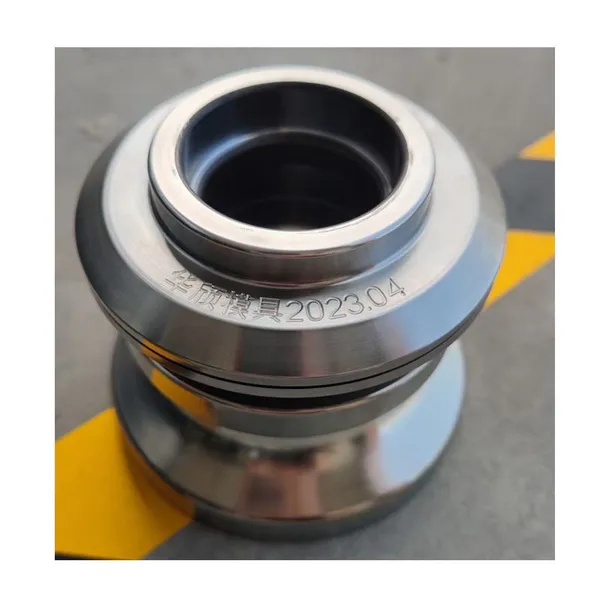

Steel Pipe Roll for High Frequency Welded Pipe Mill
US$ 20 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
HQ-RC002
Product:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan,Shenzhen
Delivery Detail:
15 days
Related Products
-
Roll Dies for ERW Steel Pipe Making MachinesUS$ 500 - 3000MOQ: 1 Set -
Roll Dies for Making Round Steel Pipe Cold Roll Forming TechnologyUS$ 500 - 5000MOQ: 1 Set
-
Roll Dies for Making Square Steel PipeUS$ 300 - 3000MOQ: 1 Set
-
Roll Dies for Making Oval Ellipse Profile Steel PipeUS$ 500 - 5000MOQ: 1 Set
-
Roll Dies for Making Rectangular Steel PipeUS$ 500 - 5000MOQ: 1 Set
Place of Origin
China
Model Number
HQ-RC002
Product
Other
Product Material
Steel
Shaping Mode
Forging Mould
Product Specifications:
Pipe Type |
Specification(mm) |
Tolerance Ranges(±mm) |
Hardness |
Material |
Round Tube |
Φ5-Φ325 |
Roundness±0.05 |
HRC60-63 |
Cr12Mov |
Square Tube |
F10×10-F300×300 |
Flatness±0.04 |
HRC60-63 |
Cr12Mov |
Rectangle Tube |
F10×20-F250×100 |
Flatness±0.04 |
HRC60-63 |
Cr12Mov |
Material:
NO. |
Material Science |
Varieties |
1 |
Cr12Mov |
Dongbei special steel Cr12MOV/Daye special steel Cr12Mov |
2 |
SKD11 |
Daye Special steel SKD11/Taiwan SKD11/Japan SKD11 |
3 |
D2 |
Daye special steel D2/Taiwan D2 |
Heat Treatment:
NO. |
Treatment method |
Roller HRC |
1 |
Vacum Heat Treatment |
HRC61-63 |
2 |
Vacum gas quenching and minus 200°C degrees, cooling, tempering, to improve the hardness. |
HRC63-65 |
