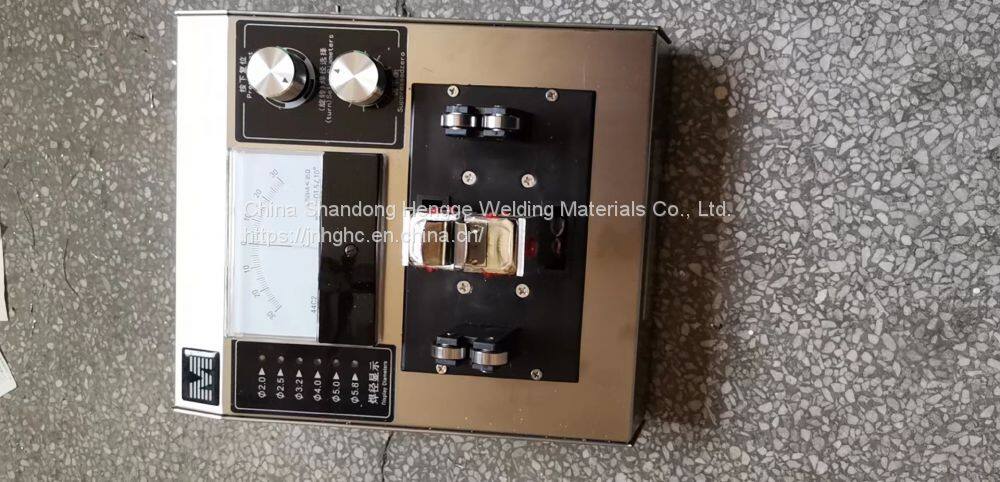

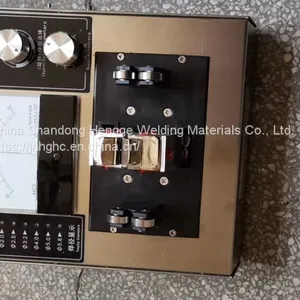

Electrode Eccentricity Instrument TY-3C Electrode Eccentricity Measuring Instrument//Electrode Production Line EquipmentShandong Hengge Welding Material Co., Ltd. is a manufacturer specializing in mechanical equipment, welding electrode accessories and auxiliary mechanical equipment for large, medium and small welding electrode production lines. The main supply: small welding electrode production equipment, automatic welding electrode production machinery, large welding electrode production line, welding electrode eccentric instrument, common wire cutter, high-speed wire cutter, box dryer, chain automatic dryer and other supporting equipment, various welding electrode technical formulas, various welding electrode accessories, surfacing covered electrode, tungsten carbide alloy covered electrode, stainless steel covered electrode, cast iron welding electrode, underwater welding electrode, underwater cutting covered electrode, electroslag welding nozzle covered electrode and so on.Brief introduction of welding rod eccentricity measuring instrument productsThere is a bridge circuit composed of rectifier in the electrode eccentric center, and the ammeter is used as the current detector. Figure 1 shows its simple working principle diagram. The main working principle of the instrument is that two probe coils L1 and L2 are energized with alternating current. If the steel covered electrode (the welding core is made of iron and porcelain) is placed between the two head coils, and the coating is made of non-iron and porcelain, if covered electrode is eccentric, the welding core is located in the asymmetric position between the two probe coils, that is, Δ 1 ≠Δ2. At this time, the impedance of the two probe coils is asymmetric, which makes the bridge that is initially balanced out of balance, and the pointer deviation of the electric meter is direct.Usage: Electrode eccentricity measuring instrument is used to measure the eccentricity of steel electrode in electrode factory or laboratory.Measuring range: covered electrode diameters are: φ Φ2.0mm, φ Φ2.5mm, φ Φ3.2mm, φ Φ4.0mm, φ Φ5.0mm and φ Φ5.8mm respectively.Working temperature: 10℃ ~ 40℃, and relative humidity is not higher than 90%.Instrument power supply: rated voltage is 200 volts and 50 hertz, and the power consumption is not more than 10 watts.With the management concept of "technology, product and service", good service and honest reputation, the company has gone out in response to the "policy" and exported to Africa, Central Asia and Southeast Asia. Our own brand "Hengge" has become a well-known brand for our customers.
