Home > Products > Machine vision lens 8-20 MP > Made In China RV3652 Inner Barrel 360° Inspection 3.0Megapixel FA Lenses 2/3
Made In China RV3652 Inner Barrel 360° Inspection 3.0Megapixel FA Lenses 2/3
US$ 1 - 400
/ Piece
1 Piece(Min. Order)
- shanghai
- T/T PayPal Other
- 3 days
You May Like
-
China Magic Hand Arm Machine Vision Camera Stand is Largely Used for Demo at Lab/institude, University, or Small Factory ( None Automatic ) or Private Inspection to Fix the Camera, Lighting, Lenses; Moving up & Down to Make Working Distance Variable
-
China AOI 1μm Bi-telecentric Lens Ultra Low Distortion Asia Top 3 Fast Lead Time 3 Days Bi-telecentric Lenses Camera Automation Robotic Inspection
-
China Bi-telecentric Lens Made in China Ultra Low Distortion Asia Top 3 Fast Lead Time 3 Days Bi-telecentric Lenses Camera Automation Robotic Inspection
-
PK Fujinon 6mm 2/3" 5.0Megapixel FA Machine Vision Low Distortion Lenses Positioning Measurement AI 3D Computer China Optics
-
Variable Telecentric Lenses Image Size 1.1" φ18.2mm 0.35X~0.7X Magnification Working Distance 78mm TV Distortion
-
China Variable Telecentric Lenses Image Size 1.1" φ18.2mm 0.35X~0.7X Magnification Working Distance 78mm TV Distortion
Product Details
| Place of Origin | China | Model Number | RV3652 |
Product Description

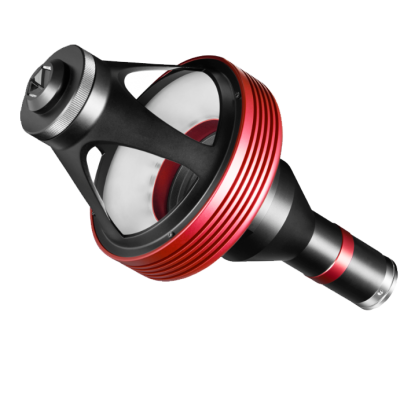

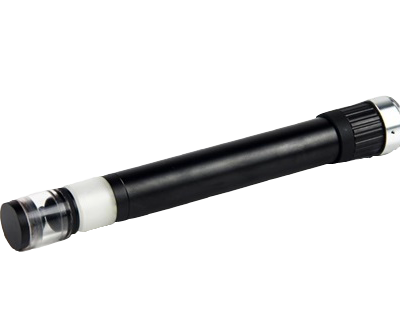

RV3652 Inner Barrel 360° Inspection 3.0Megapixel FA Lenses 2/3" Camera High Resolution Compact Object Lens
* 360°inner barrel inspection
* High resolution & compact size
* Inspect small size object at wide sight
* Application for tube, auto, container, bottle etc. inside inspection
Format | 2/3“ | ||
Resolution | 3.0 Megapixel | ||
Image circle | Φ6.6mm | ||
FOV Dia*Height | 2/3 | Standard 20*23mm ( Min.5*5 / Max.120*123 ) | |
Wavelength | 450~650nm | ||
Diamension | Φ33.6*113.6mm | ||
Mount | C | ||
Diameter (mm) | Height (mm) | Working Distance (mm) | |
5 | 5 | 2.7 | |
10 | 10 | 6 | |
20 | 21 | 11 | |
30 | 31 | 17.2 | |
40 | 41 | 23 | |
50 | 51.2 | 29 | |
60 | 61.4 | 35 | |
80 | 82 | 46.5 | |
100 | 102 | 58.3 | |
120 | 123 | 70 | |
Picture 1 : Tea cup inner side inspection
Picture 2: Stainless steel pipe inner side inspection
