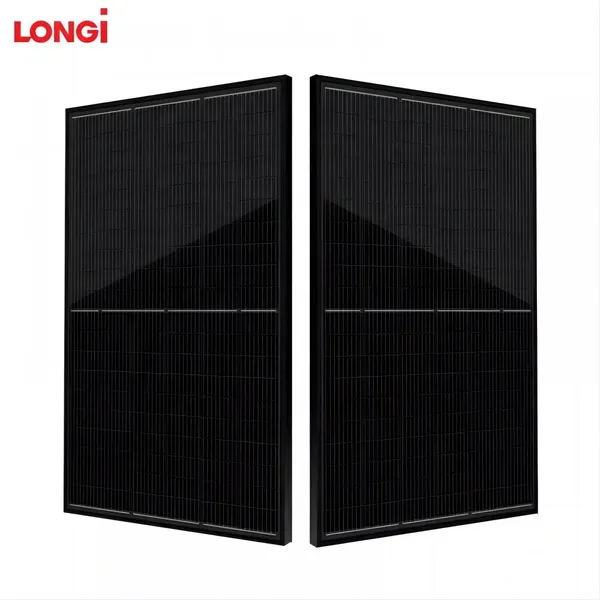

Longi Half Cell 400W 420W 440W All Black Frameless on Grid PV Module System 10 KW for HI-MO 5 Mono Solar Panel Lithium Battery

Longi Half Cell 400W 420W 440W All Black Frameless on Grid PV Module System 10 KW for HI-MO 5 Mono Solar Panel Lithium Battery thumbnail-1
Longi Half Cell 400W 420W 440W All Black Frameless on Grid PV Module System 10 KW for HI-MO 5 Mono Solar Panel Lithium Battery thumbnail-2
Longi Half Cell 400W 420W 440W All Black Frameless on Grid PV Module System 10 KW for HI-MO 5 Mono Solar Panel Lithium Battery photo-1
Longi Half Cell 400W 420W 440W All Black Frameless on Grid PV Module System 10 KW for HI-MO 5 Mono Solar Panel Lithium Battery photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2016
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Boye Industrial Products Trading Co. LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Key attributes
Cell size
182mmx182mm
Other attributes
Place of Origin
Shaanxi, China
Panel Dimensions
1134*1722*30mm
Brand Name
LONGI
Model Number
HI-MO5 m
Panel Efficiency
21.5%
Brand
LONGI
Junction Box
IP68, three diodes
Output Cable
4mm², ±1200mm
Frame
Anodized aluminum alloy frame
Operational Temperature
-40°C~+85°C
Maximum System Voltage
DC1000V(IEC/UL)
Maximum Series Fuse Rating
25A
Protection Class
Class ll

Product details
Specification
Electrical Characteristic
Module Type
LR5-54 HTB-410M
LR5-54 HTB-415M
LR5-54 HTB-420M
LR5-54 HTB-425M
Testing Condition
STC NOCT
STC NOCT
STC NOCT
STC NOCT
Maximum Power (Pmax/W)
410 306
415 310
420 314
425 318
Open Circuit Voltage(Voc/V)
38.83 36.27
38.83 36.46
39.03 36.65
39.23 36.83
Short Circuit Current(Isc/A)
13.70 11.07
13.78 11.13
13.85 11.19
13.93 11.25
Voltage at Maximum Power(Vmp/V)
32.26 29.53
32.56 29.71
32.76 29.89
32.96 30.08
Current at Maximum Power(Imp/A)
12.67 10.37
12.75 10.44
12.83 10.50
12.9 10.56
Module Efficiency(%)
21.0
21.3
21.5
21.8
item
value
Brand Name
LONGI
Model Number
HI-MO5 m
Place of Origin
China Shaanxi
Cell size
182mmx182mm
Panel Dimensions
1134*1722*30mm
Panel Efficiency
21.5%
Junction Box
IP68, three diodes
Output Cable
4mm², ±1200mm
Frame
Anodized aluminum alloy frame
Operational Temperature
-40°C~+85°C
Maximum System Voltage
DC1000V(IEC/UL)
Maximum Series Fuse Rating
25A
Protection Class
Class ll
