Provide technical services for 590C SSD DC motor driver 591C/1500/5/3/0/1/0/00/000

FOB Price

USD $780 - $800 / Piece

1 Piece(Min.Order)

Supply Ability 50 Piece / Pieces per Month
Port shanghai，qingdao，yiwu，shenzhen
Payment Terms:T/T Credit Card
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	EUROTHERM	Place of Origin:	China	Model Number:	590C/1500/5/3/0/1/0/00/000
Type:	Other	Certification:	CE	Torque:	DC
Usage:	Other	Construction:	Other	Efficiency:	IE 1
Protect Feature:	Other	Voltage(V):	110V-690V	Output Power:	45KW
Continuous Current(A):	150A	Speed(RPM):	2000	Commutation:	Brushless

Product Description

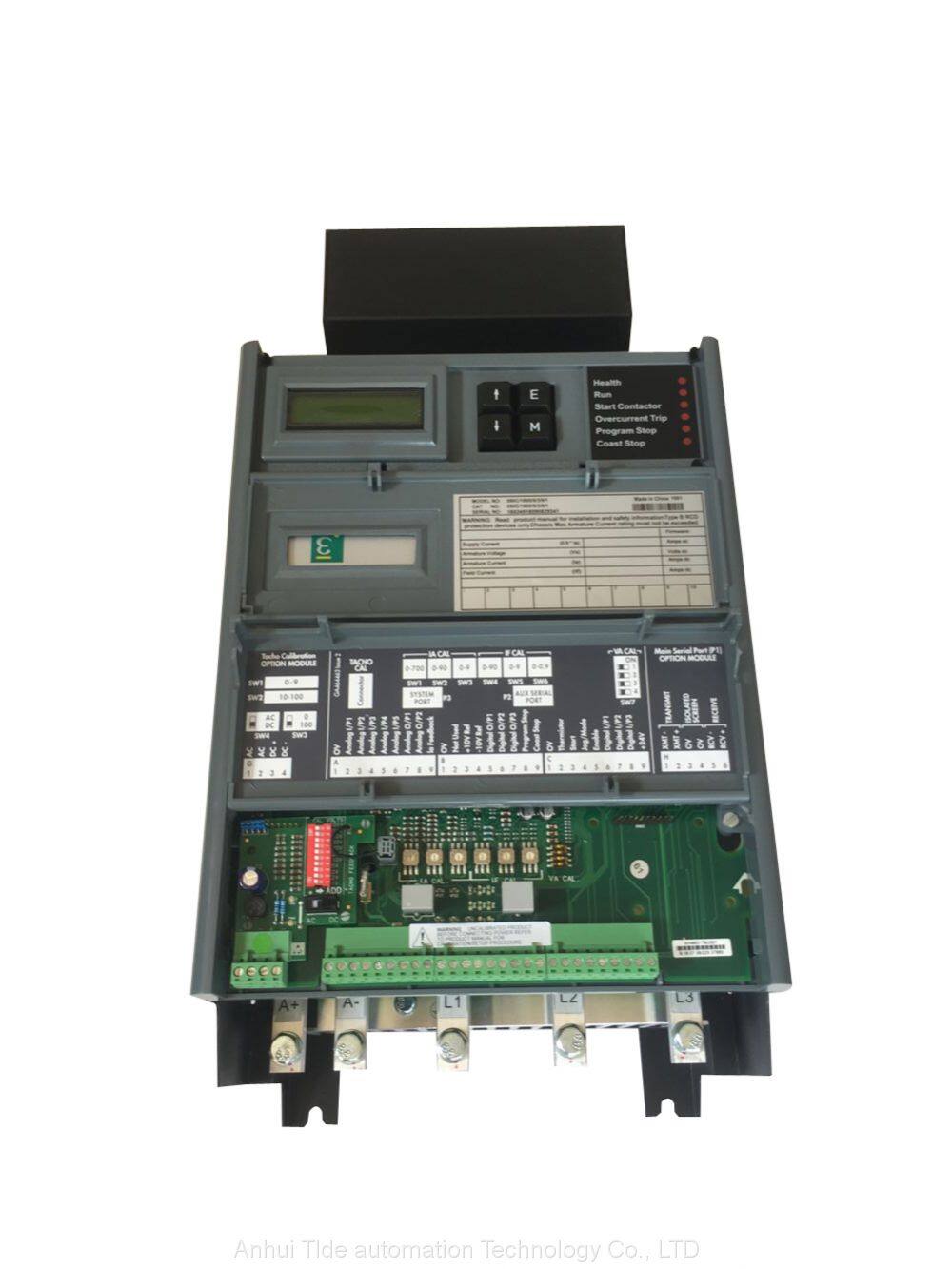

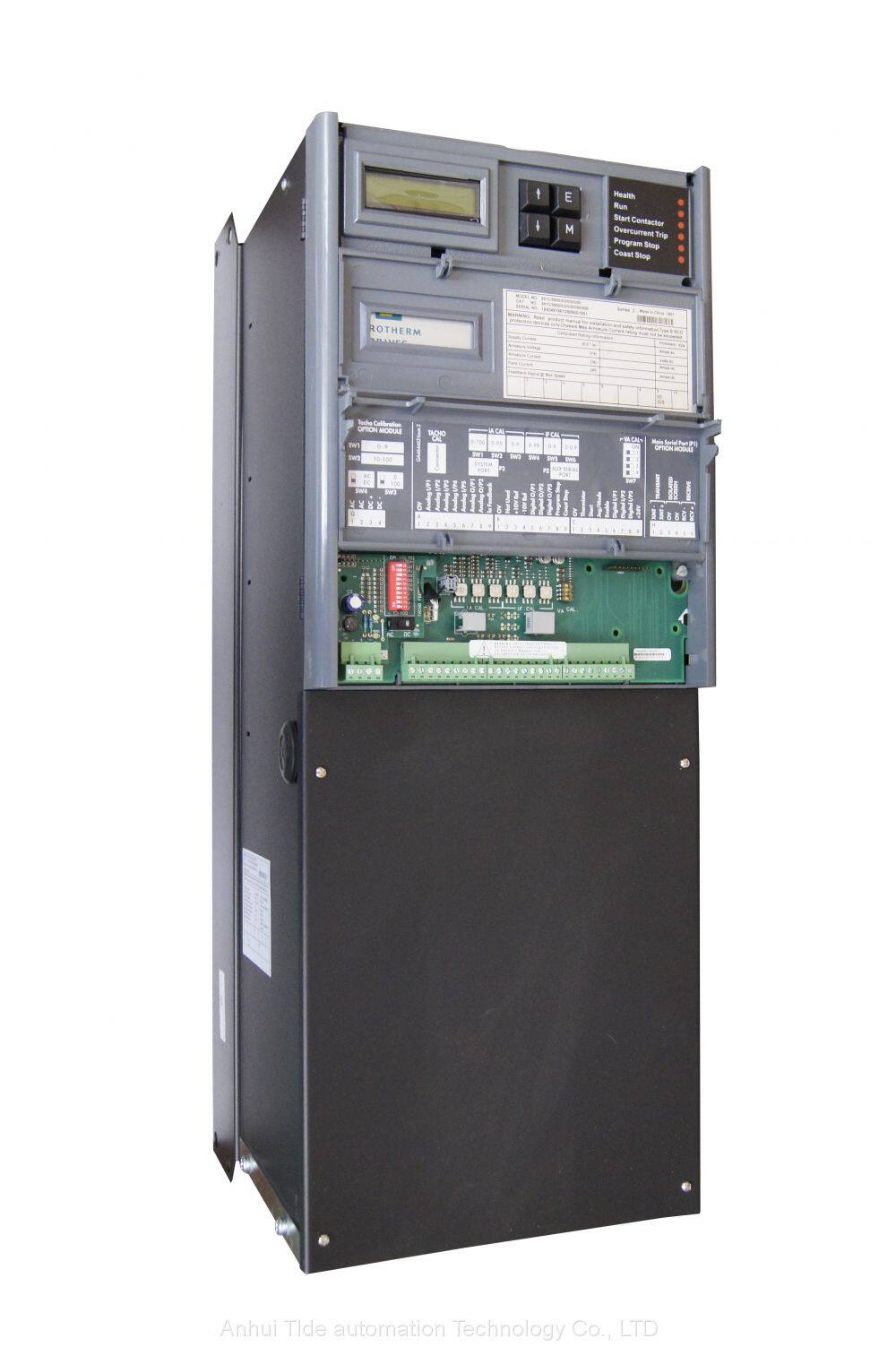

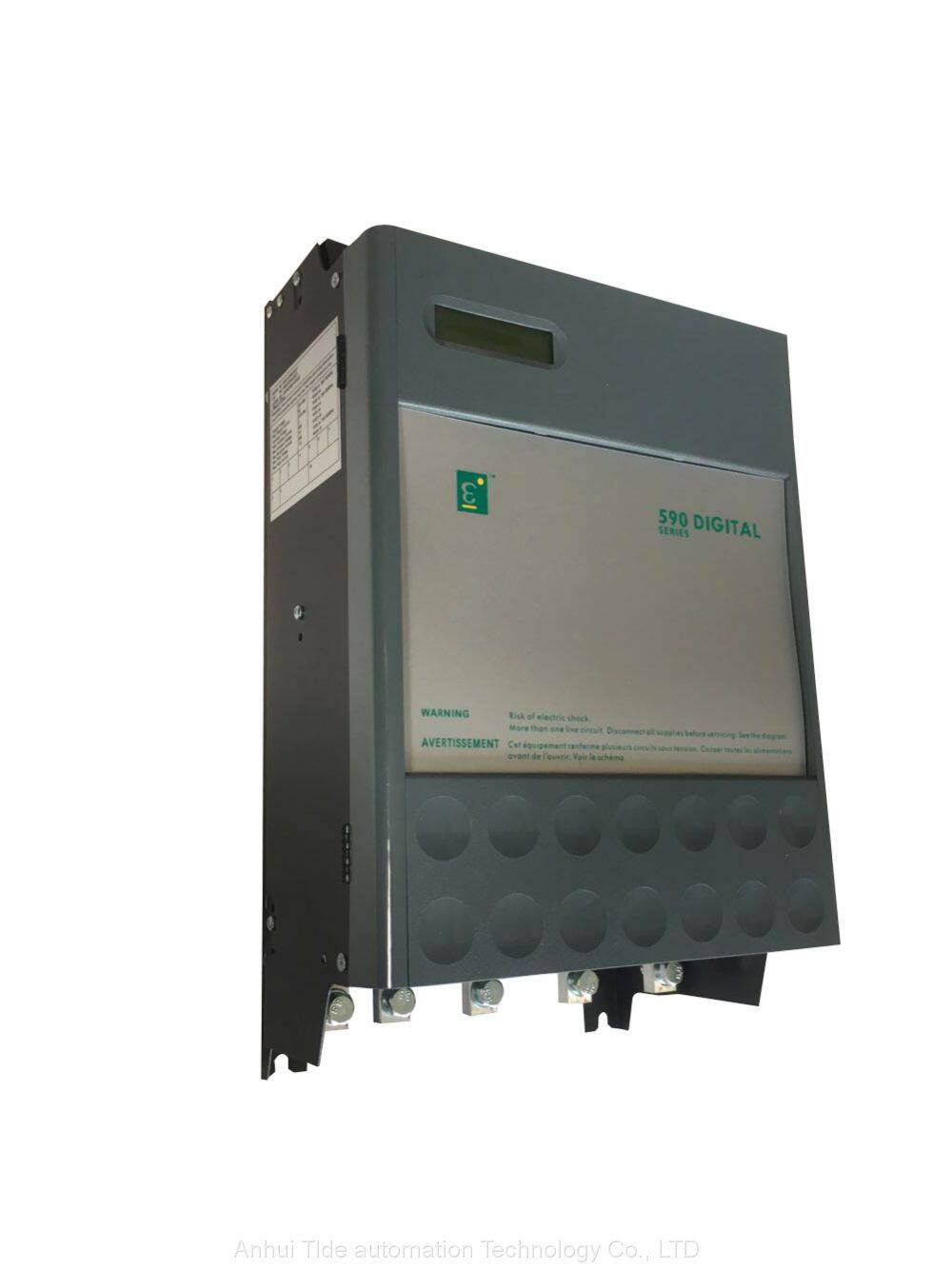

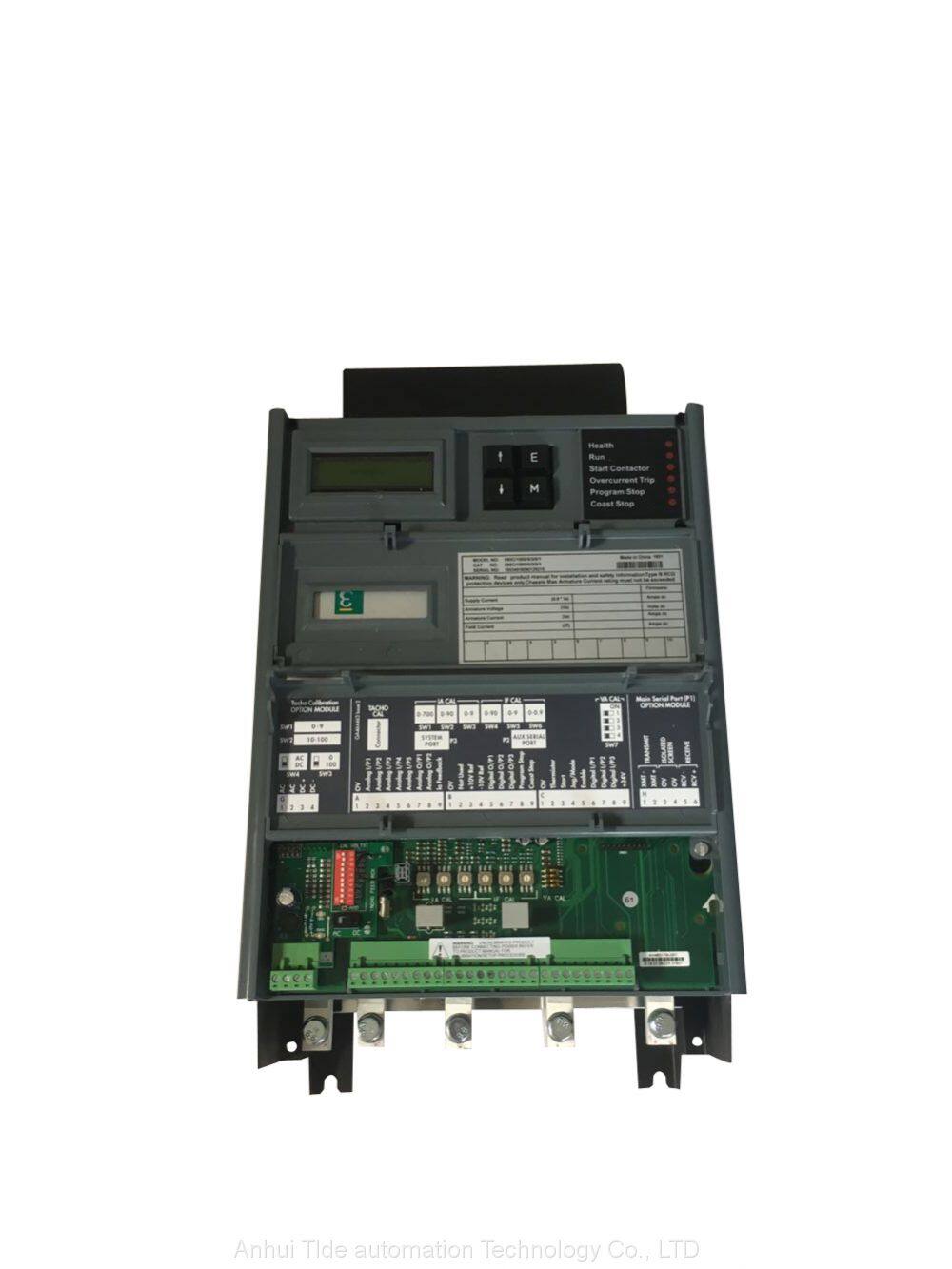

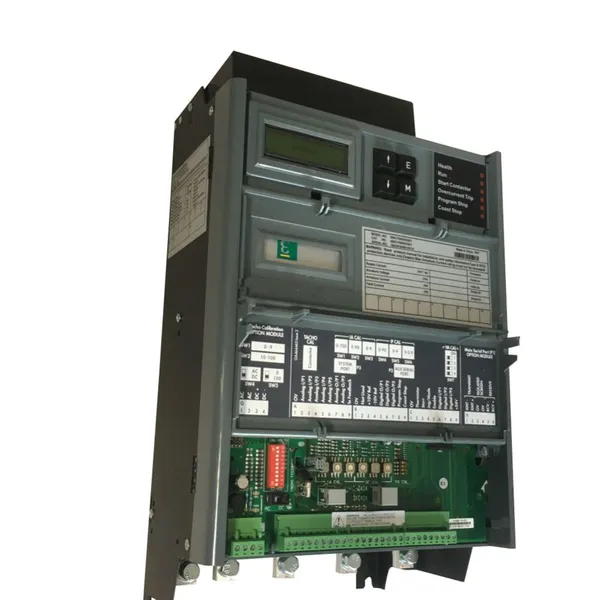

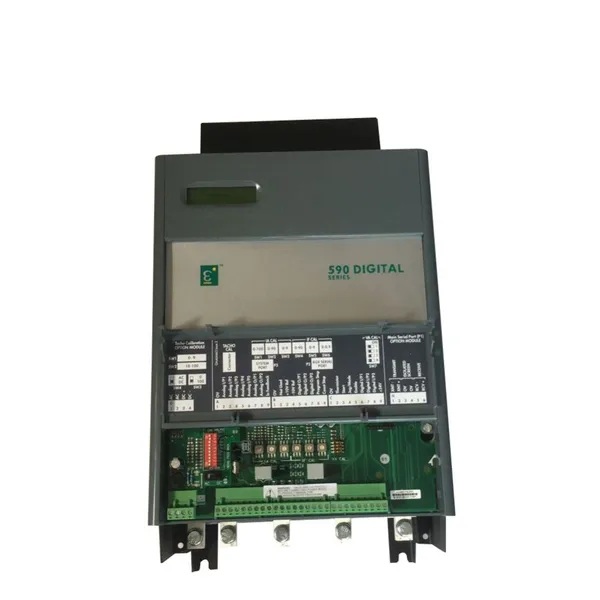

DC Drive 590C Series

The 590 Series DC Drive is suitable for the control of various parallel, separate and permanent magnet DC motors;
Working principle: 590 series DC Drive is designed as a part of supporting control equipment installed in the cabinet. The drive uses a 3-phase power supply of 110V to 500V to provide DC output voltage and current. Suitable for all kinds of parallel excitation, other excitation and permanent magnet DC motor control

Product selection and installation size

590 is a reversible four-quadrant speed control system, 591 is a two-quadrant irreversible
speed control system, the current from 15-5000A

Selection Table

590C Model	Rated current	Input voltage	Mode of operation
590C/0350	35A	500v	Reversible
590C/0700	70A	500v	Reversible
590C/1100	110A	500v	Reversible
590C/1500	150A	500v	Reversible
590C/1800	180A	500v	Reversible
590C/2700	270A	500v	Reversible
590C/3800	380A	500v	Reversible
590C/5000	500A	500v	Reversible
590C/7250	725A	500v	Reversible
590C/8300	830A	500v	Reversible

591C/0350	35A	500v	Irreversible
591C/0700	70A	500v	Irreversible
591C/1100	110A	500v	Irreversible
591C/1500	150A	500v	Irreversible
591C/1800	180A	500v	Irreversible
591C/2700	270A	500v	Irreversible
591C/0380	380A	500v	Irreversible
591C/0500	500A	500v	Irreversible
591C/0725	725A	500v	Irreversible
591C/0830	830A	500v	Irreversible

Installation Instructions

Size and Installation -- DC Drive 590 Series

 All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel where possible standard parts are used
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.

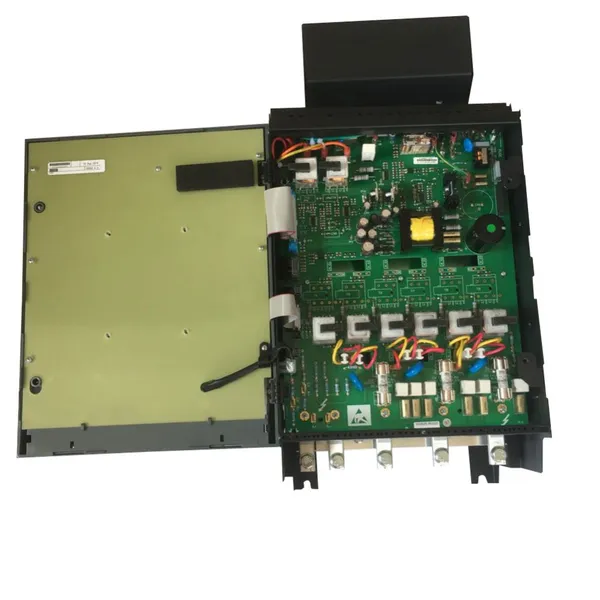

For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety.

 The overall size and installation size of the device are shown in the following figure and table:

Output rated current (A)	model	Overall size of device			Mounting size
Output rated current (A)	model	A	B	C	D	E1
35-70	590/591	250	415	180	200	400
110-150	590/591	250	415	180	200	400
180	590/591	250	500	210	200	400
270	590/591	300	500	252	200	400
380	590/591	253	700	358	150	680
500	590/591	253	700	358	150	680
725	590/591	253	700	358	150	680
830	590/591	253	700	358	150	680
950	590/591	410	700	358	150	680
1000-5000a	590/591	Please consult customer service for details
