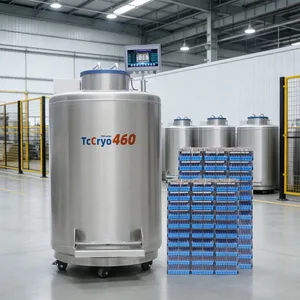

TcCryo YDD-460 Vapor Phase Liquid Nitrogen Tank_stainless Steel Liquid Nitrogen Tank

TcCryo YDD-460 Vapor Phase Liquid Nitrogen Tank_stainless Steel Liquid Nitrogen Tank photo-1
TcCryo YDD-460 Vapor Phase Liquid Nitrogen Tank_stainless Steel Liquid Nitrogen Tank photo-2
TcCryo YDD-460 Vapor Phase Liquid Nitrogen Tank_stainless Steel Liquid Nitrogen Tank photo-3
TcCryo YDD-460 Vapor Phase Liquid Nitrogen Tank_stainless Steel Liquid Nitrogen Tank photo-4
TcCryo YDD-460 Vapor Phase Liquid Nitrogen Tank_stainless Steel Liquid Nitrogen Tank photo-5

Product Spotlights

Vapor-Phase LN₂ Tanks: Safe, Pure, Efficient.
• Safety: Zero spills with IATA-compliant dry storage.
• Purity: Vapor phase prevents cross-contamination.
• Portability: Lightweight for easy handling in confined spaces.
• Performance: Quick-charge and ultra-low evaporation
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Stainless Steel
Certification:
CE, ISO9001
Warranty:
1 yaer
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
15 days
Material Stainless Steel
Certification CE, ISO9001
Warranty 1 yaer
Application Other, frozen biological samples
Standard GB
After-sales Service 1 yaer
Customized Non-Customized
Condition New

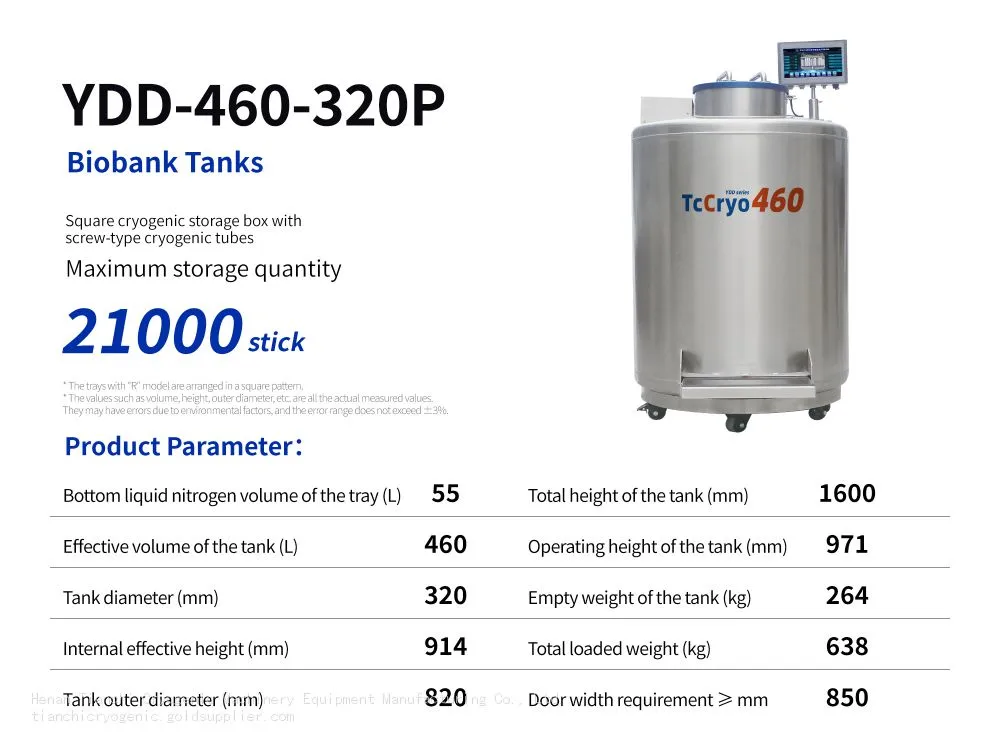

LN2 volume under the platform 55L
Diameter of tank 320 mm
Total tank height 1600 mm
Liquid phase static storage 92 days
Gas phase static storage 11 days
Door width requirement 850 mm
Transport Package Carton
Specification YDD-460
Trademark TcCryo
Origin China

There are generally two types of biological sample freezing tanks: YDS series liquid nitrogen tanks and YDD series liquid nitrogen tanks. The storage methods and capacities of the two are different; some large laboratories or stem cell sample banks require YDD series stem cell liquid nitrogen tanks to meet their needs. So, how does the YDD series stem cell liquid nitrogen tank store biological samples? This series provides users with a large-capacity, new, intelligent, safe, and reliable deep-temperature liquid nitrogen storage system. Supports dual-mode, liquid-phase, and vapor-phase compatible storage methods, and mainly uses the vapor phase to preserve biological samples. There is a rotating tray inside the storage liquid nitrogen tank. There is a certain interlayer between the rotating tray and the inner tank. The interlayer space can hold liquid nitrogen or keep the temperature of the storage space and interlayer space isothermal through cold nitrogen vapor, which not only ensures the loss of liquid nitrogen but also avoids sample cross-over. pollute.


TcCryo YDD series models:

YDD-350-VS/PM

YDD-450-VS/PM

YDD-550-VS/PM

YDD-750-VS/PM

YDD-850-VS/PM

YDD-1000-VS/PM

YDD-1300-VS/PM

YDD-1600-VS/PM

YDD-1800-VS/PM

YDD-1800-VS/PT

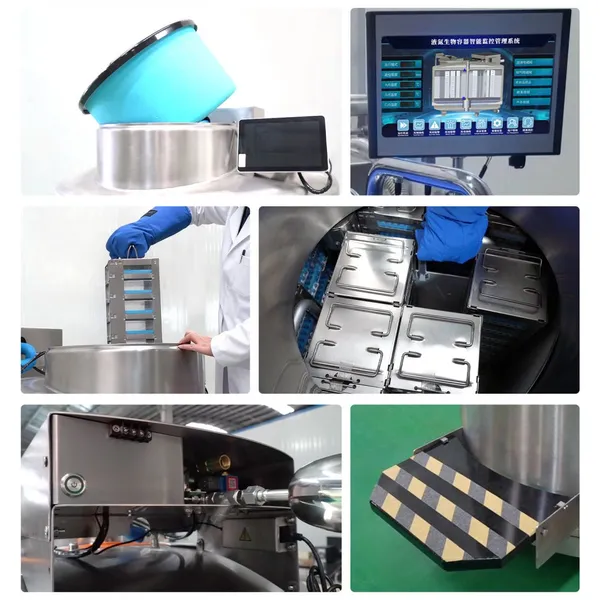

Features:

1. Large volume, high space utilization, and partitioned storage design make it easy to retrieve and search samples.

2. Compatible with both vapor and liquid storage modes to avoid sample cross-infection;

3. Intelligent monitoring system to ensure sample safety;

4. Equipped with movable casters and pedals, easy to use.

5. Remote intelligent management, grasp the sample situation anytime and anywhere;

6. Stable opening temperature;

7. Automatic liquid nitrogen supply system, safe and labor-saving;

8. Multiple humanized designs for comfortable operation;


The TcCryo Dewar flask has a reliable manufacturing process to ensure worry-free use of the Dewar flask. All products have passed the functional test of the Product Quality Supervision and Inspection Institute. Passed ISO9001, EU CE quality certification. We are a manufacturer, providing high-quality products and perfect after-sales service. Please feel free to contact us:
