Heavy Duty Horizontal Centrifugal Mining Slurry Pump

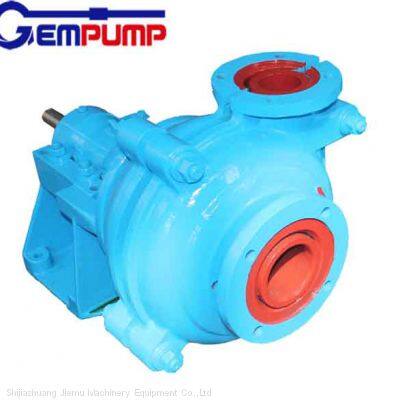

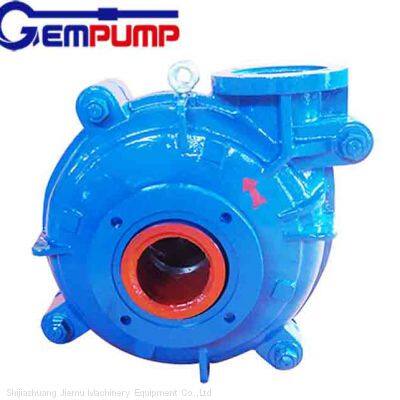

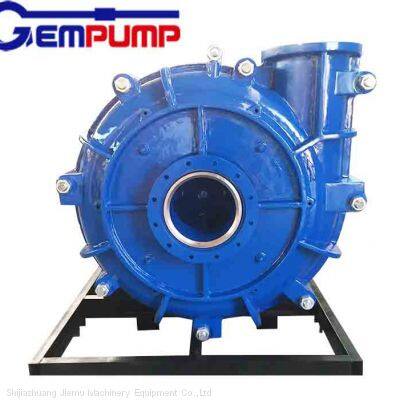

Heavy Duty Industrial Mining Mineral Centrifugal Slurry Pump Description
GAH series slurry pump are cantilever horizontal centrifugal slurry pump.
They are widely used in industry of mining, electrical power, metallurgy, coal, environmental, etc for transportation of abrasive solid slurry.
Mud pump, impurity pump, dredge pump and desilting pump are all belong to category of slurry pump.
Material are vary from corrosion and abrasion degree, high chrome abrosion & corrosion resistance alloy Cr27MoNi, Cr30MoNi are optional.
Slurry pump advantanges are as follows:
1)High concentration, volume concentration reach to 60%, weight concentration reach to 70%;
2)Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 120m, and can be used in series to satisfy much higher head requirements;
3)High flow rate capacity: can be reached 3400m3/h;
4)Good passing ability:gravel pump max passing particles size is 380mm;
5)Diameter size:outlet size from 1" to 22"
6)Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy,coal, construction etc.
7)High corrosion, abrasion resistance widely material optional: metal flow parts including: (Cr27Mo),(Cr30MoNi),(Cr30MoNiCu)and rubber material etc. PH value 1.0-14.
8)Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.

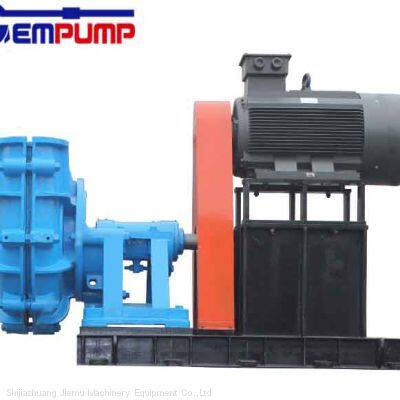

9)Driving engine of motor and diesel are available;
10)Kinds of driving method satisfy different space need on site: CR, CZ, CV, ZV;
Slurry pump specifications
| Type | AM Slurry pump |
| Flow (m3/h) | 13-5000 |
| Head (m) | 5-68 |
| Power (kw) | 15-1200 |
| Eff. (%) | 20-85 |
| Pass Particle Size (mm) | 19-135 |
| Material | High Cr Alloy, Rubber |
Shijiazhuang Jiemu Machinery Equipment Co.,Ltd. is one over 13 years experienced pump manufacturer (establishedat 2010) in mining and mineral, power plant, dredging and dredge, hydraulic, irrigation,pulp transfer, chemical,construction, sea water and oil & gas transfer etc.;
China Gempump is the pump factory has its own pump selection & design, research and development team to assure provide you efficient, energy saving slurry pump, multistage water pump, magnetic drive pump, chemical pump and irrigation pump in selection & design,use and maintenance program.
Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump,
irrigation pumps,submersible pumps and other products exported to over 90 countries all over the world. The
application covers many fields, such as mining and mineral processing, dredger, tailings transportation,
mining, steel, desulfurization pump,boiler feed water, construction, irrigation, water conservancy facilities,
sewage treatment,drainage and water supply.
