Liebherr LB28 rotary drilling rig track chain
Track chain track link assy is a large, oblong-shaped chain link made from high-grade alloy steel, which is suitable for LB28 rotary drilling rig. The track chain rail is connected with the track shoe through bolts and nuts to form a track assembly, which bears the pressure of the whole rotary drilling rig machine and is an important walking part of the undercarriage, so the quality of the chain is very important.
1. Product details
Product name: Track chain, track link assy
Suitable for models: Liebherr LB28
Machinery type: Rotary drilling rig
Material: 35MnB
Technique: Forging
Packing: Plywood pallet
Shipment: By sea, air, express
Loading port: Qingdao, Yantai, Shanghai, Shenzhen, Dalian
Trade terms: EXW, FOB, CFR, CIF, DDU, DAP
Payment terms: T/T, L/C, Western Union

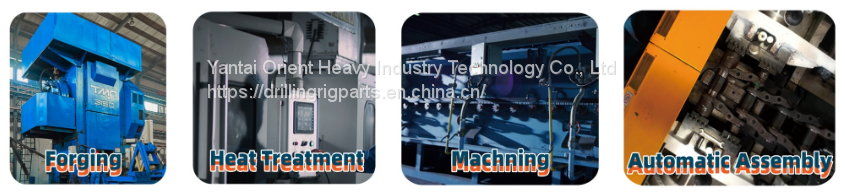

2. Advanced processing machine

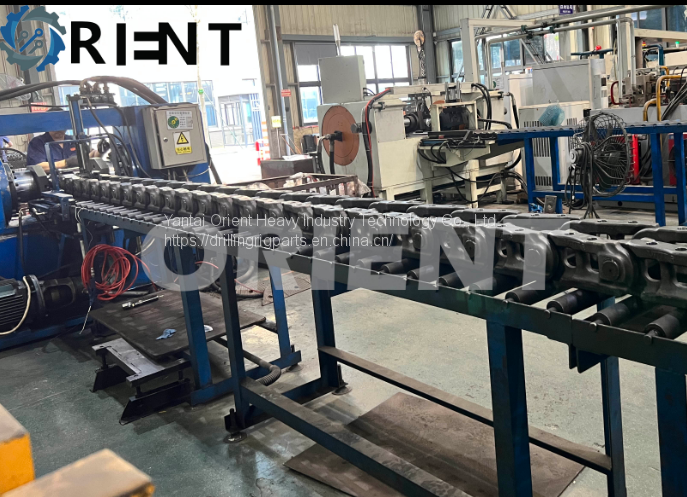

· Our company has 1600T and 2500T two hot die forging production line. The size of track chain produced by hot die forging press equipment is stable.
· The mesh belt furnace automatic equipment is adopted. The internal structure of the product tempered by mesh belt furnace is even, the quality of batch production is stable, and the problem of hardness is avoided.
· From material extraction, melting, cooling, quenching, shaping, tempering, forming, and scene testing, Yantai Orient's track link has undergone multiple rounds of grinding and forging.
3. Strict quality control
· Each batch of raw material is subjected to physical and chemical experiments.
· Each bar's heating temperature is strictly controlled.
· Each batch of heat treatment is performed Metallographic analysis.
· Every track link has been inspected to avoid any defects.
· Every track link has a code that can be traced.
Yantai Orient Heavy Industry is specialized in producing undercarriage parts for rotary drilling rig. Main products include track shoe, track chain, track roller, top roller, sprocket and idler, Which are suitable for many famous brands and models.
| Undercarriage parts for rotary drilling rig | ||||
| Bauer | BG12, BG18, BG20, BG20H, BG24, BG25, BG25C, BG25H, BG26, BG28, BG28V, BG30, BG34, BG36, BG36H, BG39, BG40, etc. | |||
| Soilmec | SR30, SR40, SR60, SR65, SR70, SR75, SR80, SR80C, SR90, SR95, SR100, R16, R208, R312, R415, R618, R620, R622, R622HD, R724, R725, R930, etc. | |||
| Casagande | B180, B180HD, B250, B250XP, B300, C50, C60, C250, etc. | |||
| IMT | AF18, AF180, AF190E, AF190F, AF200, AF215, AF250E, AF250F, AF270, AF270E, AF280, AF300, AF300E, AF350D, etc. | |||
| CMV | TH18-65, TH20, TH32, etc. | |||
| Mait | HR100, HR260, etc. | |||
| Sany | SR150, SR155, SR205, SR220, SR235, SR265, SR280, SR285, SR360, SR365, SR365RC10, SR405, SR415, SR485, etc. | |||
| XCMG | XR130, XR150, XR160, XR180, XR220, XR240, XR280, XR360, XR400, XR460, XR550, XR800, XRS1050, etc. | |||
| Zoomlion | ZR125C, ZR140L, ZR160L, ZR160A-1, ZR160C, ZR220A, ZR220C, ZR240C, ZE280C, ZR280C-2, ZR300L, ZR360L, ZR380L, ZR400L, ZR450L, ZR500L, ZR550L, ZR650L, etc. | |||
| Sunward | SWDM40, SWDM60, SWDM80, SWDM130, SWDM160, SWDM160H2, SWDM200H, SWDM240, SWDM240H, SWDM240-2, SWDM260, SWDM280, SWDM300, SWDM300H, SWDM300H-2, SWDM360, SWDM360A, SWDM360H3, SWDM420, SWDM420V, SWDM450V, SWDM480, SWDM500, SWDM500V, SWDM550H2, SWDM600, SWDM800, SWDM1000, SWDM1280, etc. | |||
| Liebherr | LB24, LB28, LB36, etc. | |||
| Atlac copco | FLEXIROC D55, etc. | |||
| Sandvik | DX800, etc. | |||
cindy@heavyindustryparts.com, tel/whatsapp: +86 17866651759
