Home > Products > AMC Series Data Center Monitor Module > AMC100-ZD DC Electrical Precision Power Distribution Monitoring Device Two Channels DC Inlet For Data Base DC Multi Power Meter

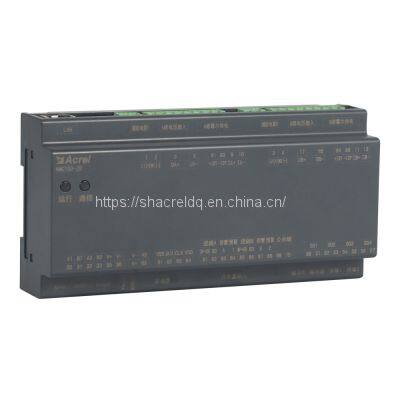

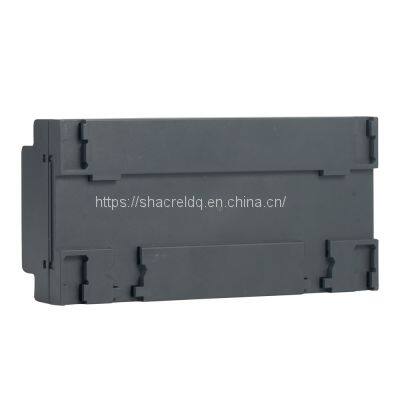

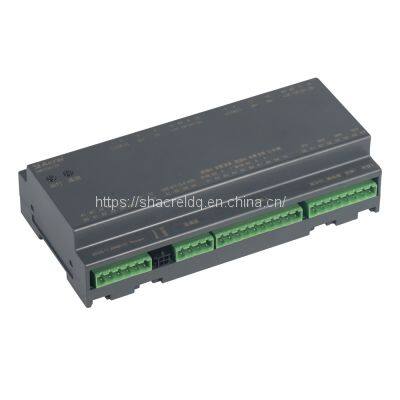

AMC100-ZD DC Electrical Precision Power Distribution Monitoring Device Two Channels DC Inlet For Data Base DC Multi Power Meter

Name: AMC100-ZD DC Electrical Precision Power Distribution Monitoring Device Two Channels DC Inlet For Data Base DC Multi Power Meter
Brand: Acrel
Availability: InStock

FOB Price

US$ 103 - 148 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Acrel	Place of Origin	China
Model Number	AMC100-ZD	Phase	Three Phase
Output Voltage	48VDC,240VDC,336VDC	Operating Temperature	-10℃~45℃
Dimensions	1804590mm	Display Type	Digital Only
Accuracy Class	0.5

Product Description

Products Description

AMC100-ZD

Acrel AMC100 series DC precision power distribution monitoring device is a measuring device designed specifically for power management of data center servers. The device is compact in design and can monitor the full electrical parameters, input and output switches and the status of the lightning arrester of A+B two incoming lines and 192 outgoing lines in real time. The alarm thresholds of all measurement channels can be set individually, and the outgoing line The limited event immediately triggers the system's sound and light alarms, and the high integration of the monitoring loop is realized in the volume of the traditional instrument.

Function & Parameter

Product Model

Model	Function Description
AMC100-ZA	Measurement of A+B independent 2 channels AC three-phase inlet all electricalparameters, 8DI4DO,2 channels leakage current monitoring, 1 channel Temperatureand humidity monitoring, 2-63rd harmonic, 3 channels RS485 Modbus-RTU(1 forbranch module, 1 for HMI, 1 for Supervision System)
AMC100-FA30	Measurement of A+B independent 30 channels AC outlet all electrical parameters,1channel RS485 Modbus-RTU
AMC100-FA48	Measurement of A+B independent 48 channels AC outlet all electrical parameters, 1channel RS485 Modbus-RTU
AMC100-ZD	Measurement of A+B independent 2 channels DC inlet,U,I,P,Q, 8DI/4DO, 1 channelTemperature and humidity monitoring,3 channels RS485 Modbus-RTU((1 for branchmodule, 1 for HMI, 1 for Supervision System)
AMC100-FD30	Measurement of A+B independent 30 channels DC outlet all electrical parameters, 1channel RS485 Modbus-RTU
AMC100-FD48	Measurement of A+B independent 48 channels DC outiet all electrical parameters, 1channel RS485 Modbus-RTU
AMC100-FAK30	Measurement of A+B independent 30 channels AC outlet all electrical parameters andswitch value status, 1 channel RS485 Modbus-RTU
AMC100-FAK48	Measurement of A+B independent 48 channels AC outlet all electrical parameters andswitch value status, 1 channel RS485 Modbus-RTU
AMC100-FDK30	Measurement of A+B independent 30 channels DC outlet all electrical parameters andswitch value status, 1 channel RS485 Modbus-RTU
AMC100-FDK48	Measurement of A+B independent 48 channels DC outlet all electrical parameters andswitch value status, 1 channel RS485 Modbus-RTU

Parameter

Instrument model		AMC100-ZD
Measurement parameters		Voltage,Current, Power, Electric energy, Ambient temperature and Humidity
Bus voltage	Rated	48VDC,240VDC,336VDC
	Measuring range	±20%
	Overload	Instantaneous voltage 2 times/sec
Current incoming circuit	Rated	5V（Hall sensor, ±12V powered by AMC100-ZD）

	Overload	Duration is 1.2 times, instantaneous 10 times/sec
Temperature and humidity	Temperature Range	-40℃～+99℃
Temperature and humidity	Humidity Range	20%～90%
Input frequency		AC45～65Hz
Measurement accuracy	Coil in	Voltage/current level 0.5, power/electric energy level 1
	Temperature	±1℃
	Humidity	±5%
Auxiliary Supply		AMC100-ZD：Signal power（≤15W） AMC100-ZD-P24：24V independent power supply AMC100-ZD-P220： 1、When the constant voltage is DC240V、DC336V, powered by AC220V、 DC240V、DC336V independent supply 2、When the constant voltage is DC48V,powered by DC48V independent supply
Environment	Temperature	Work: -10℃～45℃ Storage: -25℃～70℃
	Humidity	Relative humidity≤95%
	Altitude	≤2000m
Switch output		4-way 3A 250VAC/3A 30VDC
Switch input		8 dry nodes
Communication		1 channel isolatedRS485/Modbus-RTU to the background system 1RS485/Modbus-RTU to touch screen 1RS485/Modbus-RTU connection to the downstream module 1-channel Ethernet communication function is optional
Installation Method		DIN35mm rail or bottom plate installation
Protection level		IP20
Pollution level		2
Security	Insulation	The insulation resistance between all terminals and the conductive parts on the shell must be at least 100MΩ
Security	Withstand voltage	Voltage and current signal of line A // Voltage and current signal of line B // Switching output //Isolated communication port // Two of other ports should meet AC2kV for 1min,switching input and other ports should meet AC0.5kV for 1min, leakage current should be less than 2mA, no breakdown or flashover phenomenon
Electromagnetic compatibility	Anti-static interference	Level 4
	Reactance fast transient pulse	Level 3
	Surge resistance	Level 4
	Radio frequency electromagnetic radiation	Level 3

Wiring&Installation

Wiring

Installation

Dimension and Packaging
