NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory

NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory thumbnail-1
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory thumbnail-2
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory thumbnail-3
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory thumbnail-4
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory thumbnail-5
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory photo-1
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory photo-2
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory photo-3
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory photo-4
NanXiang 16mm 38mm 50mm76mm Metal Pall Ring Random Packing 25mm Metal Pall Ring for Absorption Tower Metal Pall Ring Manufactory photo-5
US$ 400 - 2000 MOQ: 1 Cubic Meter
Key Specifications
Get Latest Price
Brand Name:
Nanxiang
Place of Origin:
China
Model Number:
NX-MPR
Contact Supplier Request Quote Chat Now
Pingxiang Nanxiang Chemical Packing Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Nanxiang
Place of Origin China
Model Number NX-MPR
Application packing towers in petrochemical industry, chemical fertilizer industry and environmental protection,etc.(such as: Device of isolation, absorption, distillation, desorption, common decompression.)

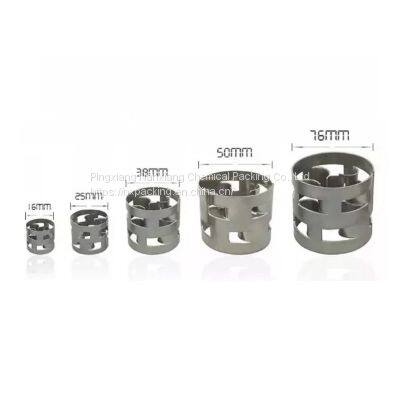

Dimensions 16mm 38mm 50mm76mm
Material carbon steel, stainless steel 304, 304L, 410, 316, 316L, etc

Metal Pall Ring packing use of sheet metal by punching in the ring out of the wall with two rows of fenestrae with leaves.


Fenestrae in each row there are five tongue leaves, each leaf tongue ring, point to ring heart, almost in the center up, the location of the upper and lower levels staggered fenestrae, the general opening of the ring a total area of about 35% of wall area around Pall Ring packing as a result of in-the-loop to open a lot of window walls, making the tower the gas and liquid can move freely through the window, the current Central fill Powell was used by one of the main ring packing.

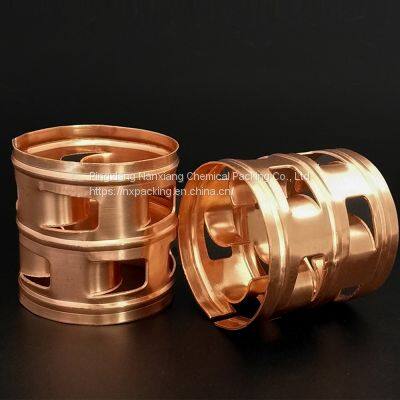

Metal Pall Ring will have a variety of materials: such as carbon steel, stainless steel 304, 304L, 410, 316, 316L, etc. to choose from.

Size (Inch/mm)
Bulk density (304,kg/m3)
Number (per m3)
Surface area (m2/m3)
Free volume (%)
Dry packing factorm-1
1/4”
6*6*0.3
900
4000000
904
88.6
1307.4
3/8”
10*10*0.3
480
768000
482
93.8
583.8
1/2”
13*13*0.3
420
410000
415
4.8
489.2
5/8”
16*16*0.3
348
201000
344
95.5
393.2
1”
25*25*0.4
288
53500
212
96.2
229.8
1”
25*25*0.5
367
53500
216
95
237.2
1”
25*25*0.6
439
53500
219
94.2
244.1
1.5”
38*38*0.4
193
15180
143
97.2
148.4
1.5”
38*38*0.5
246
15180
145
96.7
151.7
1.5”
38*38*0.6
328
15000
146
95.9
154.6
2”
50*50*0.5
185
6500
106
97.5
128.5
2”
50*50*0.8
315
6500
108
96.8
130.5
2”
50*50*1.0
380
6500
132.5
96.0
134.0
3”
76*76*1.0
265
1920
69
97.4
79.6
3.5”
89*89*1.0
224
1220
61
97.1
66.2

Product Tags: metal pall ring , SS304 SS316metal pall ring , 16mm 25mm 38mm 50mm 76mm metal pall ring , metal pall ring random packing , metal Pall ring for Absorption Tower
