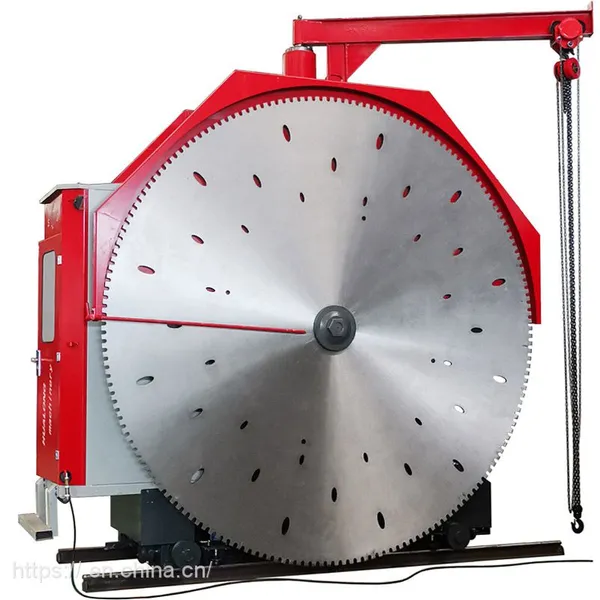

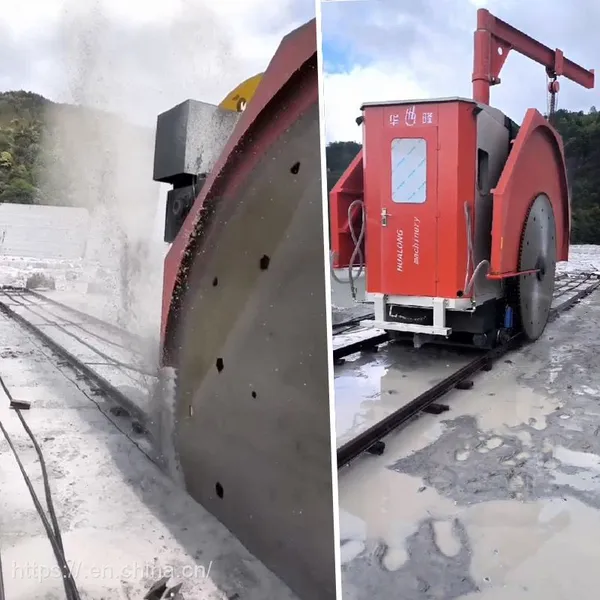

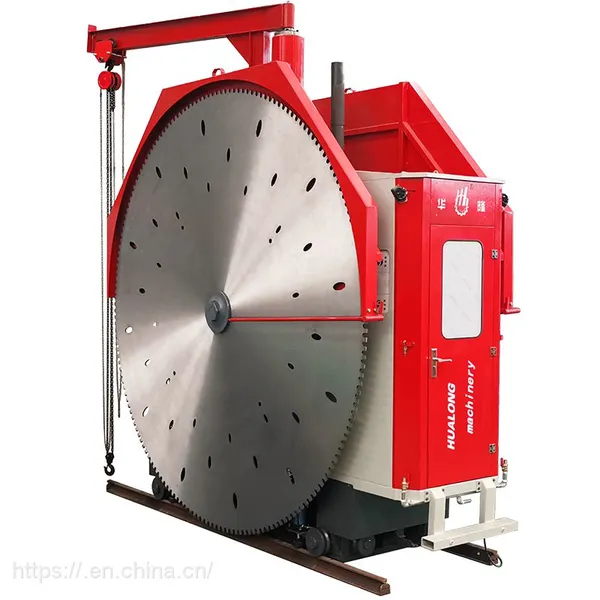

Hulong Machinery 2QYKZ Series High Efficiency Twin Blade Rock Rail Saw Natural Stone Cutting Machine for Granite Quarry
US$ 25500 - 27000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hualong
Place of Origin:
China
Model Number:
2QYKZ-3300
Payment & Shipping
Payment Methods:
Port of Shipment:
XiaMen or FuZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hulong Machinery 2QYKZ Series High Efficient Double Blades Natural Stone Quarry Machine for Granite and MarbleUS$ 24500 - 31500MOQ: 1 Set -
HUALONG Machinery 2QYKZ Series Amazing Fastest Quarrying Granite Block Rock Cutting Machinery Dimension Stone Mining Equipment MachineUS$ 24500 - 31500MOQ: 1 Set
-
HUALONG Machinery 2QYKZ Series Most Efficient Double Blade Cutting Granite Quarry Open Pit Mining Equipment for Dimension StoneUS$ 24500 - 31500MOQ: 1 Set
-
HUALONG Machinery 2QYKZ Amazing Efficient Quarrying Rock Mining Dimension Granite Block Quarry Nautral Stone Cutting MachineUS$ 24500 - 31500MOQ: 1 Set
-
Hualong Machinery 2QYKZ Series Quartz Granite Marble Cutter Cutting Mining Machinery for Natural Stone QuarryingUS$ 24500 - 31500MOQ: 1 Set

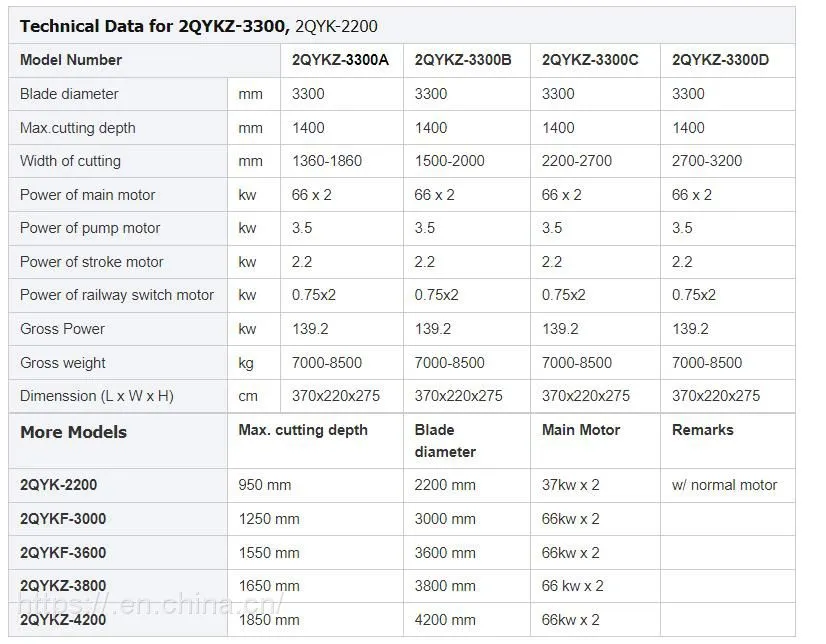

Brand Name
Hualong
Place of Origin
China
Model Number
2QYKZ-3300
Type
Other, Stone Quarry Machinery
Use
Other, stone mining
Certification
CE Certification
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
7000 kg
Dimension(L*W*H)
6300x3600x3100mm
Production Capacity
150 Set/Sets per Month
Condition
New
Voltage
380V-AC
Power(W)
139.2KW

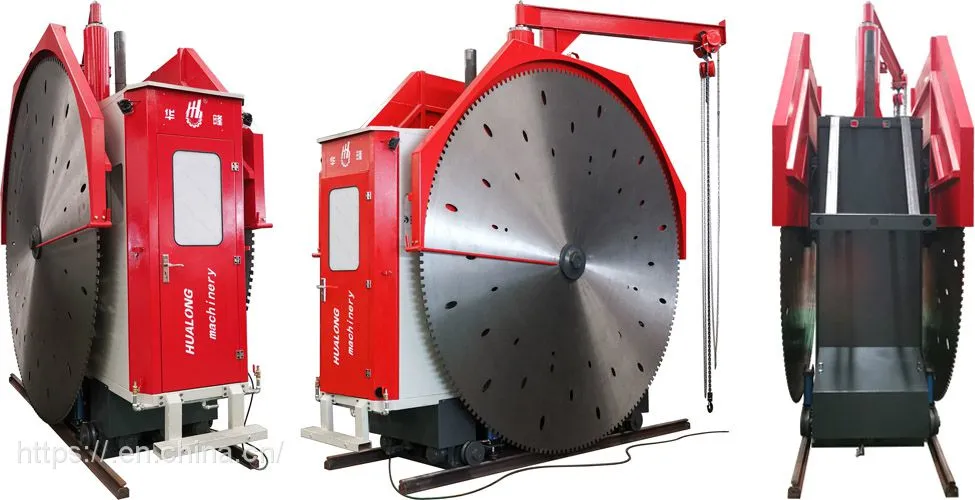

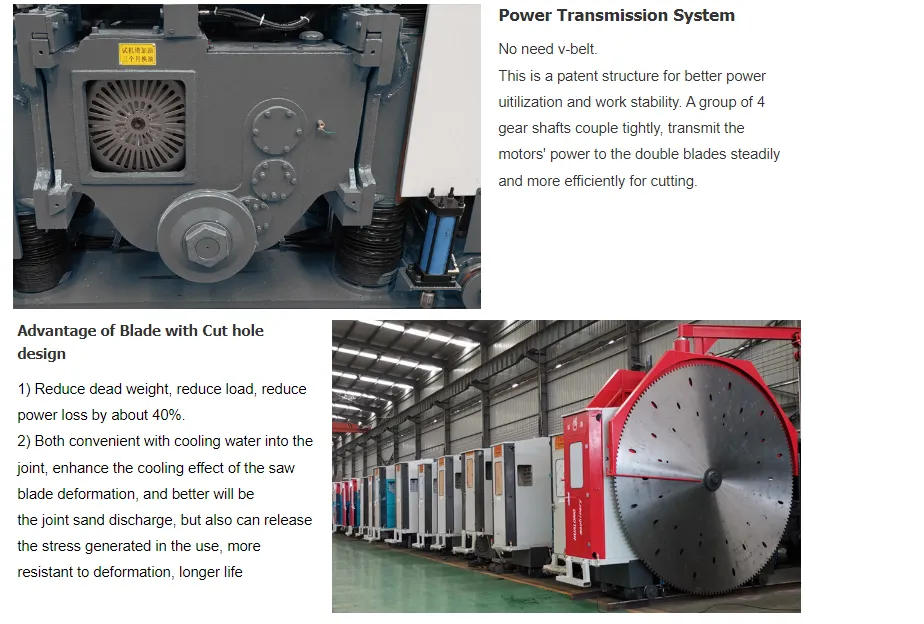

2QYKZ series Quarry Stone Cutting Machine, new developed with double main permanent magnet motors
regulated by frequency converters, dual big blades and 4 shaft transmission, is powerful and high efficient for mining granite at quarry, also good for mining marble, quartz...
regulated by frequency converters, dual big blades and 4 shaft transmission, is powerful and high efficient for mining granite at quarry, also good for mining marble, quartz...
Main Features:

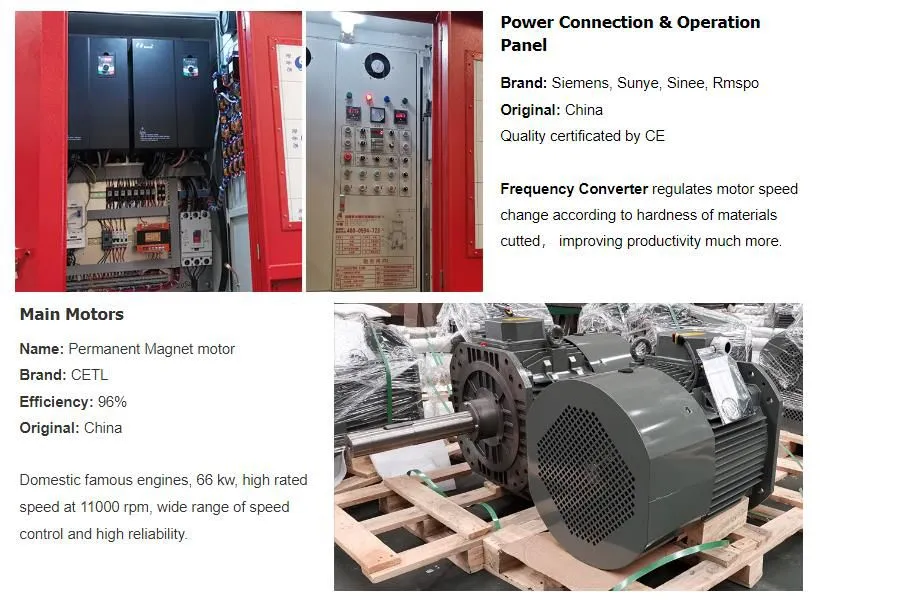

1) Equipped with powerfull permament magnet motors with high rated speed of 11000 rpm and high reliability.

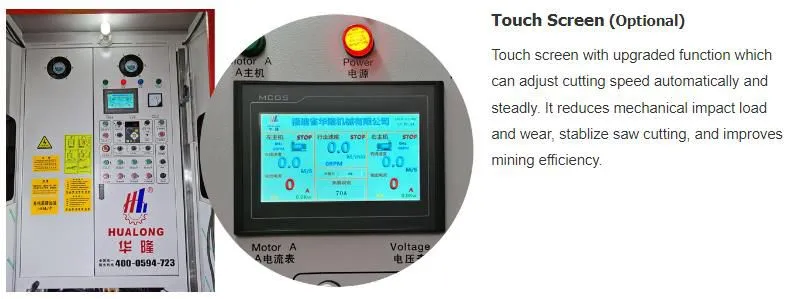

2) To regulate the main motors speed by frequency converter, make it possible to adjust cutting speed according to the hardness of the stone cutted.
2) To regulate the main motors speed by frequency converter, make it possible to adjust cutting speed according to the hardness of the stone cutted.
3) Productivity improved 10% + higher.
4) 10-15% energy saving than 2QYKT series.
4) 10-15% energy saving than 2QYKT series.
5) Safer, more stable.
Why choose Hualong stone mining machine?
* High speed --- It can cut est. 15 sqm/hour, while the wire saw cuts about 10 sqm/hour.
* Low consumption --- It cost about USD1.00/sqm, while the wire saw cost USD1.5-2.3/sqm.
* Quality Assurance
--- Made with 25 years+ expertise and patents.
--- Strictly conforming to ISO9001:2105 quality management system.
* On-purchase Service
--- Many machines available for choice.

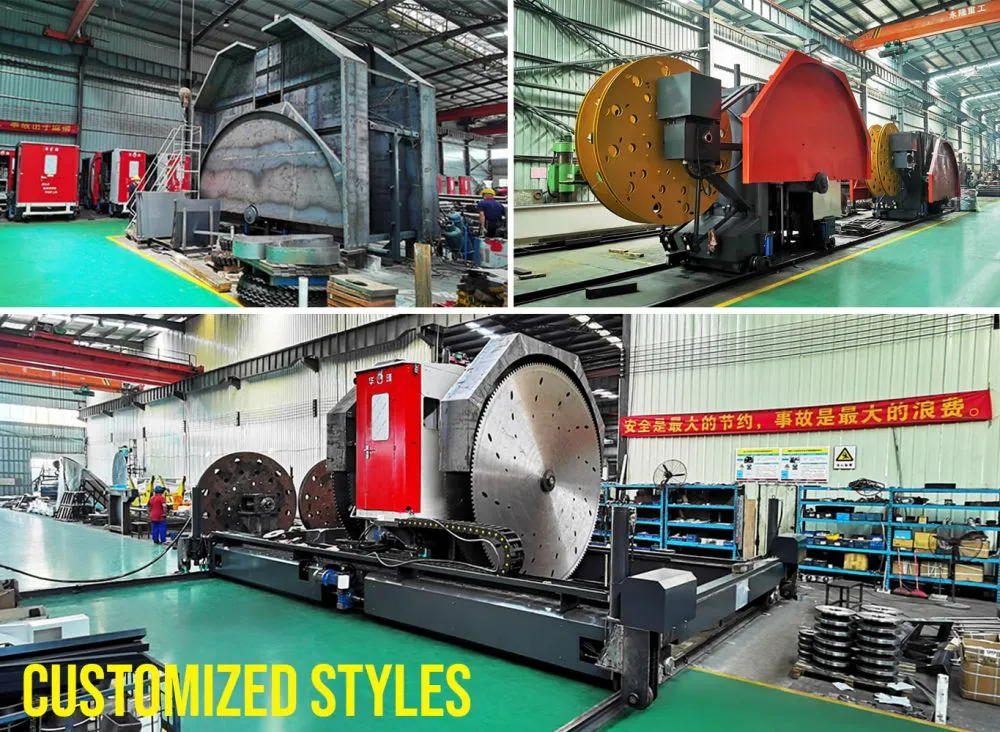

--- Customization available
--- Experienced techs for all your questions.
* After-sale Service
--- Parts & Accessories Quick supply for needs
--- Troubleshooting by phone, e-mail, or WhatsApp/Wechat
--- Installation and operation training for any machine
* Quality Assurance
--- Made with 25 years+ expertise and patents.
--- Strictly conforming to ISO9001:2105 quality management system.
* On-purchase Service
--- Many machines available for choice.
--- Customization available
--- Experienced techs for all your questions.
* After-sale Service
--- Parts & Accessories Quick supply for needs
--- Troubleshooting by phone, e-mail, or WhatsApp/Wechat
--- Installation and operation training for any machine
--- Qualified and experienced technicians available to overseas
Q: What's the max. Thickness can 2QYK-3000 machine cut the stone at quarry?
A: 3000(diameter of blade)/2 -300mm(deductive parameter) = 1200mm
Q: How depth can the double blade machine cut per trip?
A: 150-200-250mm depand on the hardness of the stone cutted.
Q: How fast can 2QYK-3600 double blade machine cut along with the rail?
A: 200m per day for marble, 150m per day for granite, based on cutting 20 hours per day.
Q: How width can the double blade machine cut?
A: The double blade can stretch out and cut 1360-3200mm wide depanded on different types.
Q: How many stone can be mined by one double blade machine per month?
A: About 4500-5000 gross cbm per machine if work 15-20 days day and night.
Q: We have a stone quarry. How many double blade machines are needed for our mining？
A: One machine per 3000 sqm working area is suggested to equip.
Q: How long rails should be equipped for the double balde machine?
A: 300 meter rails for one machine.
Q: How many blades should be equipped for the double blade machine?
A: Two sets for one machine, or Three sets for two machines.
Q: How many pieces of blade per set?
A: 4 pieces, including double small blades of 2200-2400 mm diameter for initial cutting and taking track shape, and double big blades for further deeper cutting.
Q: How long can a blade work without changing the diamond segments (blade tips)?
A: For cutting granite at 1500mm depth, the blade should be changed after the machine walking about 400 meters. For cutting marble, should be changed after walking about 1000-2000 meters.
Q: What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
