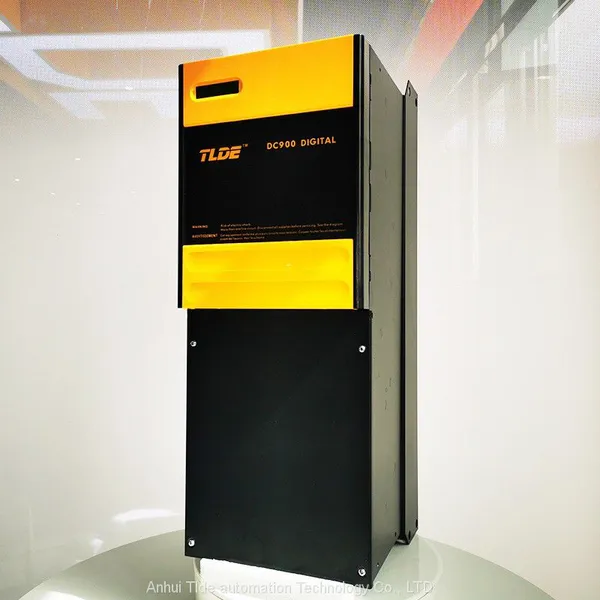

DC Drives | DC Motor Drives | Variable Frequency Speed Drives | VFD DC900C-4-500-160-10-1-0-0 photo-3
DC Drives | DC Motor Drives | Variable Frequency Speed Drives | VFD DC900C-4-500-160-10-1-0-0 photo-4
DC Drives | DC Motor Drives | Variable Frequency Speed Drives | VFD DC900C-4-500-160-10-1-0-0 photo-5
US$ 1450 - 1500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TLDE DC900C
Place of Origin:
China
Model Number:
DC900C-4-500-160-10-1-0-0
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai，qingdao，shenzhen，tianjin，yiwu
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TLDE DC900C
Place of Origin China
Model Number DC900C-4-500-160-10-1-0-0
Motor Type DC Motor

Key attributesOther attributes

Warranty
3months-1year
Place of Origin
Anhui, China
Brand Name
TLDE
Model Number
DC900C-2-500-80-10-1-0-0
Product name
DC900C series digital dc drive
Condition
Brand-new
Input voltage range
100-500v
Output Voltage
500v
Warranty
12 Months
Rated current
80A
OEM
Accepted
Phase
Three Phase

Packaging and delivery

Packaging Details
Standard Export Carton.

Supply Ability

Supply Ability

30 Piece/Pieces per Day


Product details
Product Description
DC900C series
Full digital DC drive.
The DC900C series is a new generation of high-performance full digital Chinese/English DC governor designed to meet a variety of speed control applications;

From a single DC motor control to the most complex multi-motor drive systems can be achieved with simple programming Settings. The development of this product brings high performance commercial applications for motor control.

It can be applied to the three-phase AC voltage supply of various standards in different countries. It is applied to the speed control or torque control of separately excited, shunt excited and permanent magnet DC motor.
Functional Features.
With the exception of the thyristors, all DC900 series DC governors use the same control and power supply panels in multiple specifications of DC motor speed regulation systems.

The control circuit and the power circuit are completely isolated, the coding circuit has the function of automatic adjustment, can apply to the power frequency between 45-60hz, with strong anti-interference ability. Graphical configuration and programming software - the governor internal each function module flexible connection; Bilingual liquid crystal display - Chinese and English liquid crystal display, and make complex governor parameters more convenient to understand;
CONTROL ALGORITHM
Advanced, fast and high-precision control algorithm provided by 32-bit CPU:
● Complex control algorithm. ● Special application modules that can be configured by software.
FEEDBACK SYSTEM
The three feedback modes can be switched through the internal selection of the software ● Armature voltage feedback - built-in standard; Dc velocity generator feedback card - optional; ● Encoder feedback card - optional;
COMMUNICATIONG CARD
A variety of communication cards available for selection.
support standard PN,DP and modbus communication protocols,
ESD protection design,
communication anti-interference ability;
Product Details
Product Name
DC900C Series DC Drive
Model Number
DC900C-2-500-80-10-1-0-0
Type
DC/DC Inverters
Input Voltage
100-500v
Output Voltage
500v
8Rated Current
80A
Output Frequency
50Hz/60Hz
Package Size
570*340*340
Weight
11KG
Warranty
12 Months

DC900C series DC driver is widely used in cable, metallurgy, rubber and plastic, papermaking, material handling, test bench and other industries.




Selection Table
DC900C Models
Mode of operation
Rated current
Input voltage
Motor power
DC900-2-500-40-10-1-0-0
Irreversible
40A
10A
7.5KW-15KW
DC900-4-500-40-10-1-0-0
Reversible
40A
10A
7.5KW-15KW
DC900-2-500-80-10-1-0-0
Irreversible
80A
10A
18.5KW-30KW
DC900-4-500-80-10-1-0-0
Reversible
80A
10A
18.5KW-30KW
DC900-2-500-120-10-1-0-0
Irreversible
120A
10A
37KW-45KW
DC900-4-500-120-10-1-0-0
Reversible
120A
10A
37KW-45KW
DC900-2-500-160-10-1-0-0
Irreversible
160A
10A
55KW
DC900-4-500-160-10-1-0-0
Reversible
160A
10A
55KW
DC900-2-500-200-10-1-0-0
Irreversible
200A
10A
75KW
DC900-4-500-200-10-1-0-0
Reversible
200A
10A
75KW
DC900-2-500-280-10-1-0-0
Irreversible
280A
10A
90KW-110KW
DC900-4-500-280-10-1-0-0
Reversible
280A
10A
90KW-110KW
DC900-2-500-400-20-1-0-0
Irreversible
400A
20A
132KW-160KW
DC900-4-500-400-20-1-0-0
Reversible
400A
20A
132KW-160KW
DC900-2-500-550-20-1-0-0
Irreversible
550A
20A
180KW-220KW
DC900-4-500-550-20-1-0-0
Reversible
550A
20A
180KW-220KW
DC900-2-500-700-20-1-0-0
Irreversible
700A
20A
250KW-280KW
DC900-4-500-700-30-1-0-0
Reversible
700A
20A
250KW-280KW
DC900-2-500-850-30-1-0-0
Irreversible
850A
30A
315KW
DC900-4-500-850-30-1-0-0
Reversible
850A
30A
315KW
DC900 -4000A
Custom
Custom
Custom
Custom


Size and Installation DC900C series
All units are designed for simple and economical panel mounting using keyhole slots.
Plug-in control connectors simplify the fitting and removal of the unit to the panel where possible standard parts are used
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower orbridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a systemand improving operator safety.
40A-80A
120A-160A
200A-280A
400A-900A
Rated current (A)
Overall size（mm)
Mounting size(mm)
A x B x C
D
E1
40-80
250*415*171
200mm
400mm
120-160
250*451*171
200mm
400mm
200
250*485*213
200mm
400mm
280
297*485*213
200mm
400mm
400-900
253*700*235
150mm
680mm
Unpacking and handling
Note: The packing case is flammable, if not handled properly on site, may lead to the generation of toxic gas. Please keep this packing case for recycling. Improper packing may result in damage during transportation. Higher power drivers (1200-2600A) are specially packed so as not to be damaged during handling. When handling, use a safe and proper handling method. Before moving it, find a flat surface to rest on.

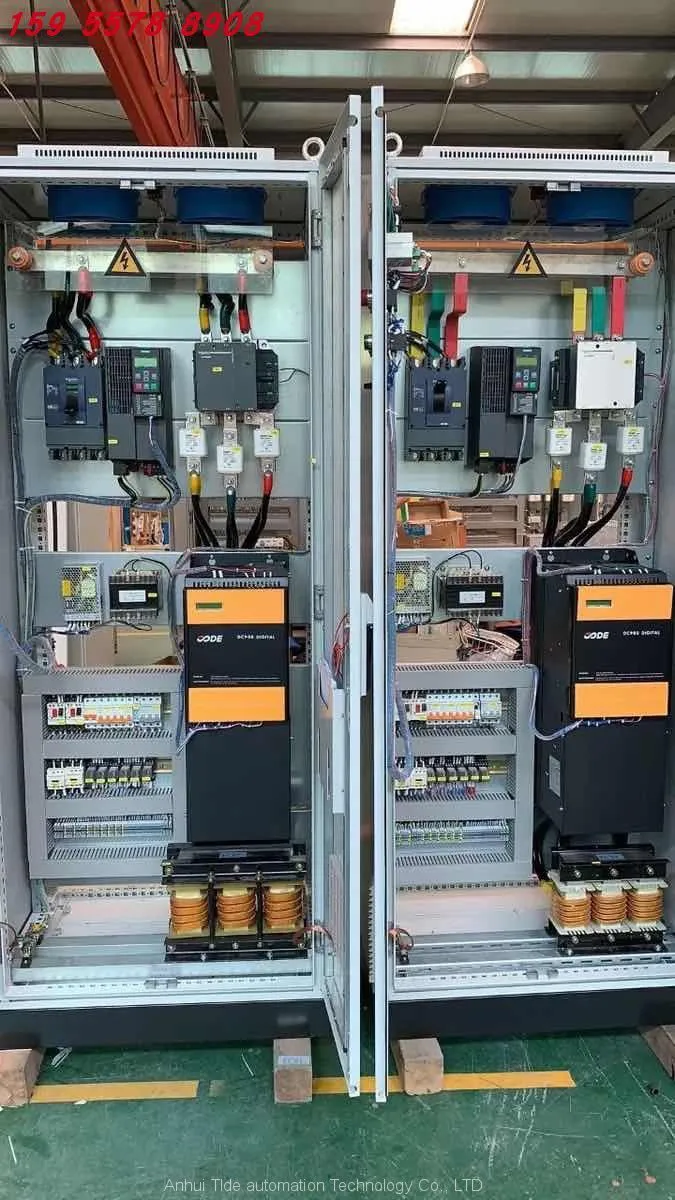

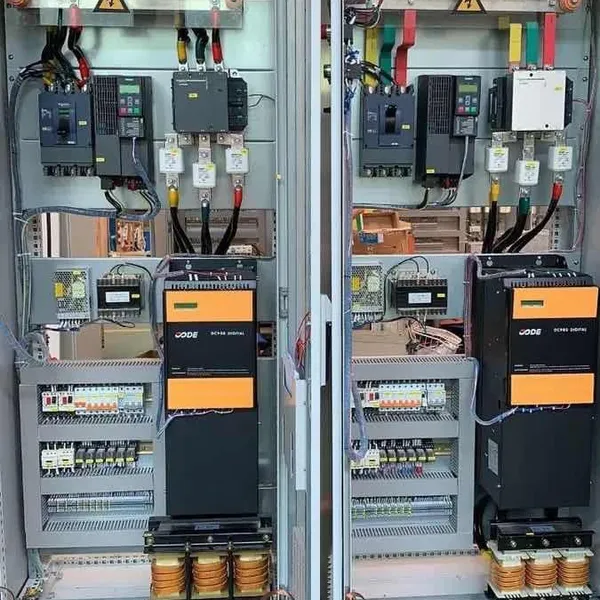

Photos of The Scene
