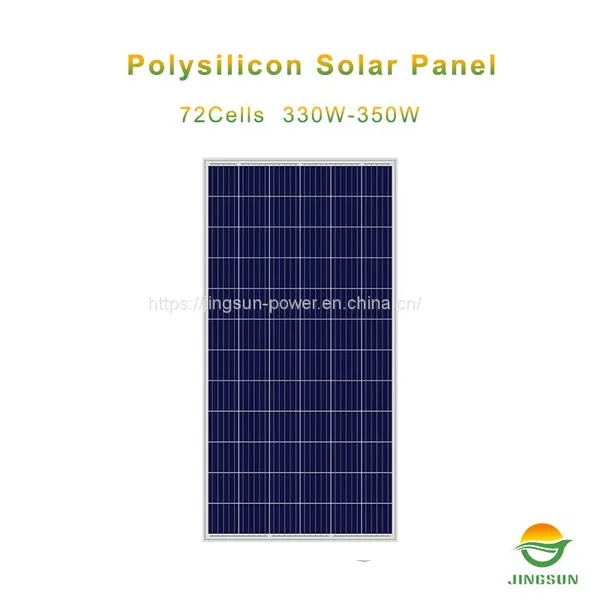

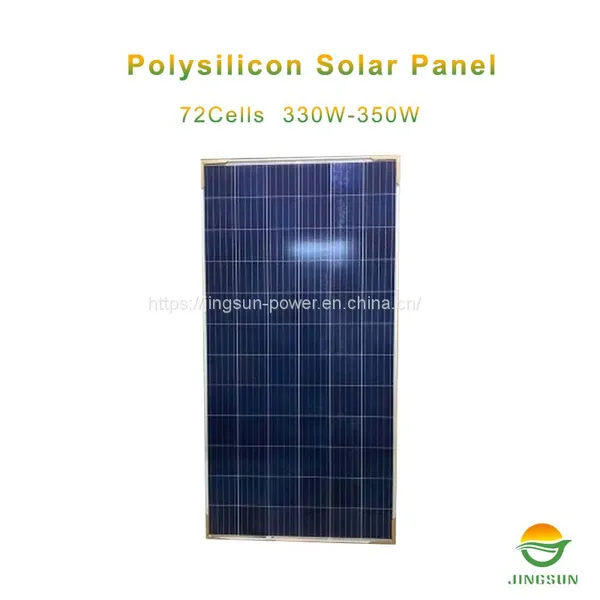

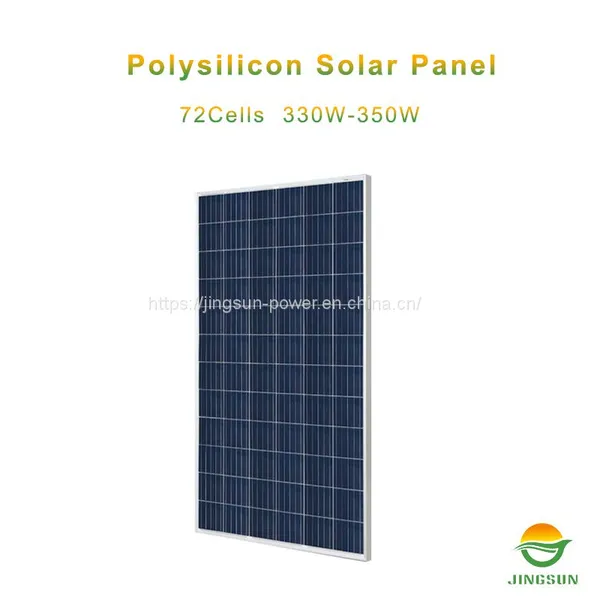

Help Center330W Poly Solar Panel
Related Products
Product Description
Type |
PERC, Poly |
Panel Efficiency |
20% |
Back Sheet Color |
White |
Front Glass |
3.2mm Anti-Reflective Tempered Glass |
Panel Size |
1956*992*40mm |
Solar Cell Size |
158.75*158.75mm |
No. of Cells |
72(6x12) |
Packaging Details |
Carton box, wooden pallet |
Warranty |
30 years |
Certificate |
TUV,CE,IEC,INMERTO,ISO |
Application Class |
Class A |
Frame |
Anodized Aluminium Alloy |
Junction Box |
IP68 ,3Diodes |
Product Advantages
1. High Efficiency: The Jingsun 330W-350W Poly Solar Panel has a high efficiency rate, resulting in more power output per unit area compared to other solar panels in the market.
2. Durability: Made with high-quality materials, this solar panel is designed to withstand harsh weather conditions such as heavy rain, wind, and snow, ensuring a long-lasting service life.
3. Versatility: With its sleek and compact design, the Jingsun 330W-350W Poly Solar Panel can be easily installed on a variety of surfaces such as rooftops, walls, and ground-mounted systems.
4. Low Maintenance: This solar panel requires minimal maintenance and is easy to clean, reducing the overall operational costs.
5. Cost-effective: With its high durability and efficiency, this solar panel provides a cost-effective solution for renewable energy generation, resulting in significant long-term cost savings for the user.
Electrical Parameters at STC
TYPE |
JAP72S-330 |
JAP72S-335 |
JAP72S-340 |
JAP72S-345 |
JAP72S-350 |
Rated Vaximum Power(Pmax) (W) |
330 |
335 |
340 |
345 |
350 |
Open Circuit Voltage（Voc) (V) |
45.83 |
46.10 |
46.39 |
46.68 |
46.97 |
Maximum Power Voltage(Vmp)(V) |
37.18 |
37.45 |
37.74 |
38.04 |
38.33 |
Short Circuit Current(lsc) (A) |
9.35 |
9.42 |
9.48 |
9.55 |
9.61 |
Maximum Power Curent(lmp) (A) |
8.88 |
8.95 |
9.01 |
9.07 |
9.13 |
Power Tolerance |
0~+5W |
||||
Temperature Coefficients of (lsc) |
+0.058%°C |
||||
Temperature Coefficients of (Voc) |
-0.330%°C |
||||
Temperature Coefficients of (Pmax) |
-0.400%°C |
||||
STC (Standard Testing Conditions) |
lrradiance 1000W/㎡, Cell Temperature 25°C, Spectra at AW1.5G |
||||
Electrical Parameters at NOCT
TYPE |
JAP72S-330 |
JAP72S-335 |
JAP72S-340 |
JAP72S-345 |
JAP72S-350 |
Rated Vaximum Power(Pmax) (W) |
244 |
248 |
252 |
256 |
260 |
Open Circuit Voltage（Voc) (V) |
43.57 |
43.77 |
43.96 |
44.16 |
44.16 |
Maximum Power Voltage(Vmp)(V) |
35.36 |
35.58 |
35.81 |
36.03 |
36.03 |
Short Circuit Current(lsc) (A) |
7.40 |
7.47 |
7.55 |
7.62 |
7.70 |
Maximum Power Curent(lmp) (A) |
6.90 |
6.97 |
7.04 |
7.11 |
7.18 |
Naximum System Voltage |
1000V/1500V DC(IEC) |
||||
Operating Temperature |
-40°C~+85°C |
||||
Maximum Series Fuse |
20A |
||||
Front Side Maximum Static Loading |
5400pa，1.5 |
||||
Rear Side Maximum Static Loading |
2400pa，1.5 |
||||
NOCT(Nominal Operating Cell Temperature) |
lrradiance 800W/㎡, Ambient Temperature 20°C, Winds peed 1m/s ,AW1.5G |
||||
