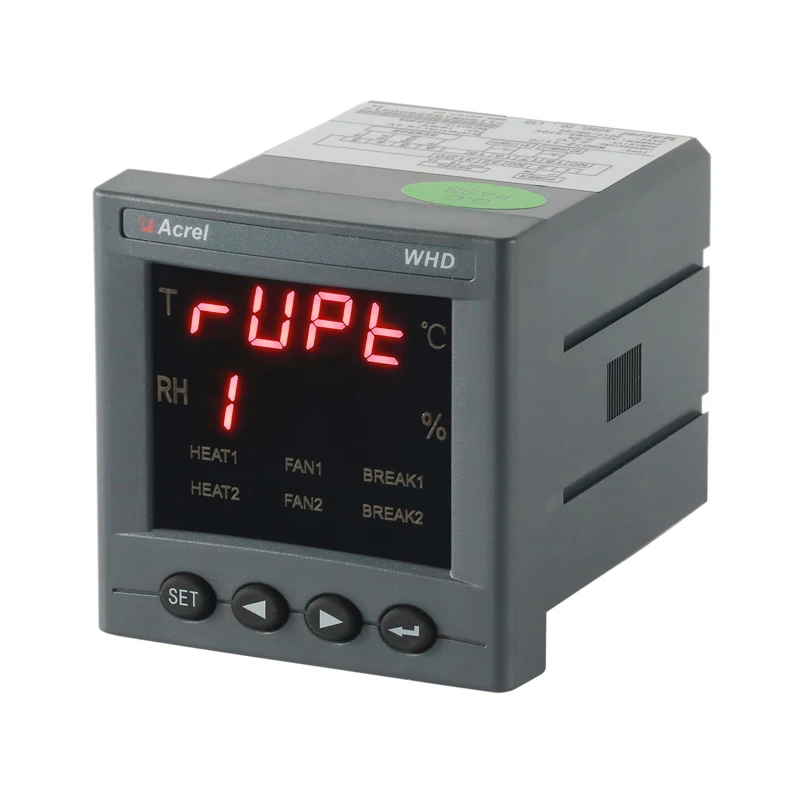

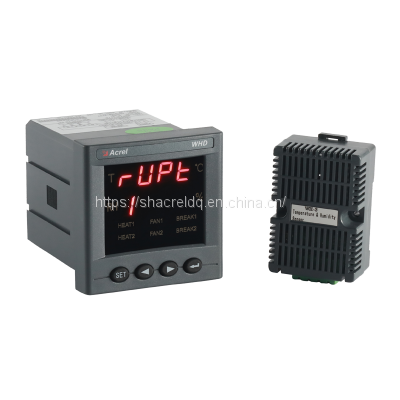

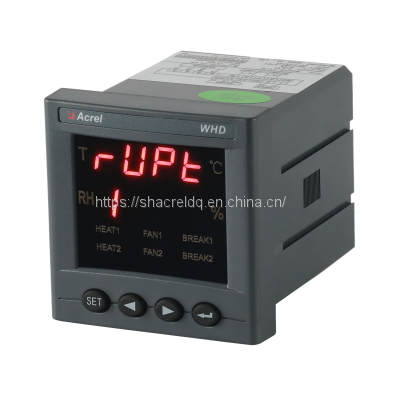

Acrel Top Quality WHD72-11 Series Temperature and Humidity Controller Measure One Channel Panel Meter With CE Approval Sensors
US$ 45 - 65
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
WHD72-11
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel Temperature and Humidity Controller With Sensor RS485 Communication For Electrical Distribution Cabinet Power MonitoringUS$ 45 - 65MOQ: 1 Piece -
Acrel WHD20R-11/C With RS485 Communication 35mm DIN Mount Intelligent Temperature and Humidity Controller High PrecisionUS$ 34.3 - 34.3MOQ: 1 Piece
-
Acrel WHD20R-22/J With Alarm Intelligent Temperature and Humidity Controller Measure Two Channel Temperature&humidity 35mm DIN MountUS$ 51.8 - 51.8MOQ: 1 Piece
-
Acrel WHD46-22/C With RS485 Communication Intelligent Temperature and Humidity Controller Used in High and Medium Voltage Switch Cabinet, Ring Network Cabinet, Terminal Box, EtcUS$ 76.3 - 76.3MOQ: 1 Piece
-
Acrel WHD72-22/M With Two Analog Output Measure Two Channel Temperature&humidity With Sensors Intelligent Temperature and Humidity ControllerUS$ 72.1 - 72.1MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
WHD72-11
Temperature Range
-40.0~+99.9℃
Usage
Industrial
Theory
Temperature Controller
Accuracy
±1%
Product Description
The controller for temperature and humidity is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or flashover etc.from humidity or condensation. These products meet the requirements of GB/T 15309-1994.
Details

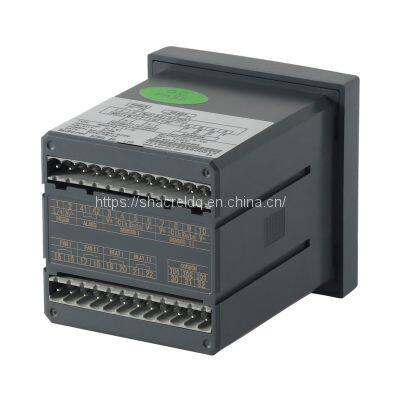

1-2 port：power supply ( AC/DC85-265v)
41-42 port: Alarm contact(When the heater is failure,working without as per the normal working condition, the corresponding indicator for heating-fault lights to give alarming.when the temperature exceeds the set value,the data of corresponding channel flashes. Reset when the meter itself fails).
15-16 port: the first Fan control(passive contact,connect with Fan)
17-18 port: the second Fan control(passive contact,connect with Fan)
19-20 port:the first Heating control(passive contact,connect with Heat equipment)
21-22 port:the second Heating control(passive contact,connect with Heat equipment)
30-31 port:RS485 communication port(modbus-rtu protocol)

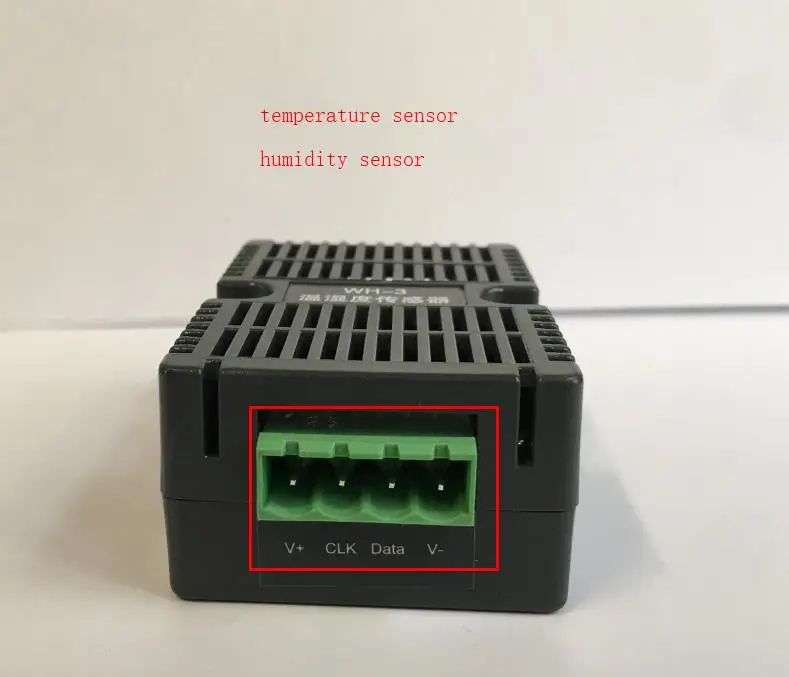

3-4-5-6 port:the first sensor (connect with temperature&humidity sensor. 3 connect to V+ ;4 connect to Clk;5 connect to Data;6
connect to V-)
7-8-9-10 port:the second sensor (connect with temperature&humidity sensor. 7 connect to V+ ;8 connect to Clk;9 connect to Data;10
connect to V-)
3-4-5-6 port:the first sensor (connect with temperature&humidity sensor. 3 connect to V+ ;4 connect to Clk;5 connect to Data;6
connect to V-)
7-8-9-10 port:the second sensor (connect with temperature&humidity sensor. 7 connect to V+ ;8 connect to Clk;9 connect to Data;10
connect to V-)
