Charcoal Briquettes Mesh Belt Dryer For Continuous Drying
Charcoal Briquettes Mesh Belt Dryer For Continuous Drying Introduction:

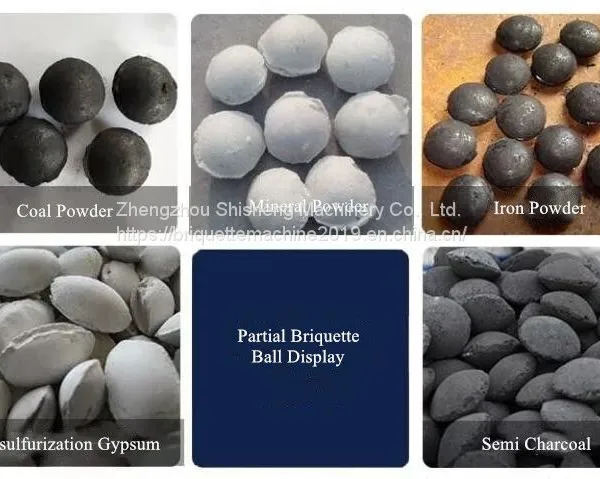

Charcoal Briquettes Mesh Belt Dryer For Continuous Drying is mainly used to briquette charcoal leftover, small pieces of charcoal, charcoal waste, etc. and make them be fully used to increase its economic value. The final briquette shape and size both can be customized from 25-60mm with oval, pillow and square shape as well as other favorite shapes in market. according to special requirement. In addition, the raw material range is very widely, like coal powder, fertilizer, salt, iron powder, and gypsum, chrome, copper, etc.
Charcoal Briquettes Mesh Belt Dryer For Continuous Drying Structure:
(1) We offer three types of pressure: spring disc, wedge block and hydraulic
Hydraulic type has larger pressure, even some uneasy shaping materials, such as dry powder, fertilizer, salt, etc, can also press in good shape, the pressure can be adjusted according to different raw material.
(2) Because charcoal powder is just a little light, easy to be molded. The roller material adopts 65Mn is enough. Normally, this kind of roller can use 8-10 month.
(3) We also produce 1-2t/h Charcoal Briquettes Mesh Belt Dryer For Continuous Drying, four-rollers charcoal briquette machine: in order to reduce density between charcoal powder and make best quality charcoal briquettes, we design four rollers charcoal briquette machine, which can press charcoal powder two times.
Charcoal Briquettes Mesh Belt Dryer For Continuous Drying Technical Parameter:
Model |
WD6 |
WD8 |
WD12 |
WD16 |
WD18 |
WD20 |
WD24 |
Mesh Belt Width(mm) |
600 |
800 |
1200 |
1600 |
1800 |
2000 |
2400 |
Drying Section Length(m) |
7-13 |
7-13 |
9-17 |
13-25 |
13-35 |
15-37 |
17-41 |
Transmission Power(kw) |
1.1-2.2 |
2.2-3 |
2.3-3 |
3-4 |
4-5.5 |
5.5-7.5 |
7.5-11 |
Layer |
1/3/5 |
||||||
Loading Capacity(kg/m2) |
90-200 |
||||||
Input Moisture(%) |
12-18 |
||||||
Output Moisture(%) |
1-5 |
||||||
Temperature(℃) |
Carbon Steel≤200, Stainless Steel≤280 |
||||||
Heating Source |
Hot Air(Coal, Oil, Gas, Power) |
||||||
Moving Speed(m/min) |
0.04-4 |
||||||
Matched Equipment |
Conveyor, Heating Furnace, Dust Collector, Draft Fan |
||||||
Remarks |
Special Customized Is Available |
||||||
