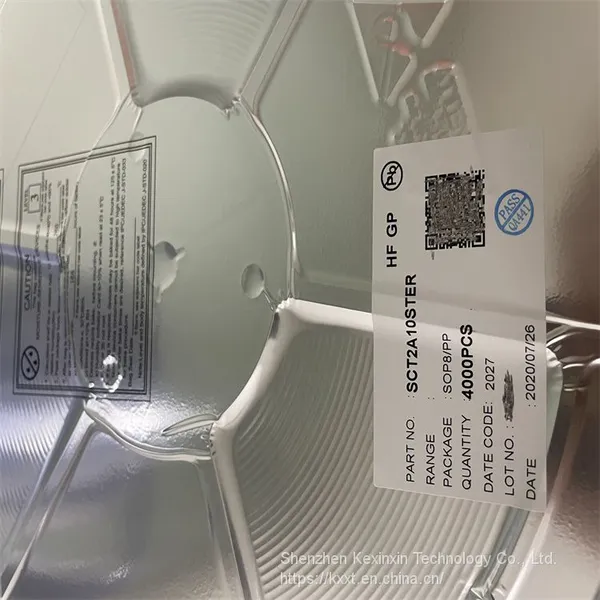

Help CenterSCT2A10STER SOP-8 SCT 4.5V-85V Vin, 0.6A, High Efficiency Synchronous Step-down DCDC Converter With Programmable Frequency
Related Products
-
SLA-12VDC-SL-A Songle ,27.6x32mmUS$ 0.5 - 2MOQ: 1 Piece -
SMBJ18CA-E3/52 Vishay General Semiconductor ESD Suppressors / TVS Diodes 18V 800W Bidir TransZorb 5% TolUS$ 0.02 - 0.25MOQ: 10 Pieces
-
SMBJ30CA-E3/52 Vishay General Semiconductor ESD Suppressors / TVS Diodes 30V 800W Bidir TransZorb 5% TolUS$ 0.02 - 0.33MOQ: 10 Pieces
-
SMBJ70CA-E3/52 Vishay General Semiconductor ESD Suppressors / TVS Diodes 70V 800W Bidir TransZorb 5% TolUS$ 0.02 - 0.32MOQ: 10 Pieces
-
SMF7.5A Littelfuse ESD Suppressors / TVS Diodes 200W 7.5V 5% Uni-directionalUS$ 0.02 - 0.28MOQ: 10 Pieces
SCT2A10
SILICON CONTENT TECHNOLOGY
4.5V-85V Vin, 0.6A, High Efficiency Synchronous Step-down DCDC Converter with Programmable Frequency
FEATURES
• Wide Input Range: 4.5V-85V • 0.6A Continuous Output Current • 0.8V ±1% Feedback Reference Voltage • Integrated 750mΩ High-Side and 500mΩ LowSide Power MOSFETs • Pulse Frequency Modulation (PFM) with 100uA Quiescent Current in Sleep Mode • 4ms Internal Soft-start Time • Adjustable Frequency 300KHz to 800KHz • Precision Enable Threshold for Programmable Input Voltage Under-voltage Lock Out Protection (UVLO) Threshold and Hysteresis • Cycle-by-Cycle Current Limiting • Over-Voltage Protection • Over-Temperature Protection • Available in an ESOP-8 Package APPLICATIONS • E-Tools • E-bike, Scooter • GPS Tracker DESCRIPTION The SCT2A10 is 0.6A synchronous buck converters with wide input voltage, ranging from 4.5V to 85V, which integrates an 750mΩ high-side MOSFET and a 500mΩ low-side MOSFET. The SCT2A10, adopting the constant-on time (COT) mode control, supports the PFM with typical 100uA low quiescent current which assists the converter on achieving high efficiency at light load or standby condition. The SCT2A10 features programmable switching frequency from 300 kHz to 800kHz, which provides the flexibility to optimize either efficiency or external component size. The SCT2A10 offers cycle-by-cycle current limit and hiccup over current protection, thermal shutdown protection, output over-voltage protection and input voltage under-voltage protection. The device is available in an 8-pin thermally enhanced SOP-8 package. REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Revision 1.0: Release to Market

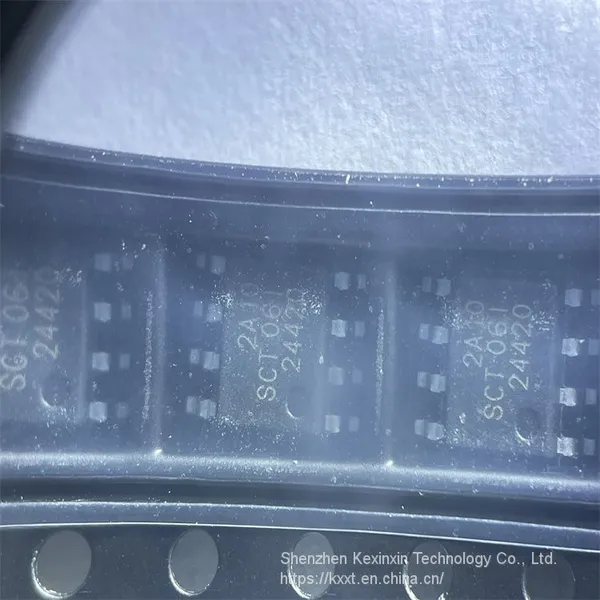

PACKAGE MARKING： 2A10
PACKAGE DISCRIPTION：8-Lead Plastic ESOP
Send Inquiry to This Supplier
