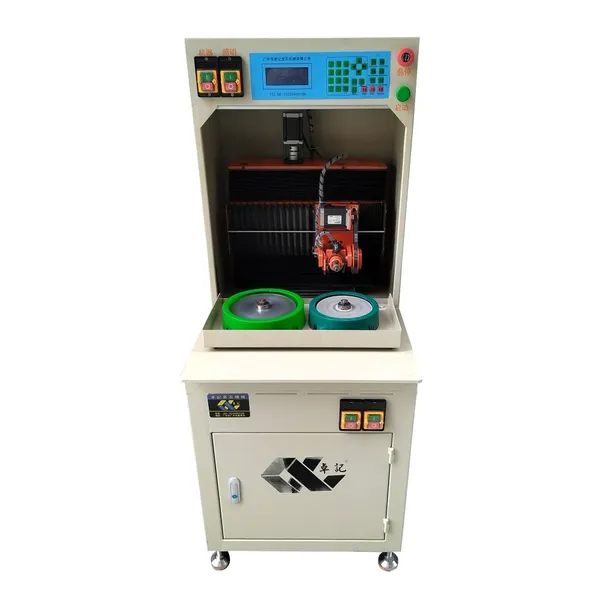

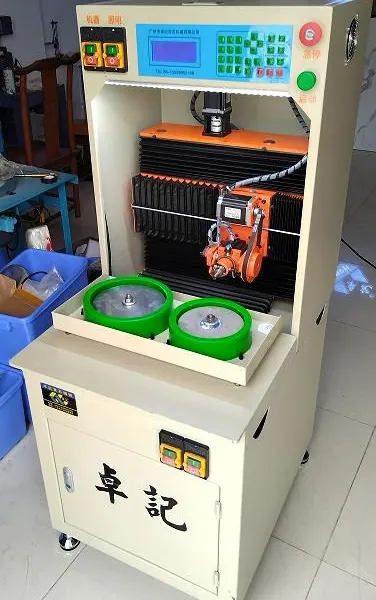

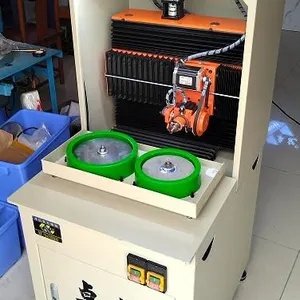

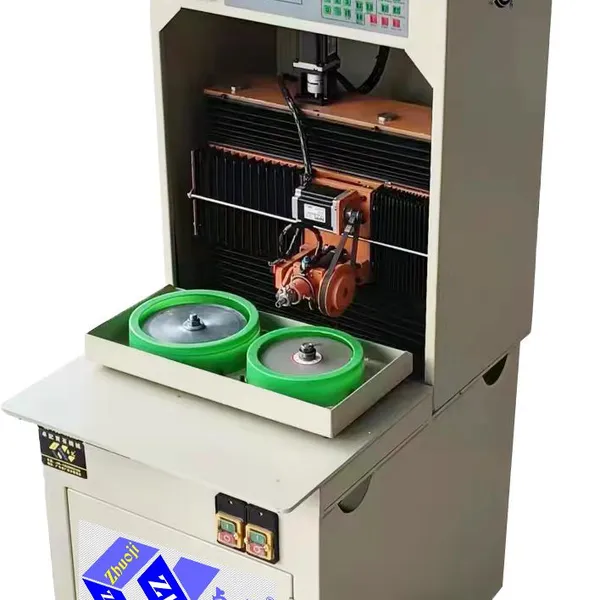

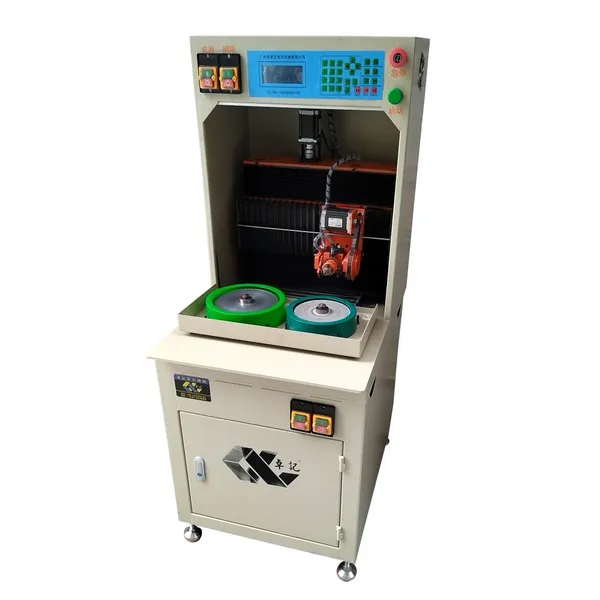

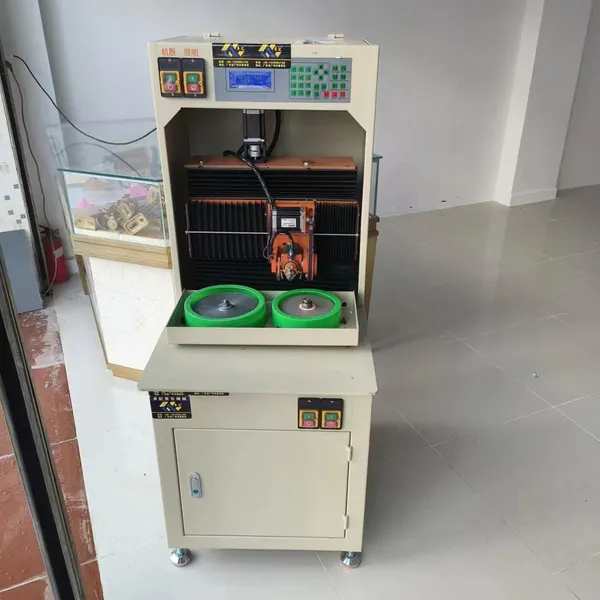

Xiongxing CNC Gemstone Faceting Machine
Model: XX-280D
Serial Number: 810501688
Product Overview
Xiongxing XX-280D is a high-end CNC gemstone faceting machine that integrates grinding and polishing functions. It achieves full automation of gemstone faceting processing through a precise five-motor linkage system, enabling fast and precise processing of various geometric shapes of gemstones. This machine has an intuitive operation and excellent efficiency, making it an ideal equipment for the gemstone processing industry.
II. Core Functions and Advantages
Integrated Processing: The grinding and polishing processes are completed in one step, without the need to switch equipment halfway, greatly improving production efficiency.
Wide Shape Support: Pre-set 50 gemstone shape programs, supporting round, oval, square, rectangular, triangular, pear-shaped, heart-shaped, teardrop-shaped, marquise-shaped, etc., and supports custom shapes.
Efficient and Precise: Approximately 2 minutes to complete the processing of one workpiece, high precision, good consistency.
Easy to Operate: Chinese graphical interface, clear process guidance, one operator can manage two machines simultaneously.
· Multi-language System: Equipped with an English operating system, meeting the needs of international users.
· Stable and Durable: Strong structure, reliable key components ensure long-term stable operation.
III. Brief Operating Procedure
1. Power On: Connect power supply and start the equipment.
2. Selection: Click [Menu] → Select [Gemstone Type] → For example, "Round".
3. Parameter Adjustment: Enter [Parameter View and Modification], adjust various parameters as needed.
4. Confirm Processing: Set the current settings as the processing type.
5. Detail Settings: Check and set [Top Surface Parameters], [Abrasive Parameters], etc. one by one.
6. Layer Parameter Example (for Layer 01):
Operation Mode: Enabled
Y5 Operation Mode: Forward and Reverse
Disk Positioning Mode: Single Direction
· Speed Settings: Set as needed
7. Start Processing: After parameter settings are completed, start the equipment to begin automatic processing.
IV. Detailed Explanation of Motor Functions
This machine operates through the coordinated work of five stepper motors, controlling different dimensions of movement:
Motor Function Description Movement Direction Definition
This automatic machine operates with 5 stepper motors, and the functions of each motor are as follows:
y1 Motor Function: Responsible for the rotation position (like an octagonal hand or mechanical hand)
y2 Motor Function: Responsible for the angle or force of downward sanding (distance from the disk, the larger the number, the lower the direction)
y3 Motor Function: Responsible for swinging left or right movement of the machine head, that is, when sanding, adjust (the larger the number, the more towards the polishing disk direction)
y4 Motor Function: Responsible for raising and lowering (like the lifting platform of an octagonal hand). (The larger the number, the more upward)
y5 Motor Function: Responsible for forward and backward movement. (The larger the number, the more forward)
V. Technical Specifications
Processing Diameter Range: 2 mm - 30 mm
· Single-piece Processing Time: Approximately 2 minutes
· Spindle Speed: 2800 rpm
· Grinding Disk/Polishing Disk Size: 7 inches (170mm)
· Motor Power: 250W
· Working Voltage: 220V
· Dimensions: 80 * 56 * 139 cm (Length * Width * Height)
· Equipment Weight: 135 kg
Gemstone Faceting Processing Steps: 3 steps
Step 1: Raw Material → Cutting → Shaping → Semi-finished Product Polishing → Follow-up
Step 2: Crown Top Surface Processing:
Apply Stone → Press the Table Surface → Plate Position Grinding Sand → Plate Position Polishing → Front Surface Polishing → Follow-up Bottom Surface (Pavilion)
Step 3: Bottom Surface (Pavilion) Processing:
→ Flip the Bottom Surface (Pavilion) → Leave the Edge → Bottom Surface (Pavilion) Panel Sanding → Bottom Surface (Pavilion) Polishing → Remove Stone → Ultrasonic Cleaning
Mechanical Series: Cutting machine → Shaping machine / Universal machine → Vibrating polishing machine → Stone adhesive machine → Pressing table machine → Edge trimming machine → CNC faceting machine → Stone remover → Ultrasonic cleaning machine
Auxiliary machinery:
Blanking machine → Punching machine → Pressing machine → Manual faceting machine
