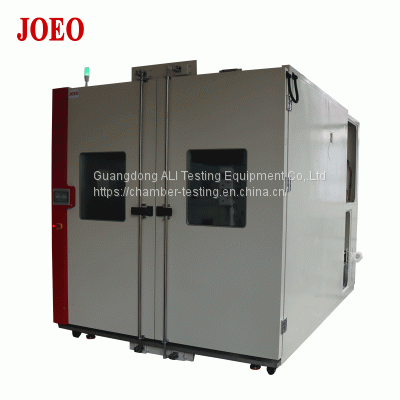

Help Center380V Walk In High And Low Temperature Wet And Hot Laboratory
Related Products
-
Stability Test OEM Accelerated Aging Chamber High And Low Temperature HumidityNegotiableMOQ: 1 Bag -
Food Constant Temperature And Humidity Climate Test Chamber 380VACNegotiableMOQ: 1 Bag
-
Photo Stability Testing Equipment Walk In Stability Test ChamberNegotiableMOQ: 1 Bag
-
Horizontal Thermal Shock Test ChamberNegotiableMOQ: 1 Bag
-
PID Control Small Climatic Test Chamber Rustproof MultifunctionalNegotiableMOQ: 1 Bag
Equipment Overview:
It is used to make the test of high and low temperature, damp and heat tests on electrical, electronic, mechanical and large parts, semi-finished products, and finished products. To test the quality and productivity of products, spare parts under simulated temperature and humidity conditions.
If you need more models about our test equipment, please reference our chamber-testing（.）com
Installation environment:
Temperature: 0℃～35℃, relative humidity: ≤85%, air pressure: 86kPA～106kPa.
Please confirm that the installation site should be level, well ventilated, and without strong vibration around the equipment. There has no strong electromagnetic filed, without flammable, explosive, corrosive substances and dust around this equipment. It should leave enough space for use and maintenance.
Technical Parameters:
| Standard volume(m³) | 8 | 12 | 80 | 125 |
Internal chamber size (W*H*D) m | 2×2×2 | 3×2×2 | 4×4×5 | 5×2×5 |
| Temperature range | The highest test temperature: 80℃, 120℃; the lowest test temperature: -60℃, -40℃, -20℃, 0℃ | |||
| Humidity range | 30%～98%RH | |||
| Temperature variation | ±2℃ | |||
| Temperature uniformity | ±2℃ | |||
| Temperature fluctuation | ±0.5℃ | |||
| Humidity variation | ±5.0％RH | |||
| Heating rate | ≥2.5°C/min (Non-linear, no load) | |||
| Cooling rate | Average 1.0℃/min | |||
| Internal chamber material | SUS304 stainless plate | |||
| External chamber material | A3 cold-rolled steel plate with electrostatic double-sided spraying /SUS304 stainless steel | |||
| Insulation material | Rigid polyurethane foam | |||
| Cooling method | Water-cooled (adopt German Bitzer fully enclosed compressor or German Bock semi-hermetic compressor) | |||
| The refrigerant | R404a, R23 | |||
Temperature and Humidity sensor | A grade PT100 platinum resistance | |||
| Heater | Nickel-chromium alloy electric-heating heater | |||
| Humidifier | Adopt external humidification method | |||
| Power supply | 380V±10%V；50Hz；or match client's local power supply re | |||
| Protection System | Power supply phase loss and phase sequence error protection, water shortage automatic alarm protection, leakage protection, heater over temperature protection, heater short circuit and other overcurrent protection | |||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Temperature Humidity Walk In Environmental Test Chambers For customzied , any question just feel free to let us know,thank you
