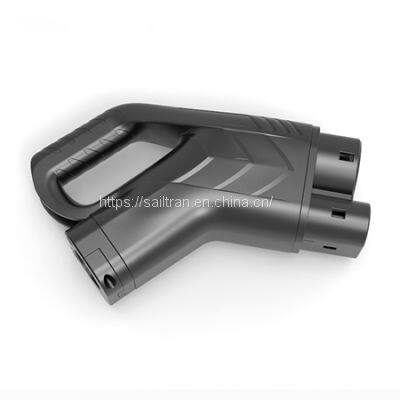

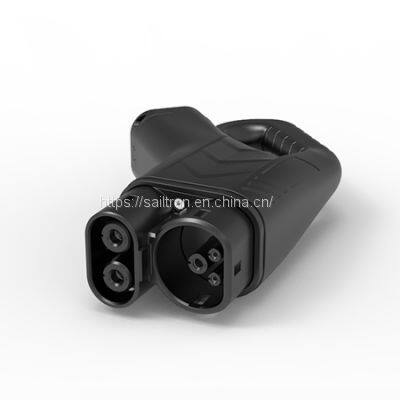

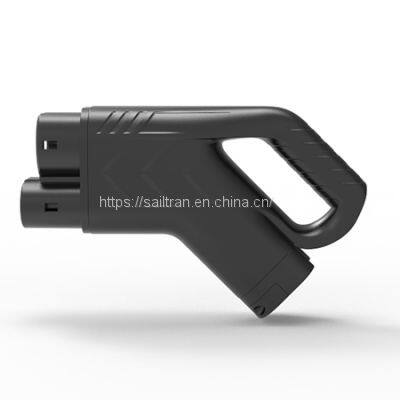

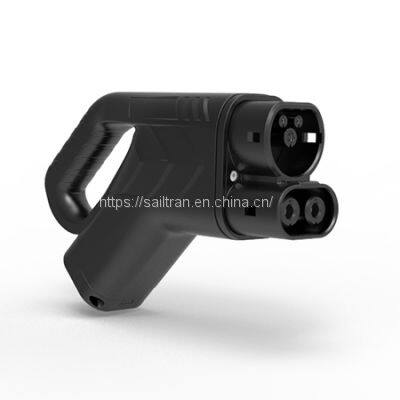

Sailtran CCS 2 Plug(Combined Charging System plug) / CCS2 Charging Cable , suitable for DC fast charging of electric vehicles, can quickly charge Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles(EV) . With direct current (DC) through the CCS 2 Socket, for installation in electric vehicle charging stations ( EVSE).
CCS Type 2 supporting AC & DC Charging standards of Europe/ Australia and increasingly global standards.
Complete current specifications, 200A/250A optional
Comply with the relevant standards and requirements of IEC62196-3, and develop and produce based on IATF 16949 automotive standards and ISO 9001 standards.
-
Replaceable DC power terminals reduce maintenance costs.
Adopting the third-generation design concept, the appearance is beautiful. The handheld design conforms to the principles of ergonomics and feels comfortable in the hand.
CCS2 Charging cable for every application, from garages to charging areas, in custom lengths.
The cable is made of XLPO material and TPU sheath, which improves the bending life and wear resistance of the cable. The wire diameter is small, and the overall weight is light. The better material on the market at present, complies with the EU standard.
The protection level of the product reaches IP55 (working state). Even in harsh environments, the product can isolate water and enhance safe use.
Customer company logo can be attached if required. Provide OEM/ODM services, which is beneficial for customers to expand the market.
Sailtran's CCS 2 plug/CCS2 charging cable provides you with lower costs, faster delivery, the best quality, and better after-sales service.
Notice:
1. The CCS 2 plug conforms to the standard IEC62196.3-2022, and must be matched with a CCS 2 socket conforming to the IEC62196 standard.
2. After charging, ensure that the ccs2 charging cable / CCS 2 plug is placed in a suitable charging plug empty seat, that is, according to the requirements of the IEC61851-1 standard, an empty seat that can provide the minimum protection level of IP24 during the entire time period between charging.
Parameters of 200A/250A CCS 2 Plug Connector / CCS2 Charging Cable| Electrical performance | |||||
| Rated current |
DC+/DC-: 200A; PP/CP: 2A Max DC+/DC-: 250A; PP/CP: 2A Max |
||||
| Rated voltage | DC+/DC-:1000V DC； PP/CP 30V DC | ||||
| Withstand voltage | Between DC+, DC-, PE: 3000V AC (room temperature); Between PP and CP: 500V AC (room temperature) | ||||
| Insulation resistance | ≥100MΩ (DC+&DC-&PE, DC 1000V), (CP,PP, temperature sensing line, DC 500V) | ||||
| Temperature rise | |||||
| Temperature Sensor | 2×PT1000 | ||||
| Charging standard | CCS2 | ||||
| Cable/wire | |||||
| Cable length | 3 m ±45 mm (customizable) | ||||
| Wiring standards | IEC62893 & EN50620 | ||||
| Cable structure |
2*70mm²+1*35mm²+6*0.75mm² (200A); 4*35mm²+1*16mm²+1*10mm²+1*0.75mm²(P)+5*0.75mm² (250A); |
||||
| Cable outer diameter |
φ32±0.5 (200A) φ32.5±0.5 (250A) |
||||
| Sheath material | TPU | ||||
| Mechanical behavior | |||||
| Insertion/extraction life |
> 10000 times |
||||
| Insertion and withdrawal force | |||||
| Environment performance | |||||
| Protection level | IP55 | ||||
| Ambient temperature | -40℃~50℃ | ||||
| Salt spray level | 96H | ||||
| Primary material | |||||
| Shell part | PC | ||||
| Insulator part | PA | ||||
| Seal part | Silicone Rubber | ||||
| Contact parts | Silver Plated Copper Alloy | ||||
| Flame retardant level | UL94 V-0 | ||||
