Customized Design Interface RS485 ADL3000 35mm DIN Rail Energy Metering Devices With Modbus Connection 3 Phase Energy Meter
US$ 75 - 140
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADL3000-E/CTC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADL3000-E Three-phase Multi-function DIN Rail Energy Meter Current Rating 3x10(80)A 3x1(6)A LCD Display Smart Energy MeterUS$ 75 - 140MOQ: 1 Piece -
Acrel ADL10-E 1P Single Electric Energy Meter Single Total Active Energy MeasureUS$ 17.5 - 17.5MOQ: 1 Piece
-
China Manufacturer 8 Digits LCD Display Single Phase Energy Meter Kwh Electrical Metering Equipment ADL100-ETUS$ 35 - 41MOQ: 1 Piece
-
Din Rail Plastic Enclosure Low Power Consumption Energy Meter LCD Display Electrical Metering Equipment For Sale ADL100-ETUS$ 35 - 41MOQ: 1 Piece
-
ADL100-ET High Quality Smart Automatic Class 1 Accuracy of Measuring Smart Electric Watt Energy Monitor MeterUS$ 35 - 41MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ADL3000-E/CTC
Phase
Three Phase
Operating Temperature
-40℃～99℃
Dimensions
127*88*70mm
Display Type
Digital Only
Accuracy Class
0.5S
Measuring Energy Range
0-99999.9kwh

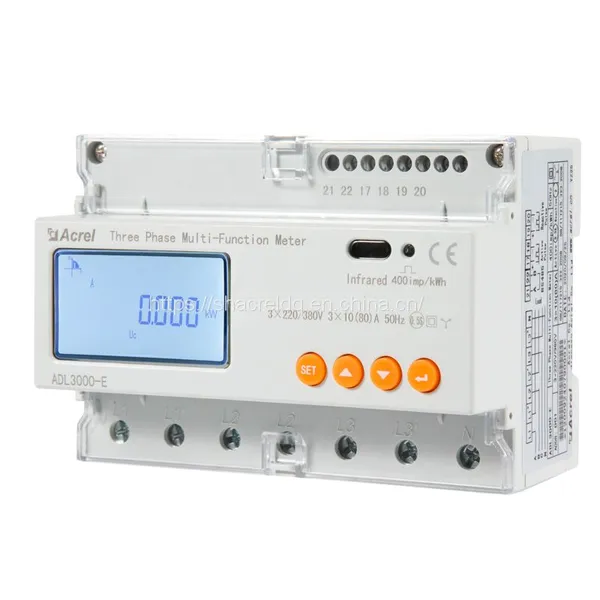

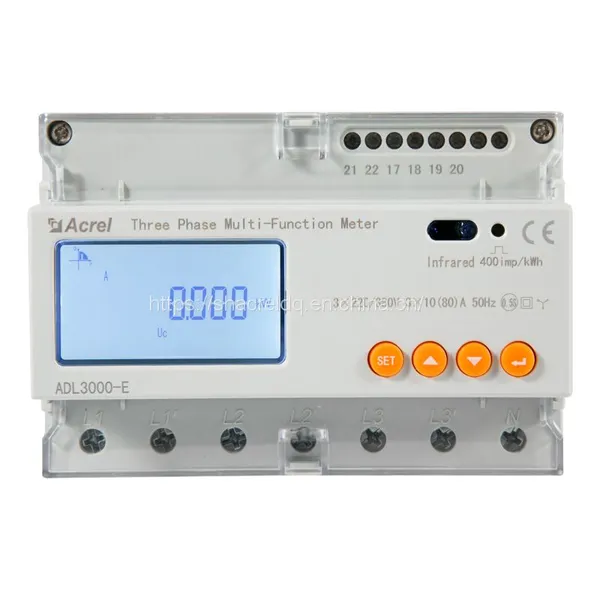

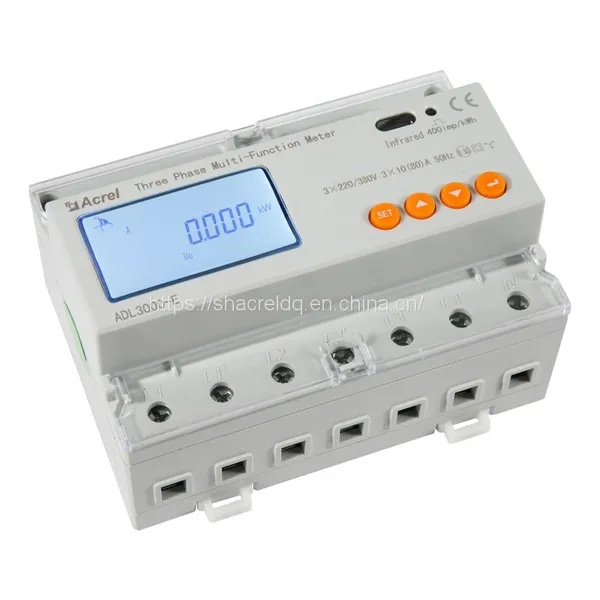

ADL3000 Three-phase Multi-function DIN Rail Energy Meter
ADL3000 is a smart meter designed for power supply systems, industrial and mining enterprises, and utilities to calculate electricity consumption and manage electric demand. It features high precision, a small size, and simple installation.
Picture |
Specification |
Optional |
|
● Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
● Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
● Current Rating: 3x10(100)A; 3x1(6)A
● Frequency: 45~65Hz
● Communication: RS485 (MODBUS-RTU) and Infrared
● Display: LCD (8 digits)
● Dimension: 127*88*70mm (L*W*H)

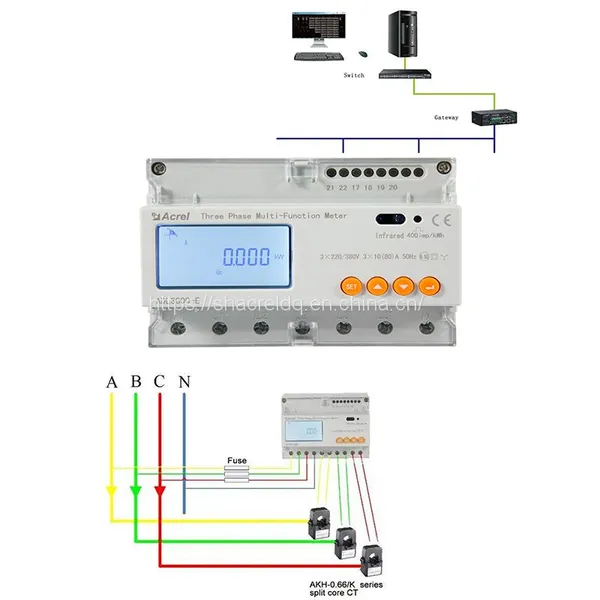

● Wiring: 3-phase 4wire; 3-phase 3-wire

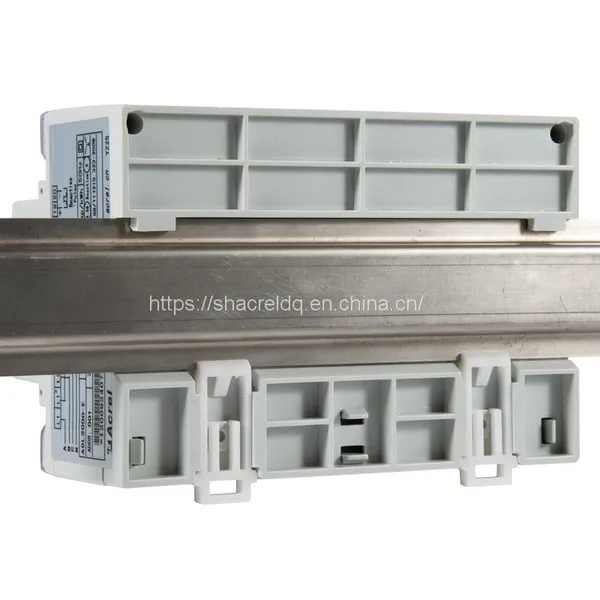

● Installation: 35mm DIN Rail
● Standard&Certificate: IEC; CE; EAC
|
● 1DO/1DI ● Secondary RS485 (MODBUS-RTU)
● Multi-rate: Spike, Peak, Valley, and Flat kWh
● three channels temperature measurement(NTC)
● 2-31st harmonic
|
