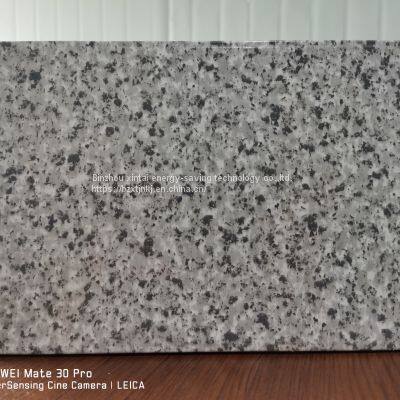

Help CenterBinzhou Xintai High Efficient VIP Panel Vacuum Insulation Decorative Panel Vacuum Insulation Board for Insulation and Decoration
Related Products
-
Binzhou Xintai VIP Panel Vacuum Insulation Panels Vacuum Insulation Boards for Building ApplicationsUS$ 30 - 50MOQ: 500 Square Meters -
Binzhou Xintai Vacuum Insulation Panel Super Thin Panel Refrigerator and Freezer InsulationUS$ 30 - 50MOQ: 500 Square Meters
-
Binzhou Xintai Ultrathin Vacuum Insulation Panel Vacuum Insulation Board Vip Panel Board for Freezer Refrigerator Insulation Saving SpaceUS$ 30 - 50MOQ: 500 Square Meters
-
Binzhou Xintai Vacuum Insulation Panel Vacuum Insulation Board Vip Panel Board Vacupanel for Building InsulationUS$ 30 - 50MOQ: 500 Square Meters
-
Binzhou Xintai Vacuum Heat Insulation Panel Vacuum Heat Insulation Board Vip Panel Board Vacupanel for Building Heat InsulationUS$ 30 - 50MOQ: 500 Square Meters
Binzhou xintai Fiber Glass Insulation Vacuum Insulation Panel VIP board vacuum panel for refrigerators freezers
refrigerated containers building construction thermal insulation
Binzhou xintai high efficient VIP panel vacuum insulation decorative panel Vacuum insulation board for insulation and decoration
Vacuum Insulation panels (VIP) in English Vacuum Insulation Panel for short, is one of the Vacuum thermal Insulation material, by filling the composite core material and Vacuum protection surface layer, and it effectively avoid caused air convection heat transfer, thus can greatly reduce the thermal conductivity, is less than 0.004 w/m.k, and does not contain any ODS material, has the characteristics of environmental protection and high efficiency and energy saving, is currently the world's most advanced and efficient heat preservation material.
Application:
VIP is mainly used for thermal insulation, such as household refrigerator, yacht refrigerator, mini refrigerator, car refrigerator, cryogenic freezer, electric water heater, vending machines, freezers, cold storage container, refrigerated vehicles, cold stores, aerospace, shipping and medical incubators,building wall thermal insulation, LNG storage ,pipe insulation and transportation, especially suitable for fields such as building energy-saving renovation projects.
Specification industrial VIP:
Specification |
Performance index |
|
Thermal conductivity W/(m·K) |
Industrial use |
0.002 |
Construction use |
0.008 |
|
Dimensional stability thickness(mm) |
thickness |
±1.5 |
Length,width |
±3 |
|
Length |
＜1800mm |
|
Width |
＜800mm |
|
Thickness |
10-30mm |
|
Vertical and surface tension strength(Kpa) |
＞80 |
|
Expansivity(%) |
＜10 |
|
Durability thermal conductivity W/(m·K) |
＜0.008 |
|
Combustibility |
A-level |
|
Note:Customized products can be provided according to customer requirements.
