Product Introduction

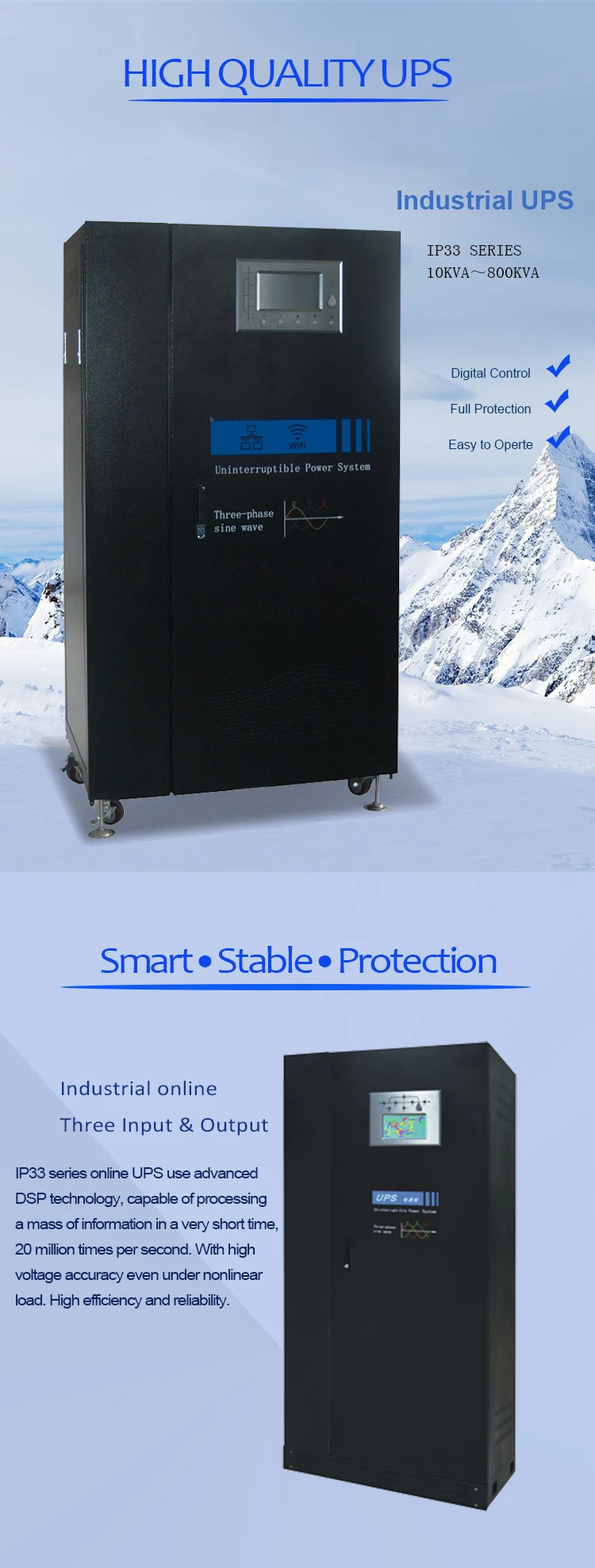

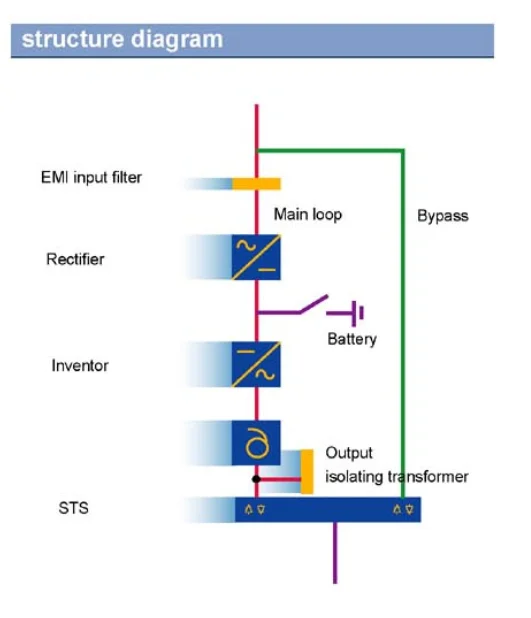

IP series UPS is double conversion online type, adopt with advanced IGBT power component, high performance SPWM inverter, intelligent multi-mode battery management. Input EMI filter, digital control, output with isolation transformer, to resist of damage from high power load when power on/off. Pure sine wave due to output with inductance, capacitance, L/C filter.
Product Features
- 10KVA-1000KVA capacity, for industrial use.
- Online design, pure sine wave of output, free from wave distortion.
- Input with rectifier module, output with inverter module, SCR module, humanized maintenance.
- Redundant design for key circuit, to improve the system reliability.
- Cold start, automatic restart function.
- Reliable electromagnetic compatibility.
- Friendly human-computer interface with LCD touch screen.
- Smart local and remote monitoring function, RS232 port, compatible with SNMP.
- Self detection and protection functions, high resistance ability of load impact, over current and over circuit protection functions.
Product Specifications
Rectifier Input | |
Voltage |
3*380V±25% |
Frequency |
50Hz±5% |
Rectifier input part |
With input reactor |
Grounding mode |
TN-S |
Ground resistance |
≤1Ω |
Rated DC voltage |
384V |
Inverter Part | |
Output voltage |
three-phase five-wire system AC 380±1% |
Frequency |
Same with local electricity frequency when normal; 50±0.05Hz under battery supply mode |
Voltage stability rate under 100% three phase imbalance load |
≤2% |
Waveform distortion |
THD≤2.5% under linear load |
Static bypass transfer time |
0 |
System efficiency |
>92% |
30 minutes overload ability |
110% |
15 minutes overload ability |
120% |
1 minute overload ability |
150% |
Inverter output part |
With isolation transformer for output |
Total Data | |
Maintenance bypass |
Provide maintenance bypass with no switching time |
LCD Display |
Three phase input and output voltage, frequency, load ratio, battery voltage, battery charge/discharge current, inside temp, calendar |
Alarm function |
Yes |
Connection type |
RS232, comply with SNMP, remote control |
Protect function |
Short circuit, over load, over-temp, battery low voltage, over voltage, low voltage |
Electromagnetic compatibility |
Comply with GB9254, A level |
Noise |
|
Cooling method |
Fan |
Operation temperature |
0~+40℃ |
Ambient humidity |
0~93% |
IP rating |
IP20 |
MTBF |
300 thousand hours |
