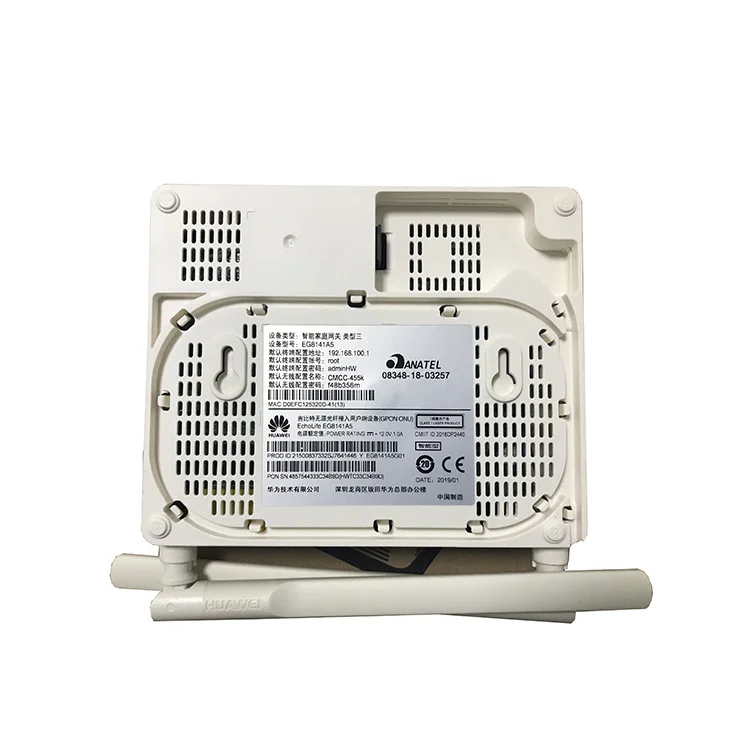

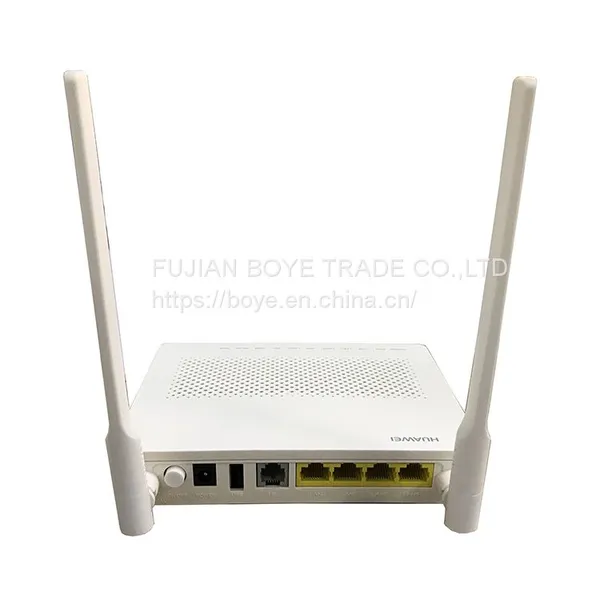

Huawei XPON EG8141A5 GPON ONU ONT 1GE+3FE+1TEL+USB+WIFI 5dBi 2.4GHz New Original Green Connector HG8546M HG8010H HG8310M

New Original Huawei XPON GPON ONU Wireless Router 1POTS 1GE 3FE 2.4G Wi-Fi EG8141A5 Optical Network Unit

Product Highlights

1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.

2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.

5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.

Maintenance features

*Local management using Web and remote management using TR069 and OMCI

*Optical power monitoring

*802.1ag Ethernet OAM

*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation

Green engery-saving features

*Dynamic power consumption adjustment

*With a backup battery, the guaranteed services can be selected flexibly

GPON features

*Class B+ optical module

*Security authentication mode: SN,
password or SN+password

*Upstream/downstream FEC

Routing features

*NAT function

*Internet, IPTV and VoIP services are automatically bound to ONT ports

*Virtual server, port trigger, DMZ,and DDNS

Reliability features

*Dual systems for software protection

*Type B protection and rogue ONT detection

*Lithium battery backup and backup battery monitoring

Voice features

*SIP and H.248 protocols

*Media stream and signaling stream separation
