Binzhou xintai Fiber Glass Insulation Vacuum Insulation Panel VIP board vacuum panel for refrigerators freezers
refrigerated containers building construction thermal insulation

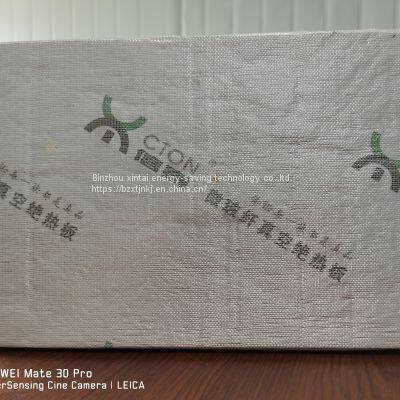

Binzhou xintai building insulation vacuum insulation panel for refrigerator appliances
Vacuum Insulation panels (VIP) in English Vacuum Insulation Panel for short, is one of the Vacuum thermal Insulation material, by filling the composite core material and Vacuum protection surface layer, and it effectively avoid caused air convection heat transfer, thus can greatly reduce the thermal conductivity, is less than 0.004 w/m.k, and does not contain any ODS material, has the characteristics of environmental protection and high efficiency and energy saving, is currently the world's most advanced and efficient heat preservation material.
Application:
VIP is mainly used for thermal insulation, such as household refrigerator, yacht refrigerator, mini refrigerator, car refrigerator, cryogenic freezer, electric water heater, vending machines, freezers, cold storage container, refrigerated vehicles, cold stores, aerospace, shipping and medical incubators,building wall thermal insulation, LNG storage ,pipe insulation and transportation, especially suitable for fields such as building energy-saving renovation projects.
Specification industrial VIP:
Specification | Performance index | |
Thermal conductivity W/(m·K) | Industrial use | 0.002 |
Construction use | 0.008 | |
Dimensional stability thickness(mm) | thickness | ±1.5 |
Length,width | ±3 | |
Length | ＜1800mm | |
Width | ＜800mm | |
Thickness | 10-30mm | |
Vertical and surface tension strength(Kpa) | ＞80 | |
Expansivity(%) | ＜10 | |
Durability thermal conductivity W/(m·K) | ＜0.008 | |
Combustibility | A-level | |
Note:Customized products can be provided according to customer requirements
